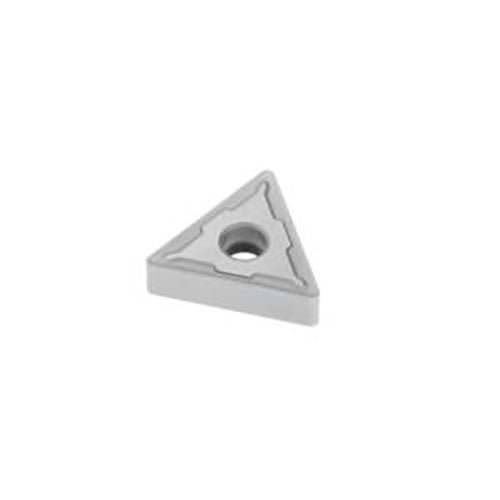

Seco Turning Insert T Shape Code 6.35 x 1.2 x 15.88mm G Insert Type - M5 Grade TP2501 ± 0.13/± 0.05mm Tolerance TNMG270612-M5,TP2501 10pcs

Turning Insert TNMG Insert Style - M5 Grade TP2501 6.35mm Insert Thickness (S)

• T shape code.
• G insert type, with hole and chip breaker on both faces.
• TP2501 insert grade.
• 6.35mm insert thickness (S).

TP2501 Insert Grade

• Duratomic® grade.
• Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons.
•  Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

• The choice for roughing by means of double-sided inserts.
• Intended for demanding operations at high feed rates in steel.
• Stainless steel and cast iron.
• Combines high edge strength with comparatively low cutting forces.
• Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
