Seco Turning Insert T Shape Code G 91388 | AIMS Industrial

***Illustrations shown may vary from actual product***

Seco Turning Insert T Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MF1 Grade CP500 ± 0.13/± 0.05mm Tolerance TNMG160408-MF1,CP500 10pcs

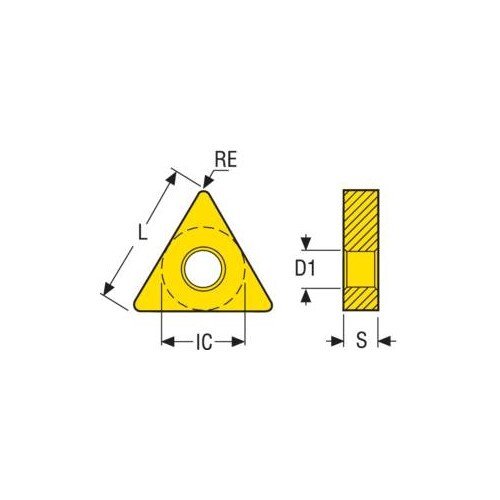

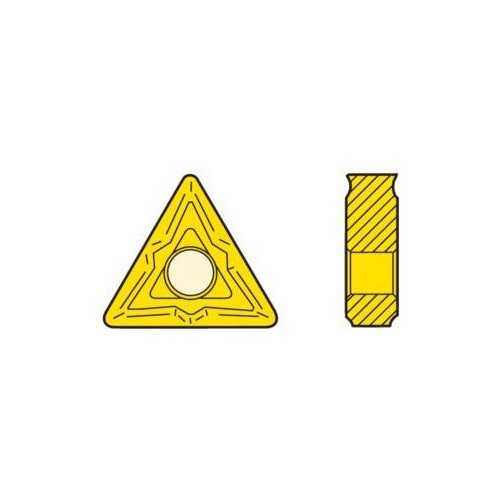

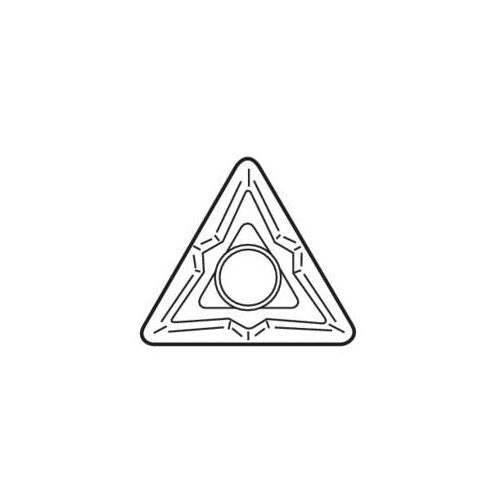

Turning Insert TNMG Insert Style - MF1 Grade CP500

• C shape code.
• G insert type, with hole and chip breaker on both faces.
• CP500 insert grade.

CP500 Insert Grade

• Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
• Especially suitable in intermittent cuts.
• (Ti, Al)N + TiN.

MF1 Chipbreaker Programme

• Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
• Type ..GG insert has a sharp, precision ground edge.
• Type ..MG insert has a lightly honed cutting edge for increased strength.
• MF1 is intended for use in semi-finishing and finishing applications.
• Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
