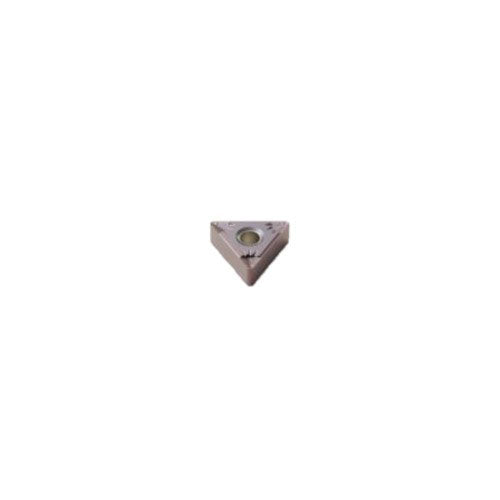

Turning Insert TNMG Insert Style - MF5 Grade TH1000: TNMG160404-MF5 TH1000

SKU: A0116868 | Model: 02793483

Seco Turning Insert T Shape Code 4.76 x 0.4 x 9.53mm G Insert Type - MF5 Grade TH1000 ± 0.13/± 0.05mm Tolerance TNMG160404-MF5,TH1000 10pcs

Turning Insert TNMG Insert Style - MF5 Grade TH1000

T shape code.

G insert type, with hole and chip breaker on both faces.

TH1000 insert grade.

TH1000 Insert Grade

A very hard super micro-grain grade intended for partly hardened steel components as well as generally workpiece materials such as superalloys and due to remarkable edge toughness it also provides high performance in interrupted cuts and hard-surface removal.

Ti-Al-Si-N nanolaminate coating.

MF5 Chipbreaker Programme

Chipbreaker intended for medium finishing of steel and stainless steel at high feeds.

Very easy cutting and open geometry.

Indicative machining range: f = 0,2–0,8 mm/rev, ap = 0,2–2,7 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
