Seco TNMG270612-MR7 TP2501 Turning Insert
Available

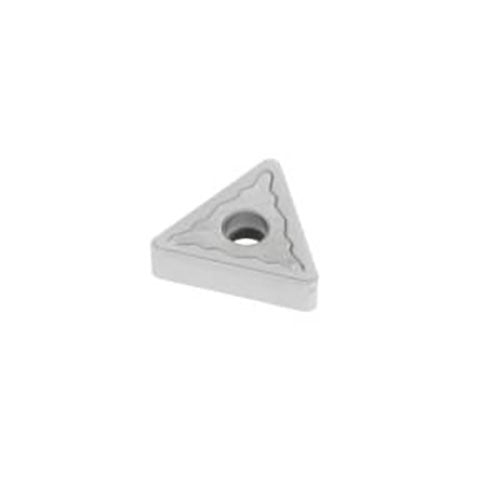

Genuine Seco triangular turning insert, Grade TP2501 with MR7 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | triangular (ISO shape code T) |
| Chipbreaker | MR7 |
| Insert Details | T shape code. G insert type, with hole and chip breaker on both faces. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steel as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the MR7 Chipbreaker
The strongest chipbreaker for double-sided inserts. The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert. The chipbreaker has a wide negative T land, which gives high edge strength. Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
