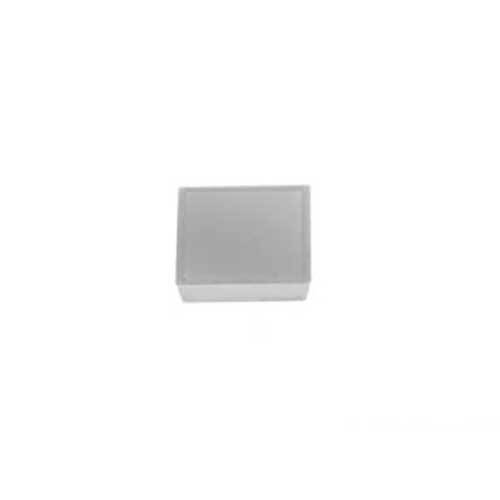

Seco SPMR090308-F1,TP2501 Turning Insert
The price shown is for the pack.
Available
This is the Turning Insert TP2501 Grade (SPMR).
Genuine Seco square turning insert, Grade TP2501.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | square (ISO shape code S) |
| Insert Details | TP2501 grade. S, Insert Shape Code (SC). 9, Insert Seat Size Code (SSC). |
About Grade TP2501
Carbide CVD. Duratomic® technology coated grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About Seco Turning Inserts
Seco Turning Insert Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses. We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

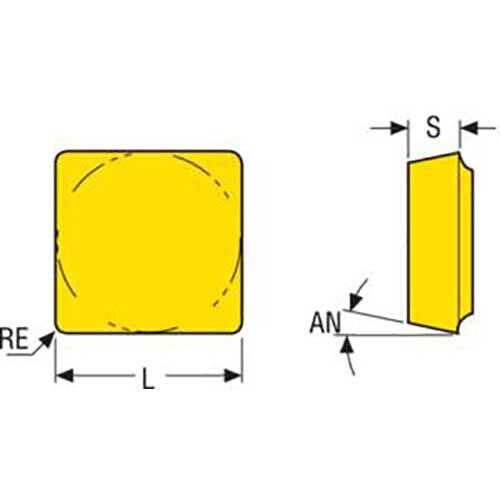

Product details
| Model | 02960756 |
|---|---|
| Corner Radius (RE) mm | 0.8 |
| Insert Included Angle (epsr) Deg | 90.0 deg |
| Grade Type | Carbide CVD |
| Theoretical Cutting Edge Length (L) mm | 9.52 |
| Cutting Edge Count (CEDC) | 4 |
| Designation | SPMR090308-F1,TP2501 |
| Cutting Edge Effective Length (LE) mm | 8.7 |
| Inscribed Circle Diameter (IC) mm | 9.52 |
| Insert Thickness (S) mm | 3.18 |
| Insert Seat Size Code (SSC) | 9 |
| Insert Shape Code (SC) | S |
| Clearance Angle Major (an) Deg | 11.0 deg |
| Insert Hand (IH) | Neutral |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert TP2501 Grade (SPMR): SPMR090308-F1,TP2501
SKU: A0121974 | Model: 02960756
Seco General Turning Insert 0.8 x 3.18 x 9.52mm TP2501 Grade Neutral F1 Chipbreaker (SPMR) SPMR090308-F1,TP2501 Pack of 10
Turning Insert TP2501 Grade (SPMR)
TP2501 grade.
S, Insert Shape Code (SC).
9, Insert Seat Size Code (SSC).
About TP2501 Grade
Carbide CVD.
Duratomic® technology coated grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers.
Supporting inserts of different shapes, sizes, and thicknesses.
We developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
