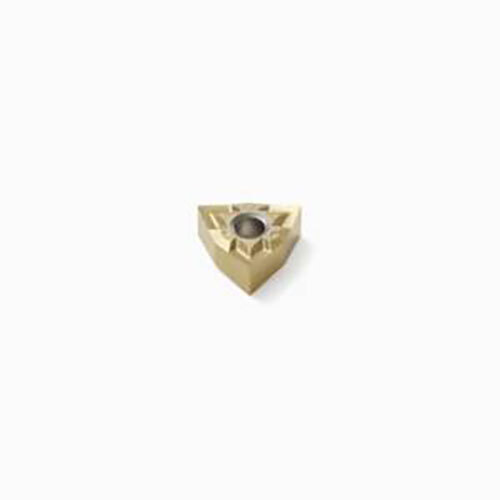

Seco Turning Insert W Shape Code 4.76 x 0.2 x 9.53mm G Insert Type - MF1 Grade TS2000 ± 0.13/± 0.025mm Tolerance WNGG060402-MF1,TS2000 10pcs

Turning Insert WNGG Insert Style - MF1 Grade TS2000

• W shape code.
• G insert type, with hole and chip breaker on both faces.
• TS2000 insert grade.

TS2000 Insert Grade

• Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
• (Ti, Al)N + TiN

MF1 Chipbreaker Programme

• Chipbreaker intended for machining stainless steel, superalloys and titanium alloys.
• Type ..GG insert has a sharp, precision ground edge.
• Type ..MG insert has a lightly honed cutting edge for increased strength.
• MF1 is intended for use in semi-finishing and finishing applications.
• Indicative machining range: f = 0,08–0,30 mm/rev, ap = 0,2–3,5 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
