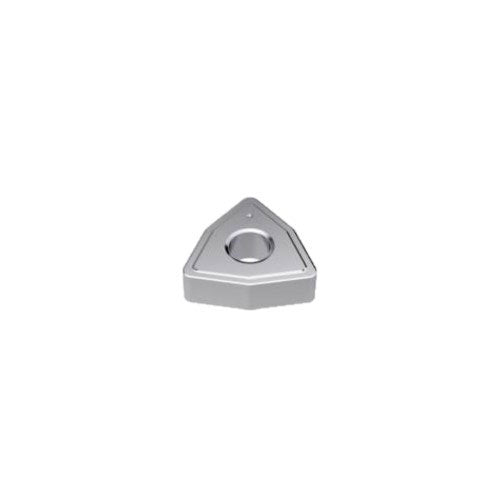

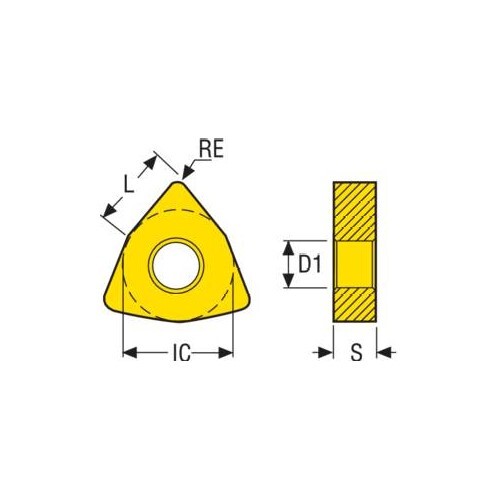

Seco Turning Insert W Shape Code 4.76 x 0.79 x 12.7mm A Insert Type - MR9 Grade TK1501 ± 0.13/± 0.05mm Tolerance WNMA080408-MR9,TK1501 10pcs

Turning Insert WNMA Insert Style - MR9 Grade TK1501

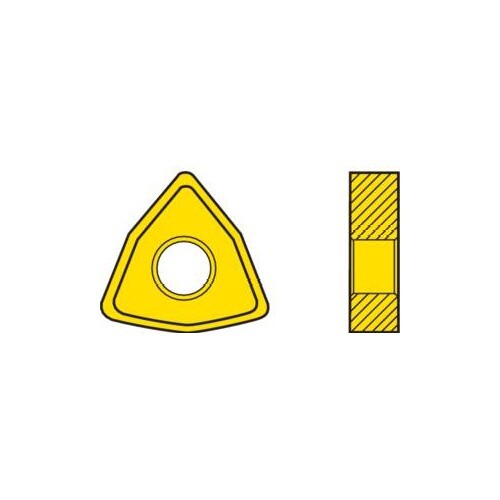

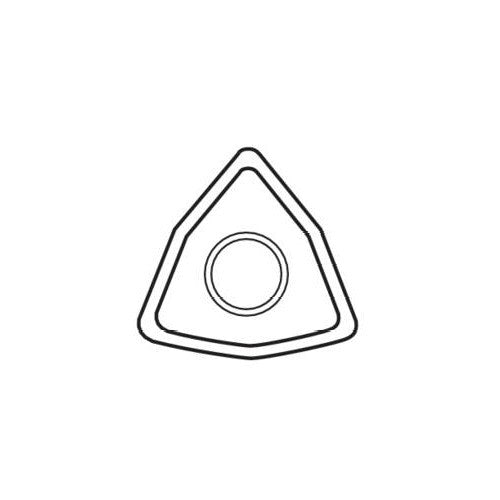

• W shape code.
• A insert type, with a hole, no chipbreaker.
• TK1501 insert grade.

TK1501 Insert Grade

• Duratomic® grade.
• A highly wear-resistant grade for cast irons in general as well as in steels.
• The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome)

MR9 Chipbreaker Programme

• The strongest chipbreaker intended for cast iron.
• The negative chamfers makes it very suitable for high feeds in interrupted cuts and still with very reliable action in cast irons.
• Intended machining range: f = 0,2-1,0 mm/rev ap = 1,0-12mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
