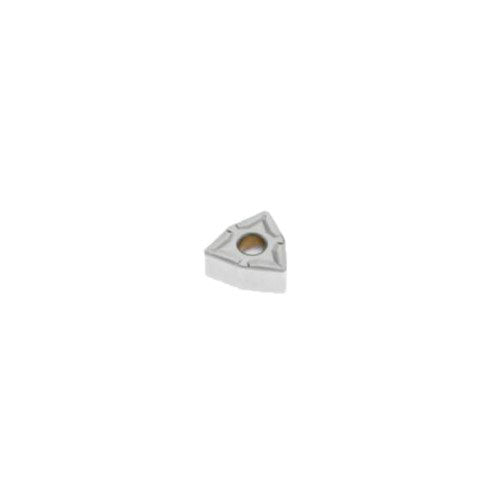

Seco WNMG060408-M3 TK1501 Turning Insert
Available
Genuine Seco 80° trigon turning insert, Grade TK1501 with M3 chipbreaker.
Key Specifications
| Grade | TK1501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | M3 |

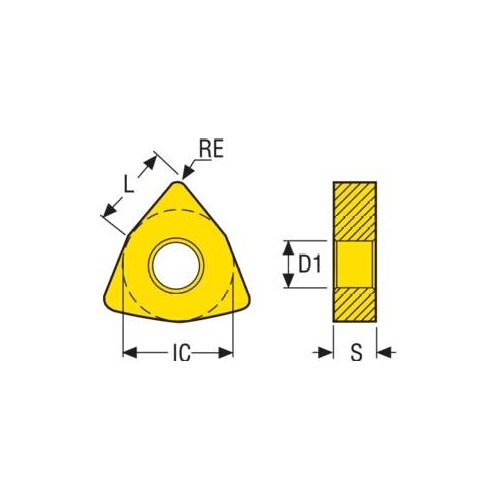

| Insert Details | W shape code. G insert type, with hole and chip breaker on both faces. TK1501 insert grade. |
About Grade TK1501
Carbide CVD. Duratomic® grade. A highly wear-resistant grade for cast irons in general as well as in steels. The grade is particularly capable in the machining of ductile (nodular) cast irons also in more demanding setups and interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
First choice for medium-rough machining and also the most versatile Seco chipbreaker. In most cases, it is the only chipbreaker needed. It offers the best useful life and best chip breaking in a wide range of cutting data and workpiece materials. Suitable for precision forged and cast workpieces (NNS or Near Net Shape workpieces) as regards both chip control and edge strength. Indicative machining range: f = 0,15-0,50 mm/rev, ap = 0,5-5,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
WNMG060408-M3 TK1501
Model Number: 03064503
-
WNMG080404-M3 TK1501
Model Number: 03064506
-
WNMG080408-M3 TK1501
Model Number: 03064507
-
WNMG080412-M3 TK1501
Model Number: 03064510
