Seco WNMG080408-M5 TP40 Turning Insert
The price shown is for the pack.
Available

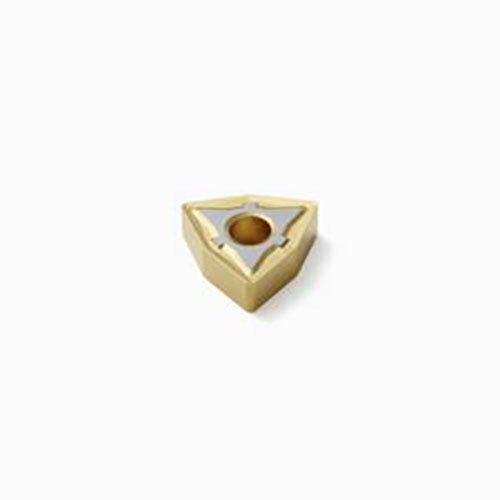

Genuine Seco 80° trigon turning insert, Grade TP40 with M5 chipbreaker.
Key Specifications
| Grade | TP40 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | M5 |

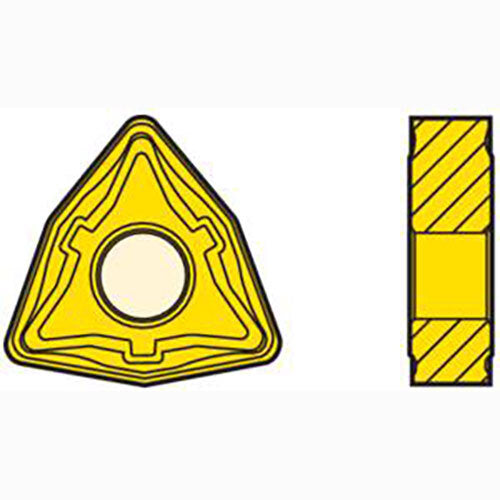

| Insert Details | W shape code. G insert type, with hole and chip breaker on both faces. TP40 insert grade. |
About Grade TP40
Carbide CVD. Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings. TiC/Ti(C,N) + TiN.

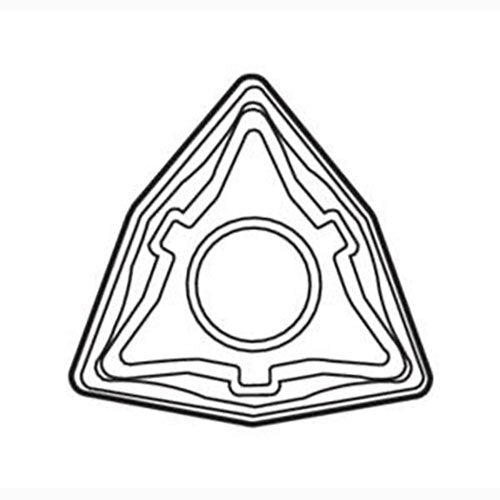

About the M5 Chipbreaker
The choice for roughing by means of double-sided inserts. Intended for demanding operations at high feed rates in steel. Stainless steel and cast iron. Combines high edge strength with comparatively low cutting forces. Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert WNMG Insert Style - M5 Grade TP40: WNMG080408-M5 TP40
SKU: A0118249 | Model: 00023688

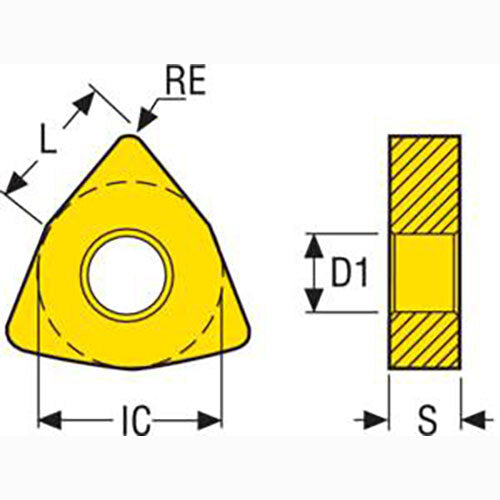

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M5 Grade TP40 ± 0.13/± 0.05mm Tolerance WNMG080408-M5,TP40 10pcs
Turning Insert WNMG Insert Style - M5 Grade TP40
W shape code.
G insert type, with hole and chip breaker on both faces.
TP40 insert grade.
TP40 Insert Grade
Universal grade for a extremely secure performance in the most demanding application from steels, stainless steels to superalloys especially in castings and forgings.
TiC/Ti(C,N) + TiN.
M5 Chipbreaker Programme
The choice for roughing by means of double-sided inserts.
Intended for demanding operations at high feed rates in steel.
Stainless steel and cast iron.
Combines high edge strength with comparatively low cutting forces.
Indicative machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
