Seco WNMG080408-MF4 TS2500 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° trigon turning insert, Grade TS2500 with MF4 chipbreaker.
Key Specifications
| Grade | TS2500 |
|---|---|

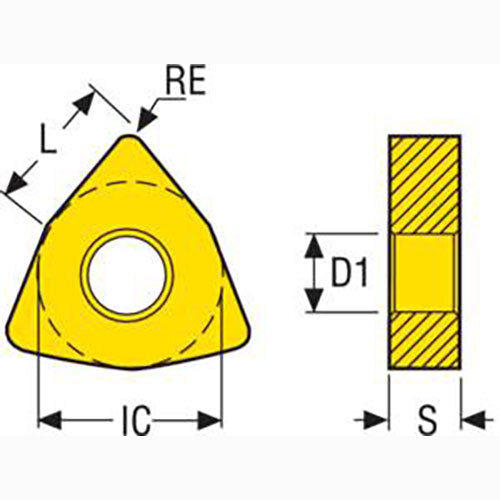

| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | MF4 |
| Insert Details | W shape code. G insert type, with hole and chip breaker on both faces. TS2500 insert grade. |
About Grade TS2500
Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel. (Ti, Al)N + TiN
About the MF4 Chipbreaker
Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry. Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert WNMG Insert Style - MF4 Grade TS2500: WNMG080408-MF4 TS2500
SKU: A0118369 | Model: 02615995

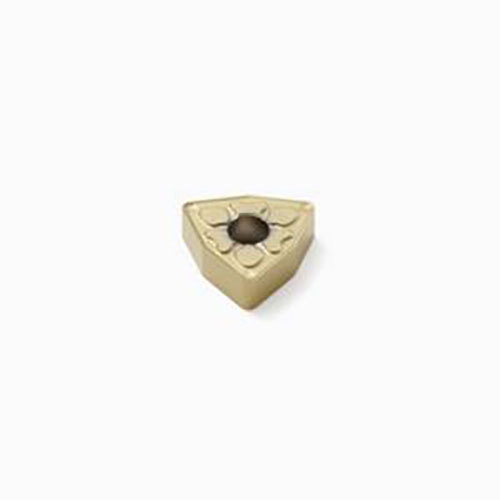

Seco Turning Insert W Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - MF4 Grade TS2500 ± 0.13/± 0.05mm Tolerance WNMG080408-MF4,TS2500 10pcs

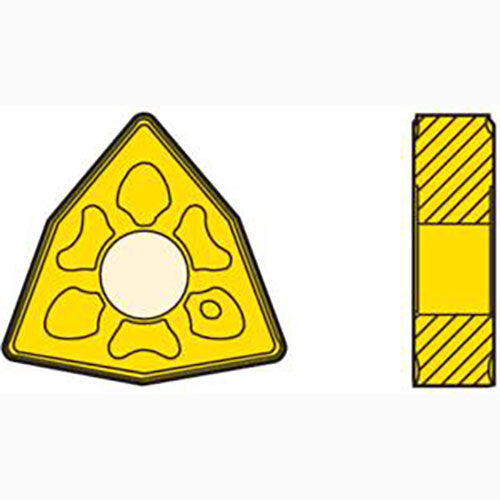

Turning Insert WNMG Insert Style - MF4 Grade TS2500
W shape code.
G insert type, with hole and chip breaker on both faces.
TS2500 insert grade.
TS2500 Insert Grade
Relatively hard micrograin grade for machining of superalloys and titanium in roughing applications and due to its design also applicable in a wide range of materials such as stainless steel.
(Ti, Al)N + TiN

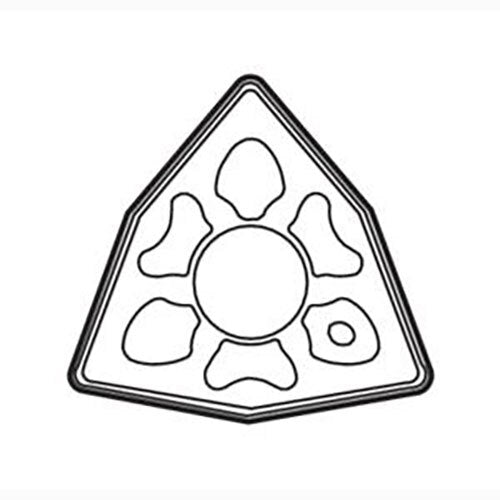

MF4 Chipbreaker Programme
Chipbreaker intended for medium/finishing of stainless steel, very open and highly positive geometry.
Indicative machining range: f = 0,15–0,50 mm/rev, ap = 0,5–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
