Turning Insert WNMG Insert Style - MR3 Grade CP200

SKU: A0116793 | Model: 00072313

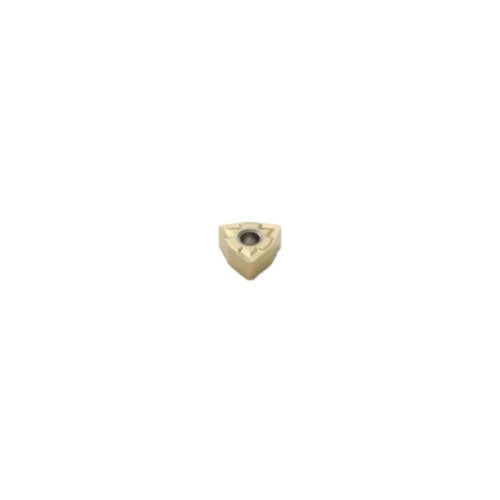

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MR3 Grade CP200 ± 0.13/± 0.05mm Tolerance WNMG060408-MR3,CP200 10pcs

Turning Insert WNMG Insert Style - MR3 Grade CP200

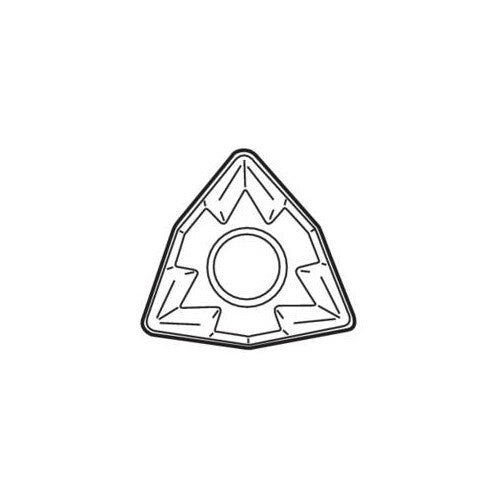

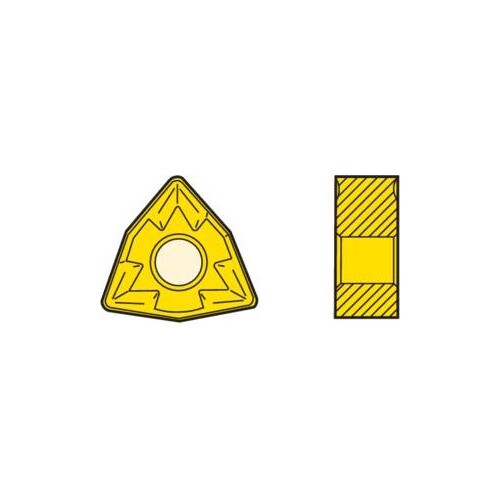

W shape code.

G insert type, with hole and chip breaker on both faces.

CP200 insert grade.

CP200 Insert Grade

Hard micrograin grade principally intended for finishing in superalloys and titanium.

It also works well in stainless steel.

(Ti, Al) N + TiN.

MR3 Chipbreaker Programme

Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.

Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.

Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
