Seco Turning Insert W Shape Code 4.76 x | AIMS Industrial

***Illustrations shown may vary from actual product***

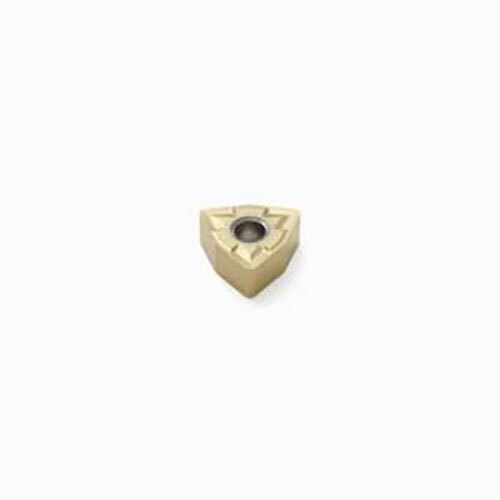

Seco Turning Insert W Shape Code 4.76 x 0.8 x 9.53mm G Insert Type - MR3 Grade TS2000 ± 0.13/± 0.05mm Tolerance WNMG060408-MR3,TS2000 10pcs

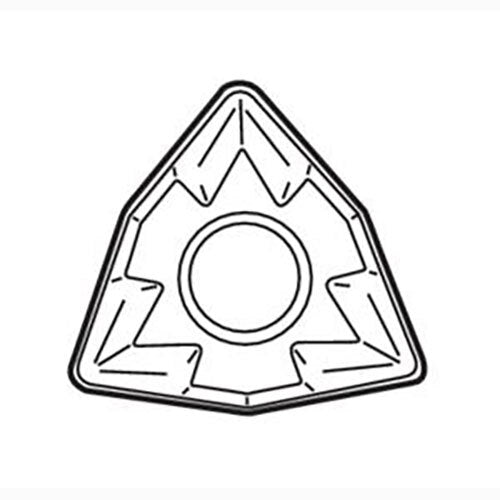

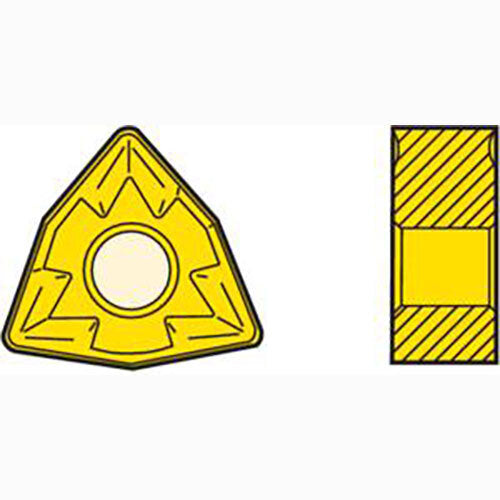

Turning Insert WNMG Insert Style - MR3 Grade TS2000

• W shape code.
• G insert type, with hole and chip breaker on both faces.
• TS2000 insert grade.

TS2000 Insert Grade

• Hard micrograin wear-resistant grade intended for finishing in superalloys and titanium as well as in many stainless steels.
• (Ti, Al)N + TiN.

MR3 Chipbreaker Programme

• Chipbreaker with a positive cutting rake angle that reduces cutting forces and gives a very high edge strength.
• Intended for medium-rough and rough machining of superalloys, titanium alloys and hardened steel.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
