Seco WNMG080412W-M6 TP3501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° trigon turning insert, Grade TP3501 with M3 chipbreaker. This is the WNMG insert style in grade TP3501 (Carbide CVD), with the M3 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 4 options.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |

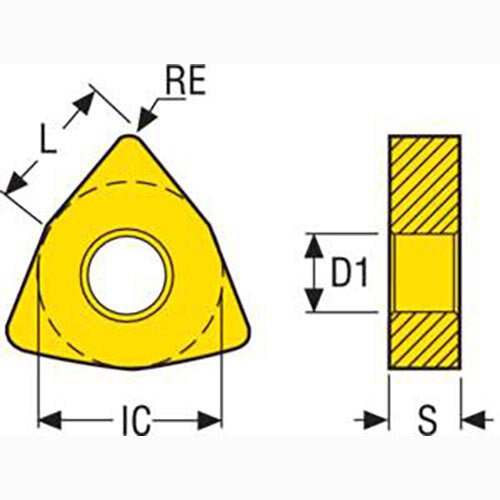

| Insert Shape | 80° trigon (ISO shape code W) |
| Chipbreaker | M3 |
| Insert Details | W shape code. G insert type, with hole and chipbreaker on both faces. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-

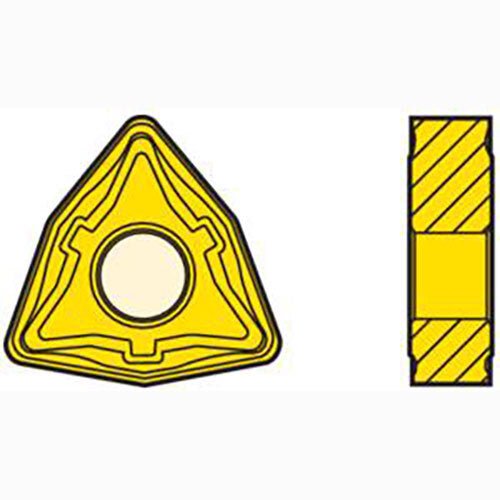

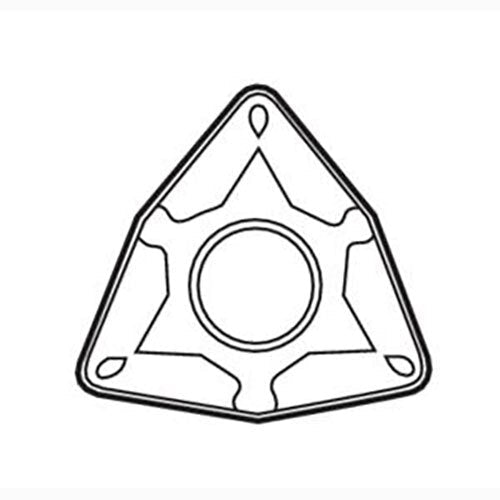

About the M3 Chipbreaker
Versatile chipbreaker for high feed finishing and medium-roughing machining of steel, stainless steel and cast iron. Operates in a wide application area. Gives a good surface finish even at high feeds. Indicative machining range: f = 0,2-0,9 mm/rev, ap = 0,5-6,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert WNMG Insert Style - W-M3 Grade TP3501: WNMG080412W-M6 TP3501
SKU: A0118174 | Model: 03099770
