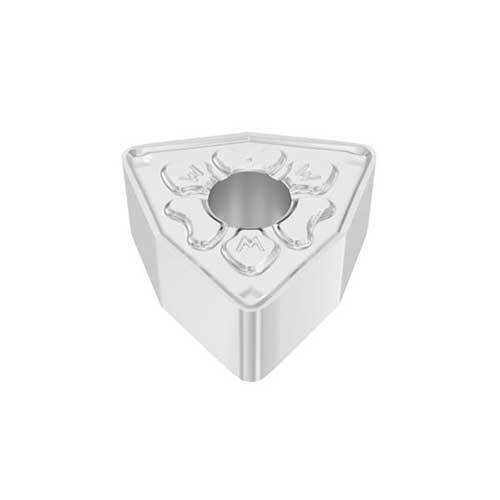

Turning Insert WNMG Insert Style - W-MF4 Grade TM1501: WNMG060408W-MF4 TM1501

SKU: A0158523 | Model: 03277085

Designation WNMG060408W-MF4 TM1501. Turning Insert WNMG Insert Style - W-MF4 Grade TM1501

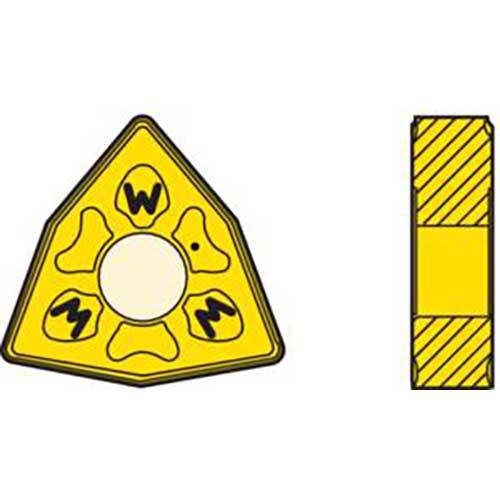

W shape code.

G insert type, with hole and chip breaker on both faces.

TM1501 Insert Grade

Duratomic® grade.

The highly resistant and optimized grade for many continuous cuts in stainless steel turning applications.

Complements in mixes of steel and stainless steel turning.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

W-MF4 Chipbreaker Prog.ramme

Easy cutting action chipbreaker for high feed machining of stainless steel.

Provides a good surface finish in finishing operations and high feed wiper productivity in medium-roughing machining.

Indicative machining range: f = 0,05-0,90 mm/rev, ap= 0,2 - 6,0 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
