Seco WNMG060408W-MF4 TM2501 Turning Insert
Available

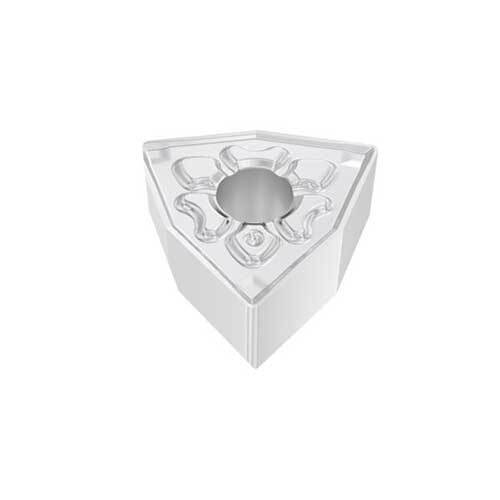

Genuine Seco 80° trigon turning insert, Grade TM2501.
Key Specifications
| Grade | TM2501 |
|---|---|
| Insert Shape | 80° trigon (ISO shape code W) |

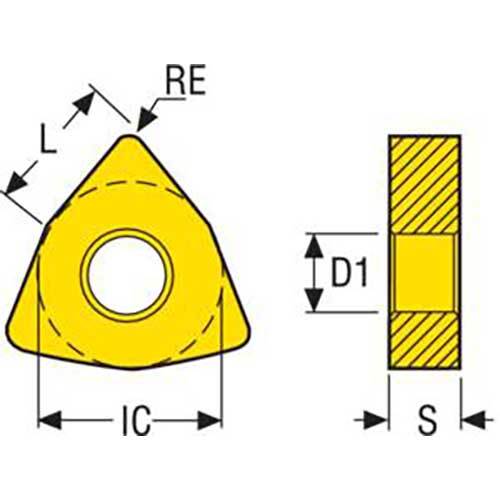

| Insert Details | W shape code. G insert type, with hole and chip breaker on both faces. |
About Grade TM2501

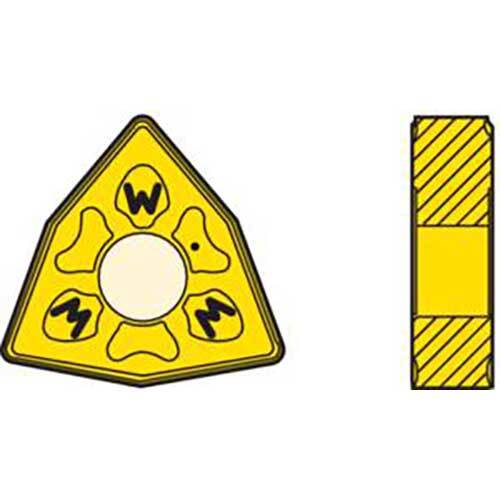

Duratomic® grade. A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness. First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-MF4 Chipbreaker Prog.ramme Easy cutting action chipbreaker for high feed machining of stainless steel. Provides good surface finish in finishing operations and high feed wiper productivity in medium-roughing machining. Indicative machining range: f = 0,05-0,90 mm/rev, ap= 0,2 - 6,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
WNMG060408W-MF4 TM2501
Model Number: 03277086
-
WNMG080408W-MF4 TM2501
Model Number: 03277090
-
WNMG080412W-MF4 TM2501
Model Number: 03277093
