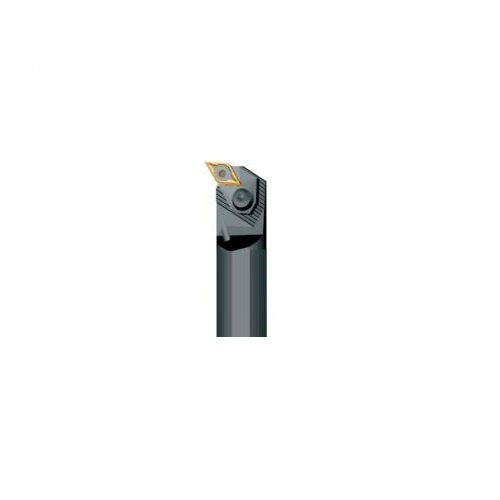

Seco Internal Turning Toolholder Steel | AIMS Industrial

$507.83
$507.83
Inc. GST

Available

◆

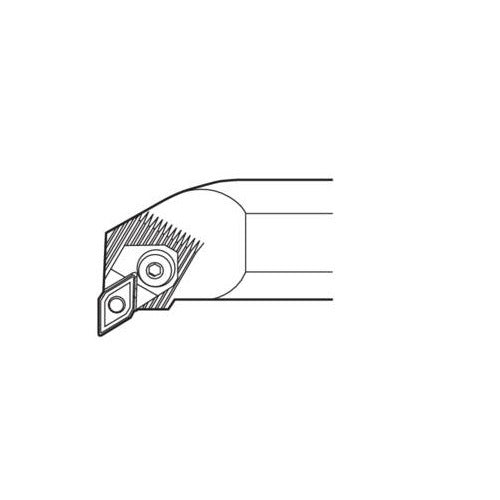

Internal turning / boring toolholder
●
32 machine connection, 30 mm shank height
▲
D-shape insert compatible, Left-hand cut, 93 deg cutting edge angle

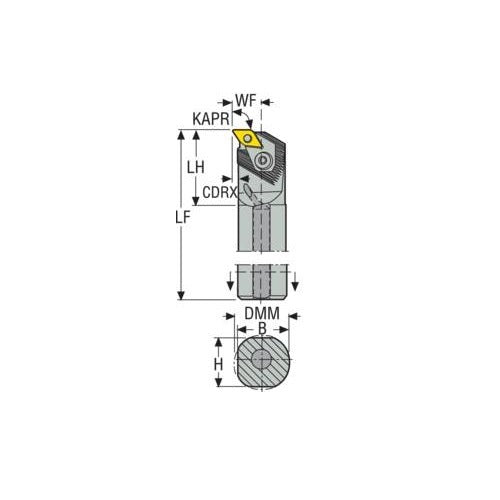

This is a Seco precision-machined internal turning toolholder engineered for production CNC and machine-shop service. The 32 machine-side connection and 30 mm x 31 mm shank match standard turret and tool-block locations. Designed for D-shape Seco inserts, left-hand cut geometry, 300 mm functional length, 93 deg cutting edge angle, W insert clamping. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights −

This Seco precision-machined internal turning toolholder is engineered for production CNC, mill-turn and lathe service. The 32 machine-side shank connection matches standard turret and tool-block fitments. Built with 30 mm x 31 mm shank, 300 mm functional length. Accepts D-shape Seco inserts with the W clamping system. Left-hand cut geometry with 93 deg tool cutting edge angle. Suited to external and internal turning, profiling and finishing on production CNC lathes and mill-turn centres.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • A32T-PDUNL15mm tool holder
    Model Number: 02516554
  • A40U-PDUNL15mm tool holder
    Model Number: 02516553
  • A50V-PDUNL15mm tool holder
    Model Number: 02516561
