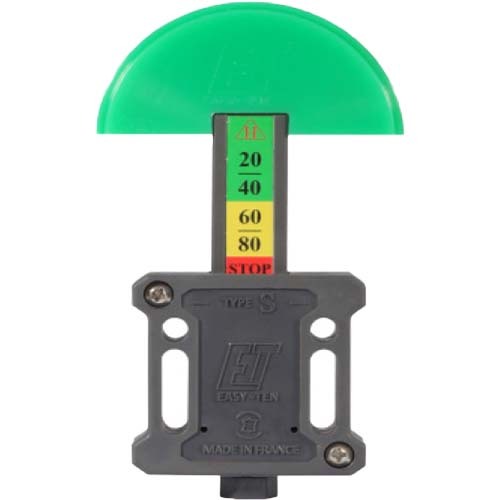

Easy-Ten Type S Heavy Chain Tensioner, 06B1

The Easy-Ten Type S sliding block chain tensioner range for BS simplex roller chain covers 4 models, from 06B-1 to 12B-1 chain (3/8 to 3/4 inch pitch).

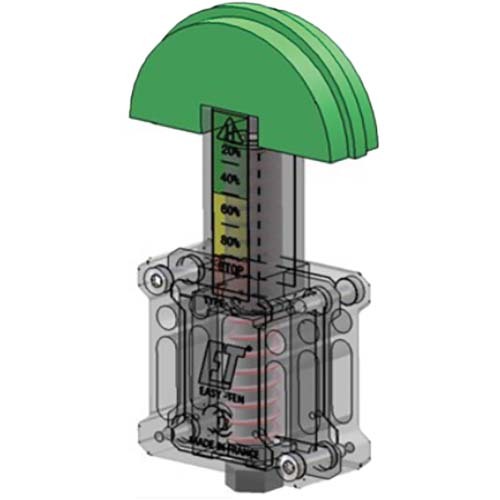

A chain tensioner sits on the slack side of a roller chain drive and takes up the slack as the chain wears and lengthens. The Type S has a sliding block that runs against the chain.

Where this product is used

• Roller chain drives running simplex chain from 06B-1 to 12B-1
• Drives with fixed shaft centres where chain wear needs to be taken up
• Slack-side take-up on machinery and conveyor chain drives

Features

• Type S sliding block chain tensioner for BS simplex roller chain
• 4 models from 06B-1 to 12B-1 chain
• Easy-Ten part numbers ET-S06B1H to ET-S12B1H
• Body and column in 30% glass-reinforced PA6, HD polyethylene sliding pad, stainless steel 304L springs
• Spring force 100 to 240 N in high tension, 40mm stroke

Key specifications

Choosing the right option

Choose the tensioner by chain size and number of strands. The model must match your chain, so check the chain number on the sprocket or chain before ordering. This range is for simplex chain only.

The heavy tension box is the standard setting and a light tension box, ET-SNUL, as an option. See the Easy-Ten ET-SNUL Type S light tension box.

Spring force ranges are over the 40mm stroke. The tensioner is supplied in high tension unless low tension is specified.

Fit the tensioner on the slack side of the chain with the sliding block bearing on the chain. Set the position so the tensioner has movement available in both directions as the chain wears.

Check the chain tension and the wear on the tensioner at regular maintenance intervals. Replace the chain when the take-up is used up.

See also: Easy-Ten Type S Heavy Chain Tensioner, Sliding Block, BS Duplex, 06B to 10B, Easy-Ten Type S Heavy Chain Tensioner, Sliding Block, BS Triplex, 06B and 08B, Easy-Ten ET-SNUL Type S light tension box.
