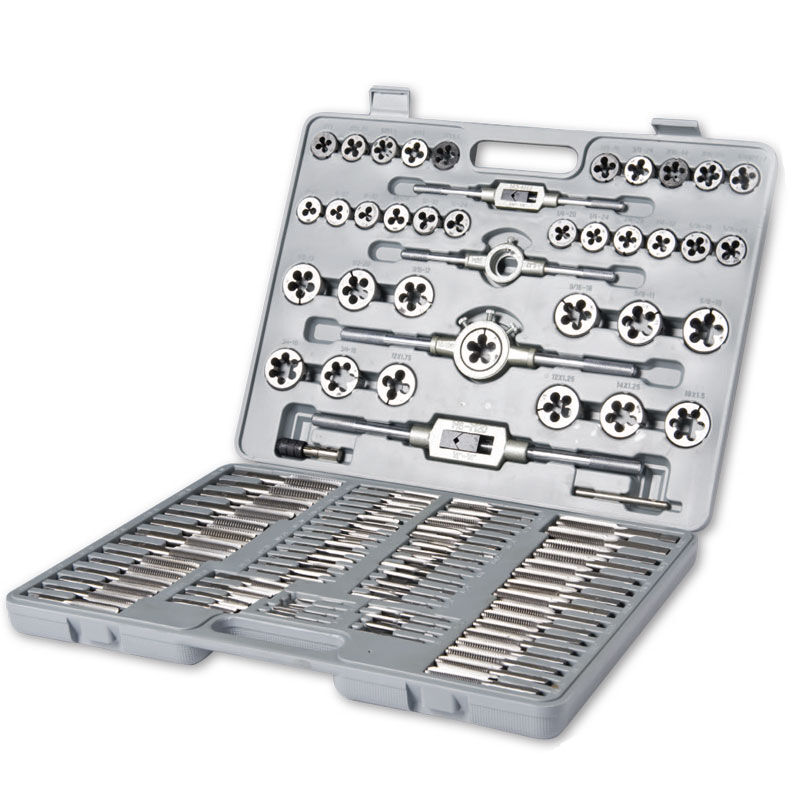

Typhoon 70350 Tap and Die Set, 110 Piece, 35 Threads

The Typhoon Tools 70350 is a 110 piece tap and die set for cutting and repairing threads. A tap cuts or cleans a thread inside a hole. A die does the same on the outside of a bolt or rod. This set covers 35 thread sizes in metric, UNC, UNF, UNS and NPT, so it handles both metric and imperial work.

A quick guide to the thread names. Metric threads are the M sizes, so M6x1.0 is 6mm across with a pitch (the gap between threads) of 1.0mm. UNC is the coarse imperial thread and UNF is the fine imperial thread. UNS is a special-purpose imperial thread and NPT is the tapered pipe thread. The set has 9 metric, 12 UNC, 10 UNF, 2 UNS and 2 NPT sizes. Check your thread size against the sizes the set covers before you buy.

Where this product is used

• Repairing damaged or rusty bolt, stud and screw threads
• Cutting a new thread in a drilled hole
• Threading rod and bar in a workshop or fabrication job
• Thread repairs on machinery and equipment during maintenance
• Pipe thread work using the 1/8-27 and 1/4-18 NPT sizes

Features

• 110 piece set covering metric, UNC, UNF, UNS and NPT threads
• Metric sizes: M6x1.0, M8x1.25, M10x1.5, M10x1.0, M11x1.5, M12x1.25, M12x1.75, M14x1.25, M18x1.5
• UNC sizes: 4-40, 6-32, 8-32, 10-24, 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13, 9/16-12, 5/8-11, 3/4-10
• UNF sizes: 10-32, 12-24, 1/4-28, 5/16-24, 3/8-24, 7/16-20, 1/2-20, 9/16-18, 5/8-18, 3/4-16
• UNS sizes: 1/4-24, 1/4-32
• NPT pipe thread sizes: 1/8-27 and 1/4-18

Key specifications

Supplied with

• 110 piece tap and die set covering 35 thread sizes
