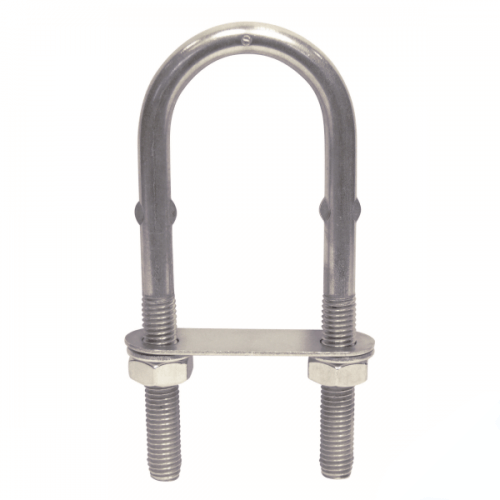

M5 x 80 mm U-bolt with Kit, 304 Stainless Steel - UBOA2M5X80
The price shown is for the box.
Available
The U Bolt With Kit, 304 Stainless Steel is available in 7 sizes (M5 x 80 mm to M12 x 150 mm) and is a U-bolt supplied with a saddle plate and nuts as a clamp set for pipe, tube or rod.
The range runs to 7 variants, covering sizes M5 x 80 mm to M12 x 150 mm. Variants are supplied in packs of 5 to 10, depending on size.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.
Where this product is used
- Clamping pipe and tube to brackets and frames
- Larger sizes for frames, plant and structural fixings
- Fresh water and general outdoor fittings
- Indoor architectural and joinery work
- Small sizes for enclosures, instruments and light fittings
- Mounting round bar or tube to flat plate
Features
- Both legs threaded
- Range covers M5 x 80 mm to M12 x 150 mm in 7 variants
- Supplied in packs of 5 to 10
- Supplied as a kit with fixings
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
Key specifications
| Specification | Detail |
|---|---|
| Product | U Bolt With Kit |
| Type | U-bolt supplied with a saddle plate and nuts as a clamp set for pipe, tube or rod |
| Material | A2 (304) stainless steel |
| Environment | Indoor, fresh water and general outdoor use |
| Key features | Supplied as a kit with fixings; Both legs threaded |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Supplied in packs of | 5 to 10, by size |

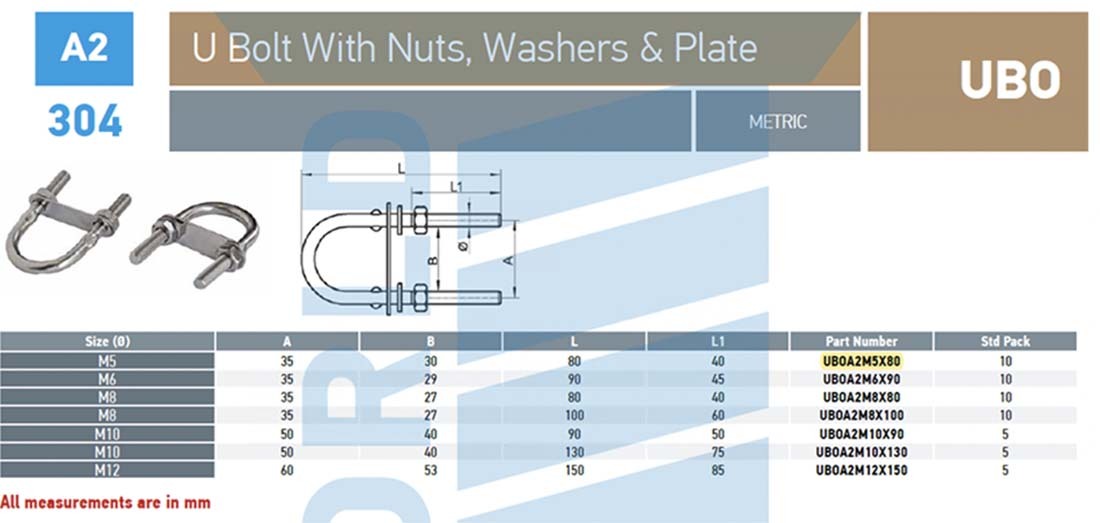

| Size range | M5 x 80 mm to M12 x 150 mm |
| Thread system | Metric |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Variants | 7 |
Selecting the right option
Choose the U-bolt by the size shown on the variant, which lists the thread size and length. Fit a washer under each nut.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
U Bolt With Kit - 304 Stainless Steel: M5 x 80 mm
SKU: A0088318 | Model: UBOA2M5X80
UBOA2M5X80: M5 x 80 mm U-bolt with kit, 304 Stainless Steel. Sold in a box of 10. Suits clamping pipe and tube to brackets and frames.
