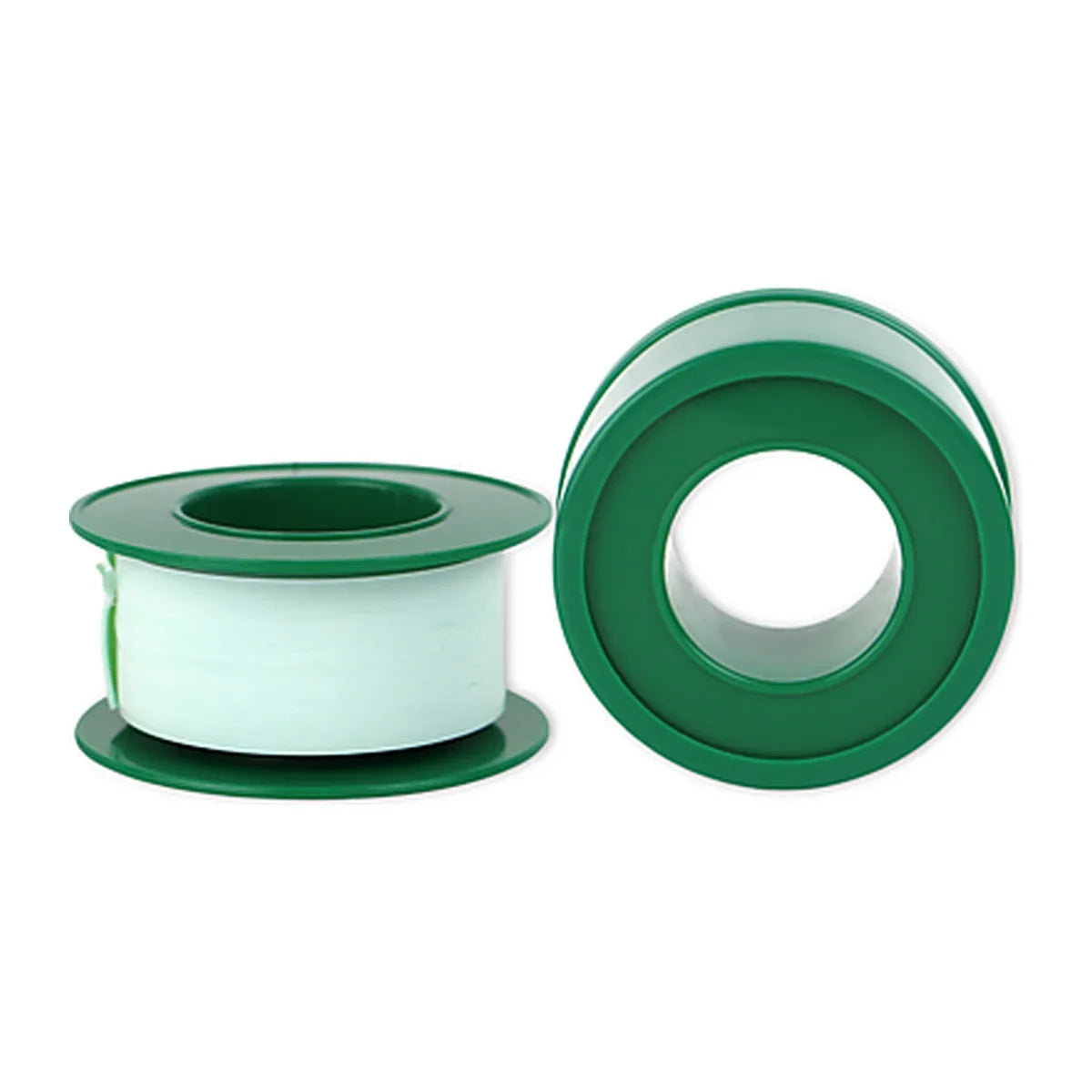

Unasco green PTFE oxygen tape, 6mm x 12m
Available
Unasco Green Oxygen Tape is a PTFE tape for sealing oxygen fittings. It has been used regularly on oxygen fittings at pressures up to 2,173.9 PSI (15,000kPa), depending on the quality and torquing of the fittings and the amount of tape used. It exceeds MIL-T-27730A.
Solvent has been removed from the tape for oxygen service. Keep it clean: do not store it where mineral, vegetable or animal oils and greases could contaminate it, and to wash contaminating substances from your hands before use. It is supplied in 6mm, 12mm, 19mm and 25mm widths, each 12m long.
Where this product is used
- Oxygen fittings
- Oxygenating equipment
Features
- 99.6% PTFE with less than 0.4% pigment, 0.102mm thick
- Used regularly on oxygen fittings at pressures up to 2,173.9 PSI (15,000kPa), depending on fitting quality, torquing and the amount of tape used
- Exceeds MIL-T-27730A
- Non-toxic, non-flammable and chemically inert, with an indefinite shelf life
- Stable from -268°C to +260°C
- Three wraps seal most threads, use more than two on damaged or parallel threads or fittings subject to vibration
- Keep clean and away from oils and greases, wash your hands before use
Key specifications
| Specification | Detail |
|---|---|
| Brand | Unasco |
| Product type | Thread Seal Tape |
| Type | PTFE oxygen thread sealing tape |
| Colour | Green |
| Composition | 99.6% PTFE with less than 0.4% pigment |
| Roll length | 12m |
| Thickness | 0.102mm (plus or minus 10%) |
| Density | 1.5g/cm3 (plus or minus 10%) |
| Tensile strength | 12.5N/mm2 average |
| Oxygen pressure | Up to 2,173.9 PSI (15,000kPa) |
| Temperature range | -268 to +260°C |
| Standard | Exceeds MIL-T-27730A |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 6mm x 12m | A0097692 | |
| 12mm x 12m | A0097690 | |
| 19mm x 12m | A0097689 | |
| 25mm x 12m | A0097688 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

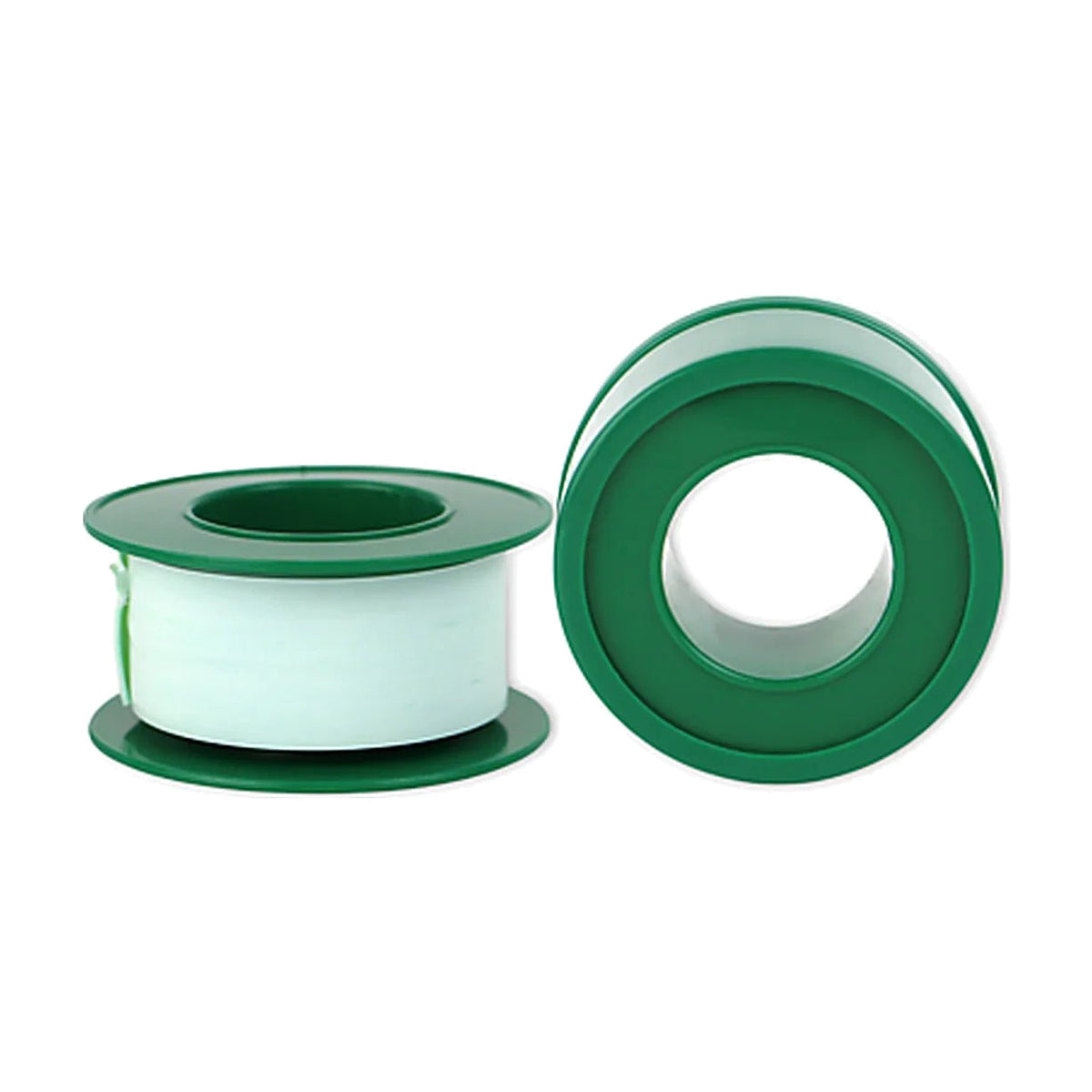

Unasco Green Oxygen Tape: 6mm x 12m
SKU: A0097692 | Model: T4HO000
This Unasco green oxygen tape is 6mm wide and 12m long. Three wraps seal most threads.
