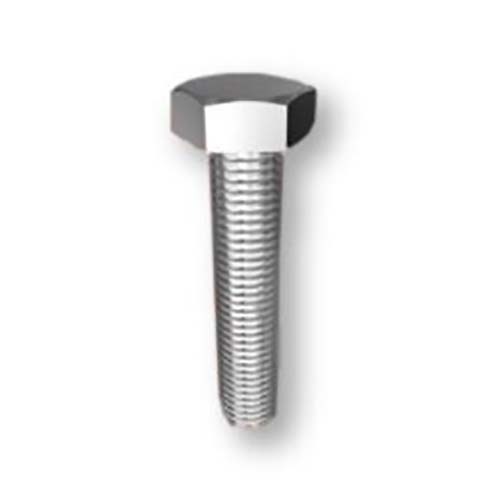

Hobson UNC Hex Set Screw, 3/8" x 1"
The price shown is for the pack.
Available
The Hobson UNC hex set screw has a hex head and a UNC thread, and is fitted into a tapped hole or through a clearance hole with a nut (Grade 5, zinc plated). There are 5 items: 5/16", 3/8" and 7/16", in lengths from 3/4" to 1-1/2". Grade 5 is high tensile, and corresponds to metric class 8.8.
UNC means Unified National Coarse Thread and TPI means threads per inch.
Where this product is used
- Fitted into a tapped hole, or through a clearance hole with a nut and washer, to clamp parts together
- Replacing a hex head screw of the same thread form, diameter, pitch and length
- Machinery, equipment and fabrication work where a hex head screw is called for
Features
- 5 items: 5/16", 3/8" and 7/16"
- Grade 5, zinc plated
- Length 3/4" to 1-1/2"
- Sizes: 5/16", 3/8" and 7/16"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | 5/16", 3/8" and 7/16" |
| Lengths | 3/4" to 1-1/2" |
| Thread | UNC |
| Head | Hex head |
| Finish | Zinc plated |
| Grade | Grade 5 |
| Min. tensile strength | 120,000 psi |
Choosing the right option
Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Length is measured from under the head to the end of the screw. The spanner size shown is the across-flats size for the diameter, in the Grade 5 and 8 column. For a different strength level see Hobson UNC Hex Set Screw, Grade 8, Plain, 1/2" and 5/8".
Related items: Hobson UNC Hex Set Screw, Grade 8, Plain, 1/2" and 5/8", Hobson UNC Hex Set Screw, Grade 8, Zinc Plated, 3/8", 1/2" and 5/8" and Hobson UNF Hex Set Screw, Grade 5, Plain, 1/4", 5/16" and 3/8".
| Option | Part number | SKU |
|---|---|---|
| 3/8 / 1 | BSG5ZC0370100 | A0142483 |
| 3/8 / 1-1/2 | BSG5ZC0370150 | A0142485 |
| 7/16 / 1-1/2 | BSG5ZC0430150 | A0142486 |
| 3/8 / 1-1/4 | BSG5ZC0370125 | A0142484 |
| 5/16 / 3/4 | BSG5ZC0310075 | A0142482 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson UNC Hex Set Screw, Grade 5, Zinc Plated, 5/16", 3/8" and 7/16": 3/8 / 1
SKU: A0142483 | Model: BSG5ZC0370100
Hobson BSG5ZC0370100: 3/8" x 1" UNC hex set screw, Grade 5, zinc plated. Pack of 200. Threads per inch 16 TPI.
