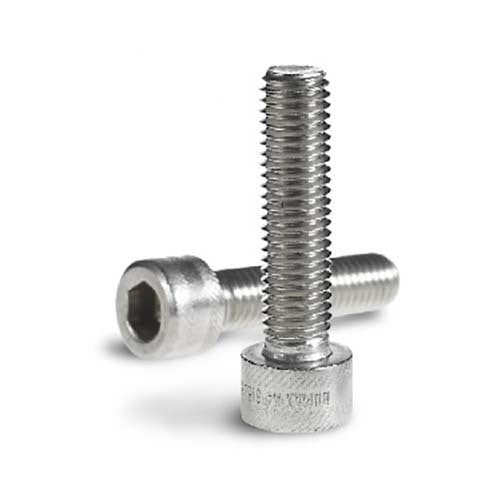

Bumax Socket Head Cap Screw, 1/2 / 1"

The Bumax socket head cap screw has a cylindrical head with a hex socket, driven with a hex key, and a UNC thread. There are 13 items: 1/4" to 3/4", in lengths of 5/8" to 2-1/2".

UNC is the Unified National Coarse thread and TPI is threads per inch. The threads per inch for each size come from the thread table. Every item is supplied as a single item.

Where this product is used

• Fastened into a tapped hole or with a nut, driven with a hex key where a hex socket head is wanted
• Replacing a socket head cap screw of the same thread form, diameter, pitch and length
• Equipment and machinery where a socket head cap screw is called for

Features

• 13 items: 1/4" to 3/4", lengths 5/8" to 2-1/2"
• UNC thread, threads per inch shown in the specifications
• Bumax 88
• Socket head cap with hex socket
• Supplied as a single item

Key specifications

Choosing the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Sizes are nominal diameters in inches; compare the threads per inch with your tapped hole. Length is measured from under the head to the end of the screw.
