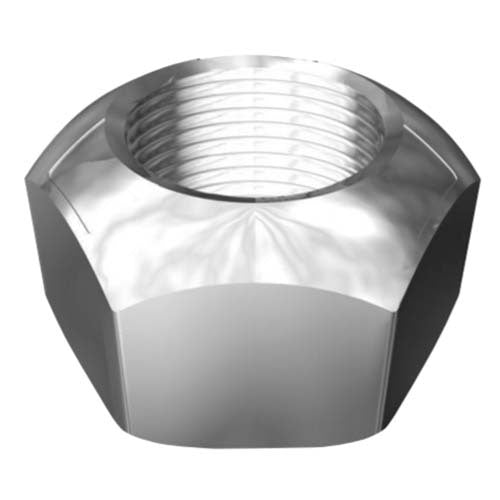

Hobson UNF HCL Cone Locking Nut, 1"
The price shown is for the pack.
Available
The Hobson UNF HCL cone locking nut comes in 17 sizes: 1/4" to 2"; zinc plated finish. This style is an HCL cone lock nut. ZP means zinc, usually referencing zinc plating (zinc with clear chromate).
Where this product is used
- Fitting to a bolt or stud where a cone lock nut is called for
- Joining parts with a bolt of the same thread form, size and pitch
Features
- 17 sizes: 1/4" to 2"
- UNF thread
- Zinc plated finish
- Grade C
- Pack quantity shown for each item
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | 1/4" to 2" |
| Thread | UNF |
| Grade | C |
| Finish | Zinc plated |
Choosing the right option
Choose the thread form first: the nut and its bolt or stud must match in thread form, diameter and pitch. Sizes are nominal diameters in inches; compare the threads per inch with your bolt.
Related nuts: Hobson No. 12-24 UNC HCL Cone Lock Nut, Grade C, Zinc Plated, Box of 100, Hobson Metric HCL Cone Locking Hex Nut, Class 10, Zinc Plated, M6 to M48 and Hobson Metric Fine HCL Cone Lock Nut, Class 10, Zinc Plated, M10 to M20.
| Option | Part number | SKU |
|---|---|---|
| 1 | NCGCZF100 | A0142653 |
| 1-1/2 | NCGCZF150 | A0142658 |
| 1-1/4 | NCGCZF125 | A0142656 |
| 1-1/8 | NCGCZF112 | A0142655 |
| 1-3/4 | NCGCZF175 | A0142659 |
| 1-3/8 | NCGCZF137 | A0142657 |
| 1-14 | NCGCZF100F | A0142654 |
| 1/2 | NCGCZF050 | A0142648 |
| 1/4 | NCGCZF025 | A0142644 |
| 2 | NCGCZF200 | A0142660 |
| 3/4 | NCGCZF075 | A0142651 |
| 3/8 | NCGCZF037 | A0142646 |
| 5/8 | NCGCZF062 | A0142650 |
| 5/16 | NCGCZF031 | A0142645 |
| 7/8 | NCGCZF087 | A0142652 |
| 7/16 | NCGCZF043 | A0142647 |
| 9/16 | NCGCZF056 | A0142649 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson UNF HCL Cone Locking Nut, Grade C, Zinc Plated, 1/4" to 2": 1
SKU: A0142653 | Model: NCGCZF100
Hobson NCGCZF100: 1" UNF HCL cone locking nut, Grade C, zinc plated. Pack of 25. 12 threads per inch.
