Hobson UNF Nyloc Hex Nut, 3/16"
The price shown is for the pack.
Available

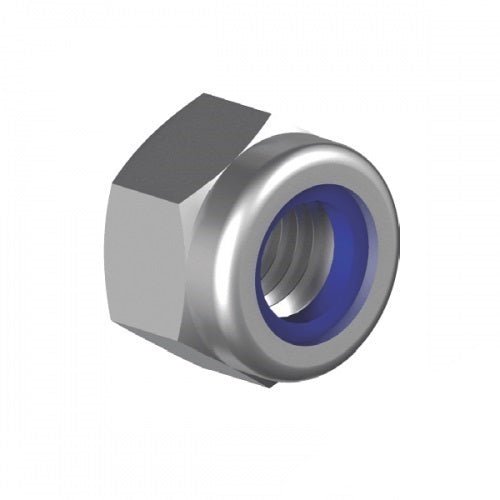

There are 3 Hobson UNF nyloc hex nuts (UNF thread, Grade 5, zinc plated finish): 3/16" to 1-1/8". A nyloc nut is a hex nut with a nylon ring fitted in its top face. The nylon ring is the locking feature of the nut.
Gr means the imperial grade-strength level of a screw or nut, for example Grade 2, Grade 5 or Grade 8. UNF means Unified National Fine Thread and TPI means threads per inch.
Where this product is used
- Fastening a bolt or stud where a nut with a nylon locking ring is wanted
- Holding parts together in a bolted joint, with a washer under the nut where one is needed
Features
- 3 sizes: 3/16" to 1-1/8"
- UNF thread, nyloc hex nut
- Grade 5, zinc plated finish
- Pack quantity shown for each item
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Nut type | Nyloc hex nut |
| Sizes | 3/16" to 1-1/8" |
| Thread | UNF |
| Grade | 5 |
| Finish | Zinc plated |
Choosing the right option
Match the nut to the bolt, stud or rod: thread form, diameter and pitch must all agree. Sizes are nominal thread diameters in inches; compare the threads per inch with your bolt.
Related nuts: Hobson UNF Nyloc Hex Nut, Grade 2, Zinc Plated, 1-1/8", Pack of 25, Hobson UNF Nyloc Hex Nut, Grade 8, Zinc Plated, 1/4" to 2" and Hobson UNF Hex Nut, Grade 5, Zinc Plated, 7/16", Pack of 50.
| Option | Part number | SKU |
|---|---|---|
| 1 | NNG5ZF100 | A0143297 |
| 1-1/8 | NNG5ZF112 | A0143298 |
| 3/16 | NNG5ZF018 | A0143296 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson UNF Nyloc Hex Nut, Grade 5, Zinc Plated, 3/16" to 1-1/8": 3/16
SKU: A0143296 | Model: NNG5ZF018
Hobson NNG5ZF018: 3/16" UNF nyloc hex nut, Grade 5, zinc plated. Threads per inch 32. Pack of 200.
