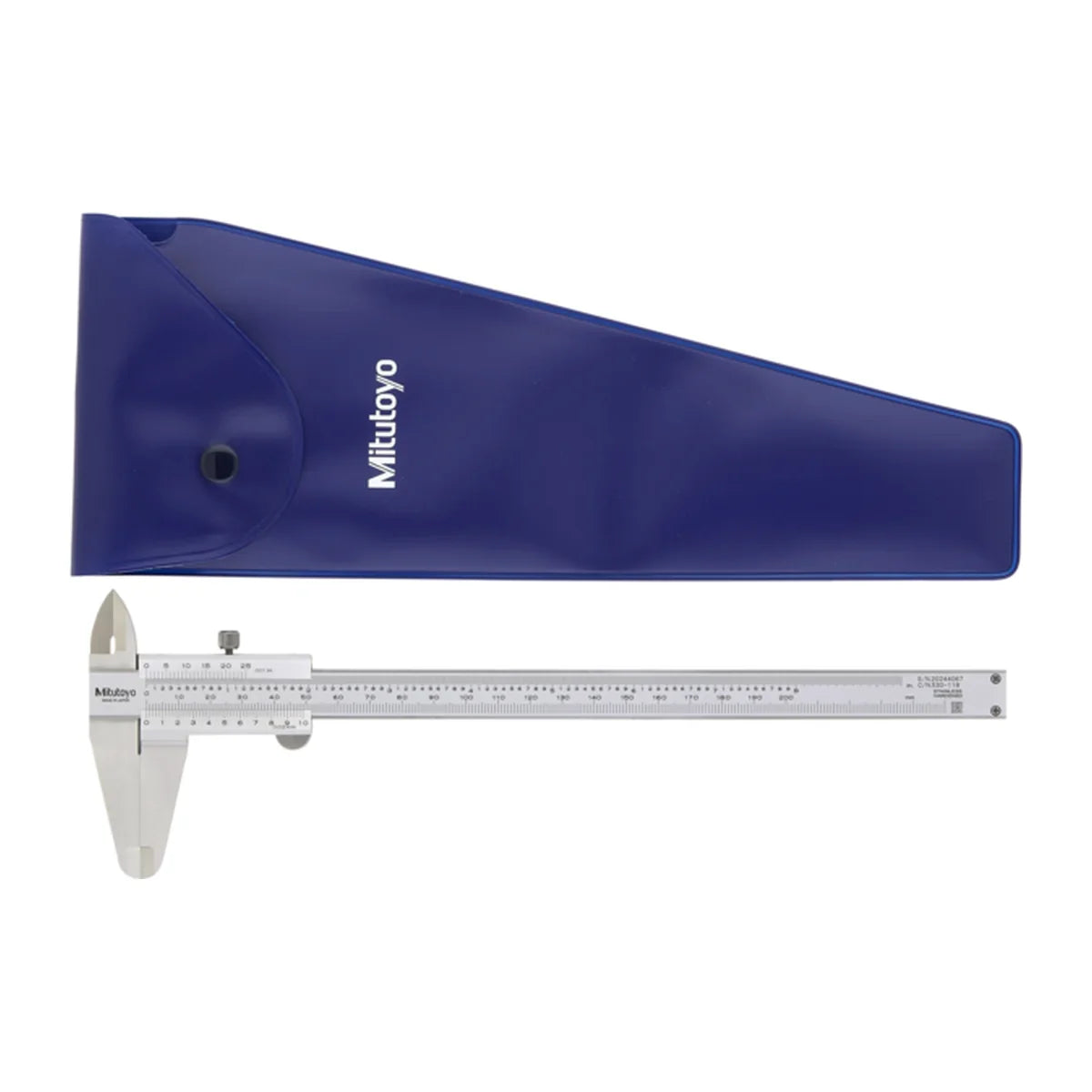

Mitutoyo 530-118 Vernier Caliper, 200mm/8", 0.02mm

The Mitutoyo Series 530 is a standard vernier caliper for toolrooms, workshops, inspection benches and apprentices. It measures outside diameter, inside diameter, depth and steps. The main scale and vernier scale are satin chrome, which makes them easy to read, and the sliding surfaces are raised.

There are three sizes: 150mm/6", 200mm/8" and 300mm/12". Each size comes in two versions. The standard version reads to 0.05mm on the metric scale and 1/128" on the inch scale. The high-accuracy version reads to 0.02mm and .001". Graduation is the smallest step on the scale. Accuracy is how close a reading is to the true size. They are different numbers, so check both. A vernier caliper has no screen and no battery. You read the whole number from the main scale and the fine part from the sliding vernier scale. Choose the high-accuracy version for tighter tolerances and the standard version for general workshop checks. If you want a fine-adjustment wheel, look at the Series 532. If you need long jaws, look at the Series 534.

Where this product is used

• Toolroom and quality control checks on machined parts
• Measuring outside diameters, bore sizes, depths and steps at the bench or machine
• Fitters and maintenance crews checking worn or replacement parts
• Training apprentices to read a vernier scale

Features

• Measures outside diameter, inside diameter, depth and steps
• Satin chrome main scale and vernier scale for easy reading
• Raised sliding surfaces
• Metric and inch dual scales on all six models
• Lock screw holds the sliding jaw in position
• Flat depth bar on all six models

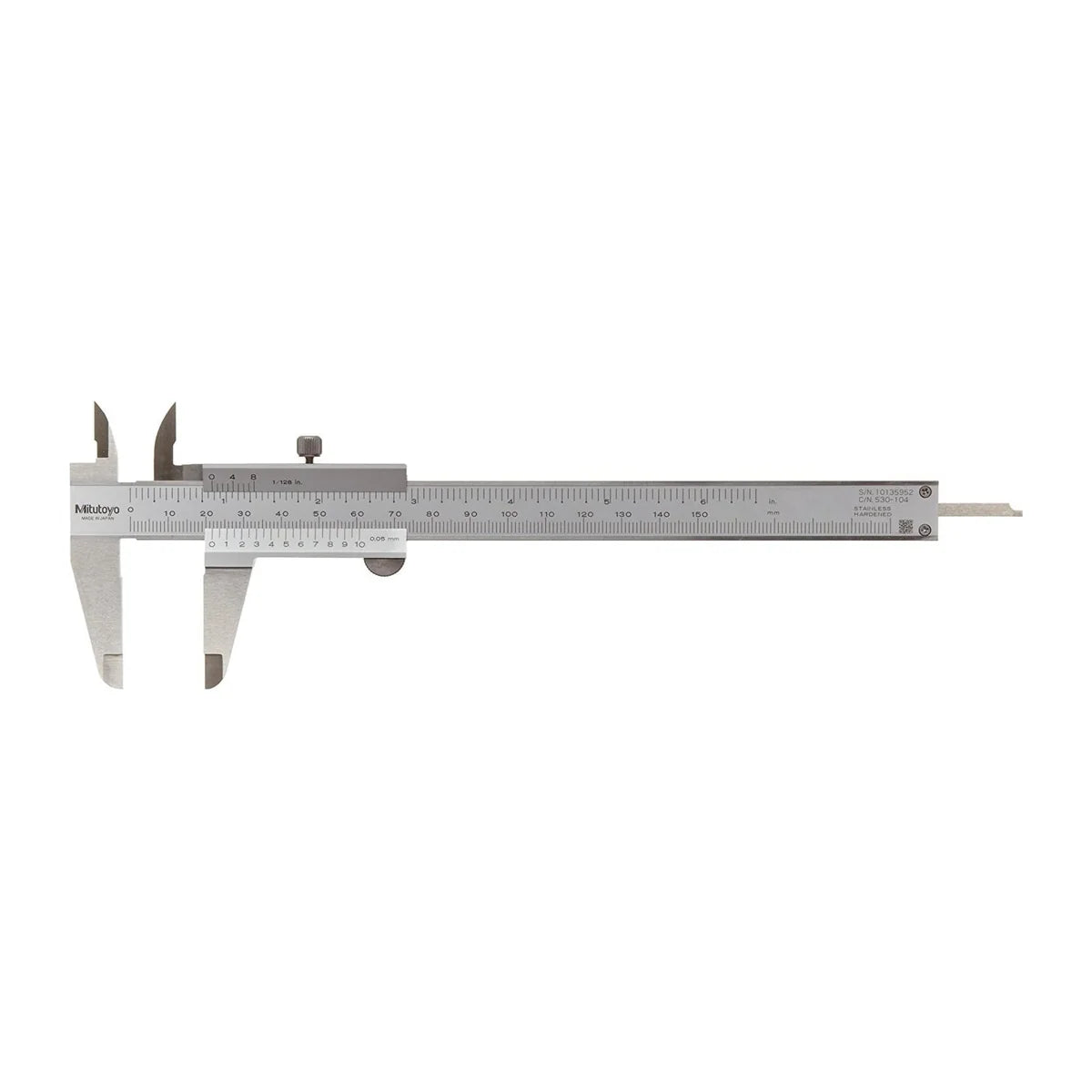

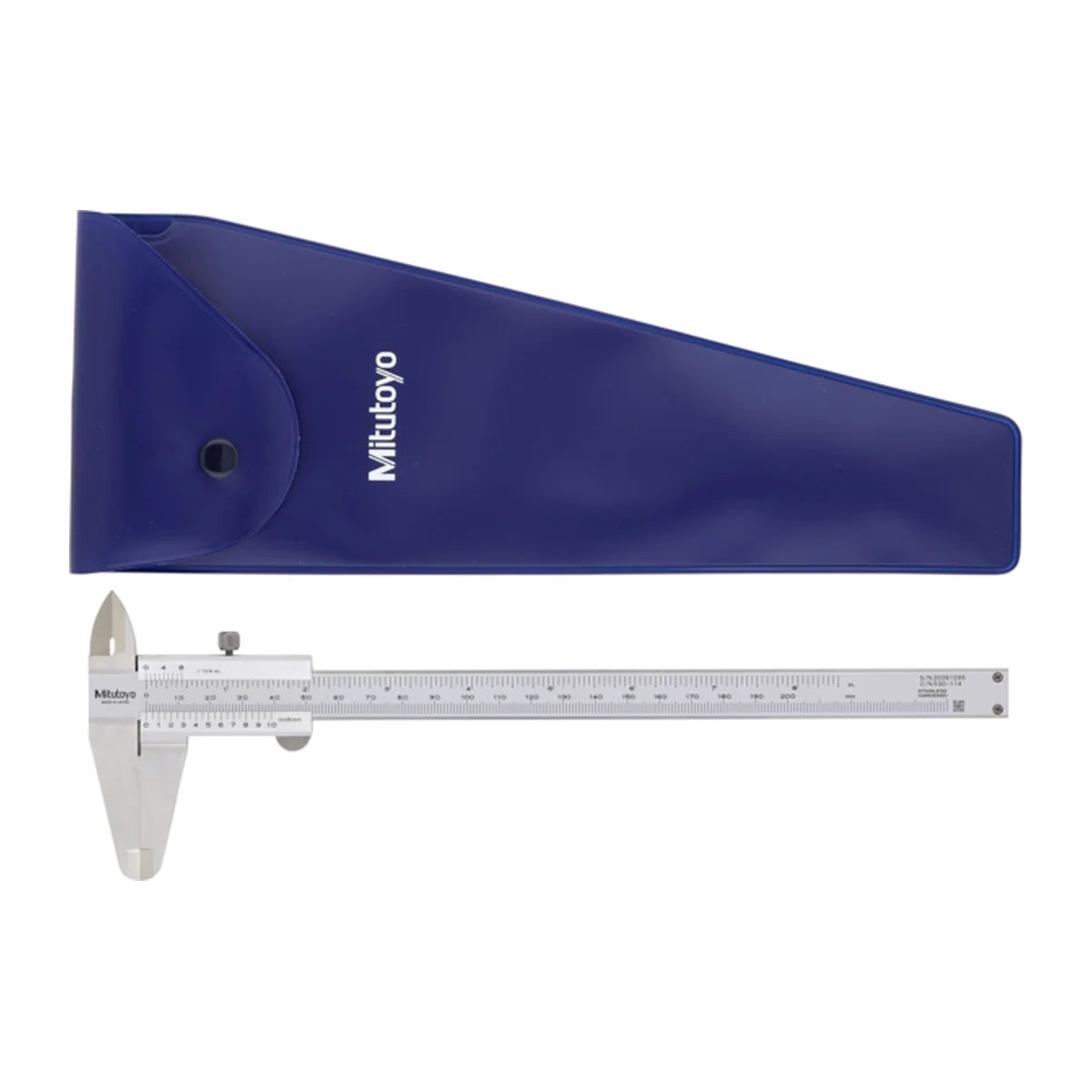

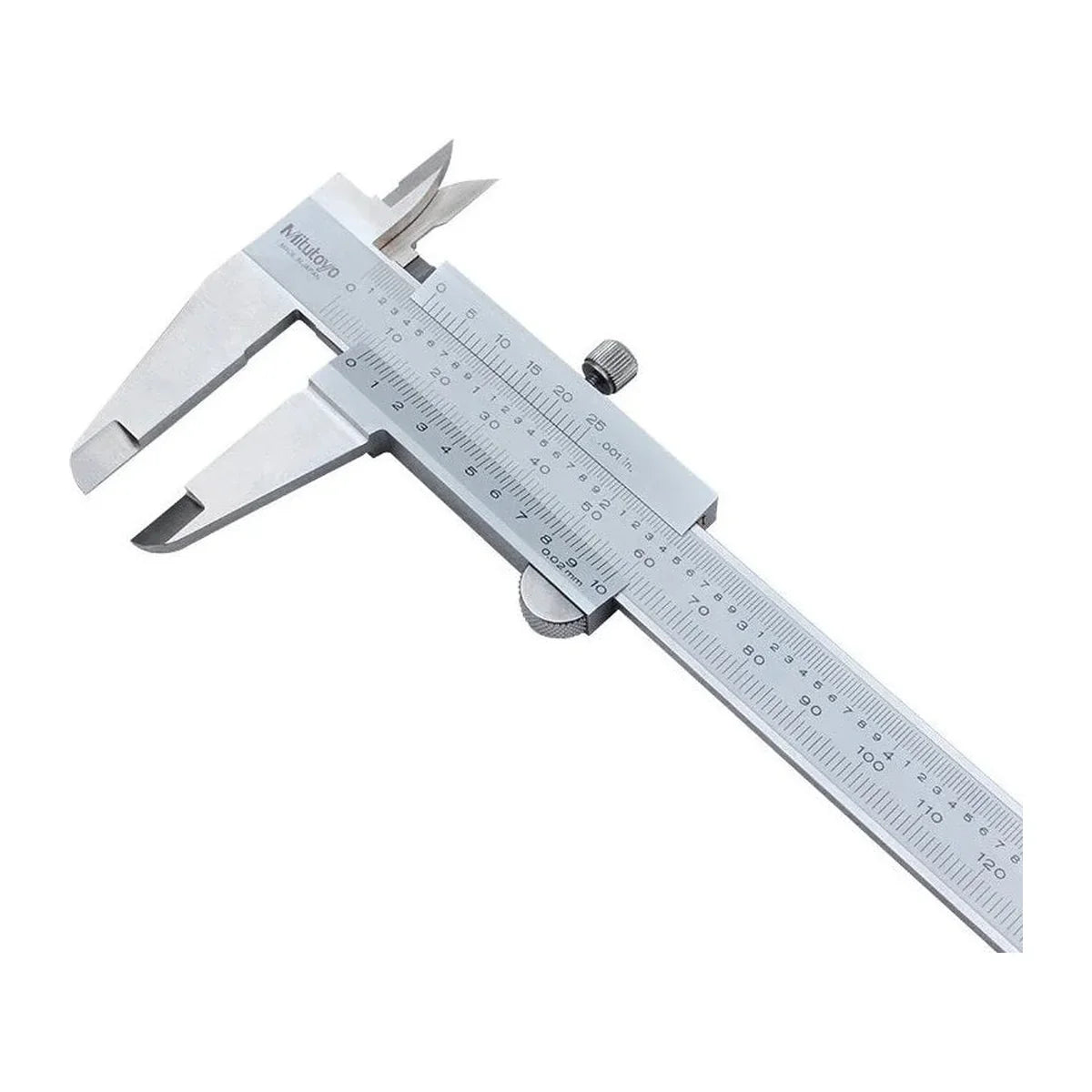

• Standard models 530-104, 530-114 and 530-115 read to 0.05mm with accuracy from ±0.05mm to ±0.08mm

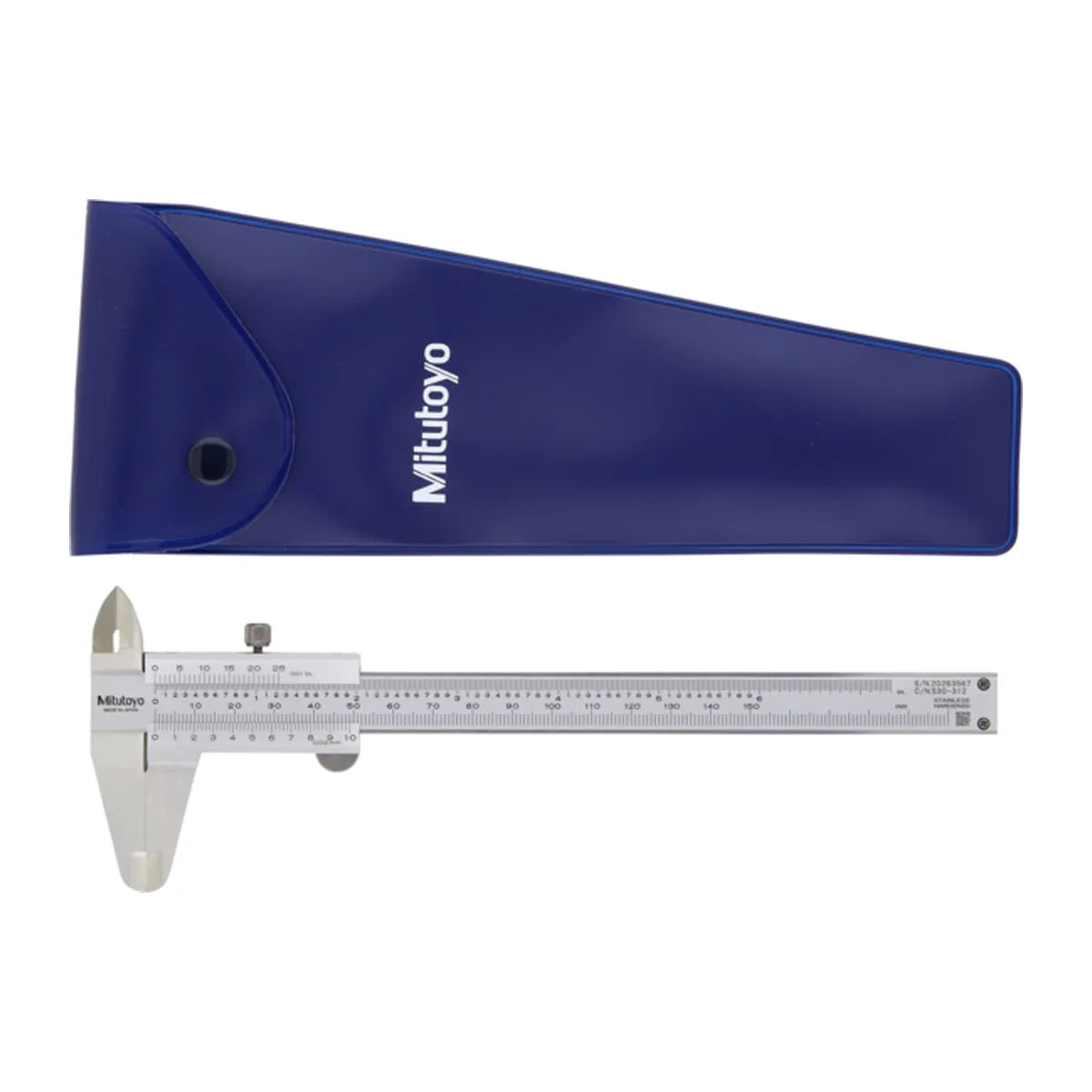

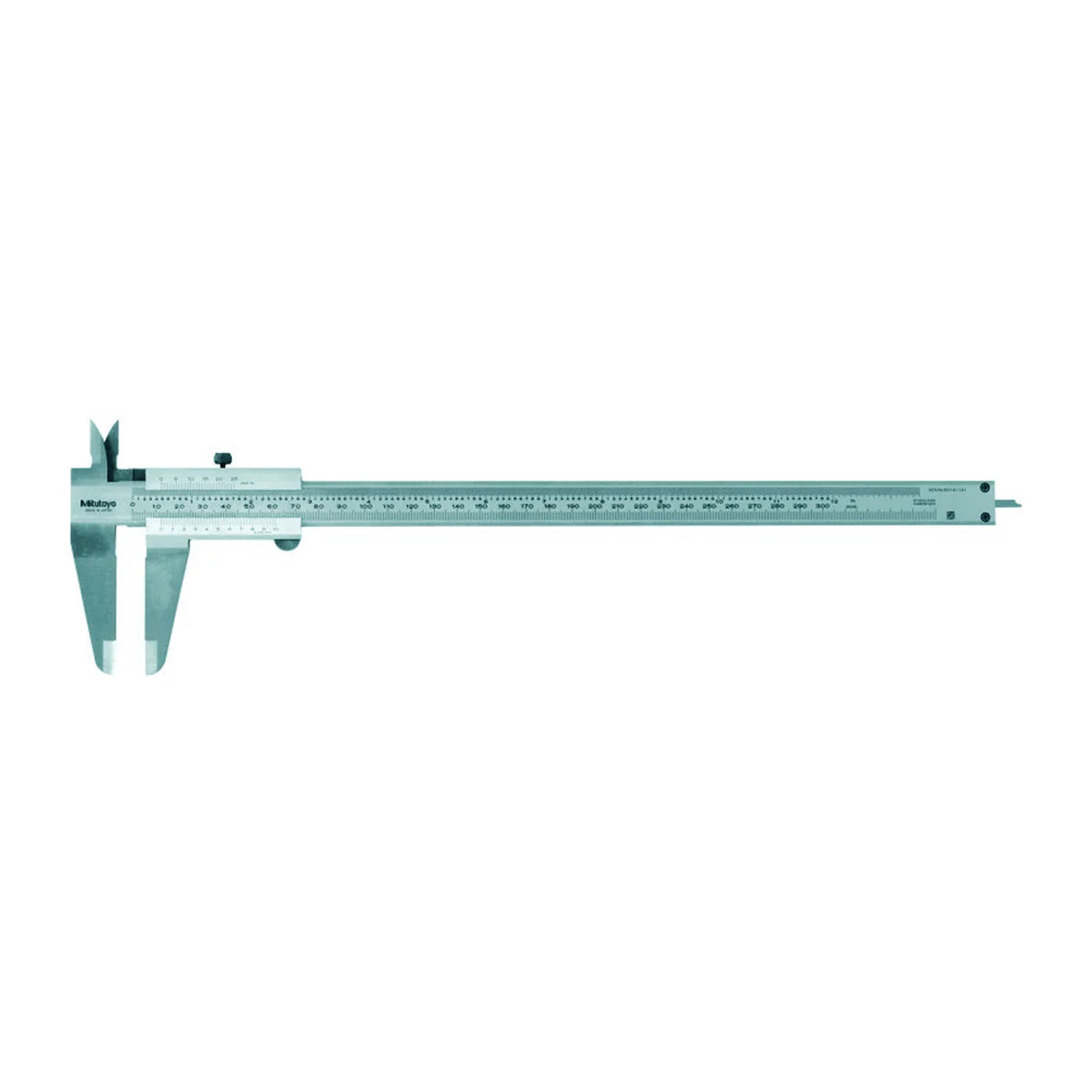

• High-accuracy models 530-312, 530-118 and 530-119 read to 0.02mm with accuracy from ±0.03mm to ±0.04mm
• Optional depth base attachments are sold separately: 050083-10 and 050084-10 for the 150mm and 200mm sizes, 050085-10 for the 300mm size

Key specifications

Supplied with

• Vernier caliper in the size and version you select
• Not included: depth base attachment (optional, sold separately)
