Finer Power weld On Hub, 25 / 1210

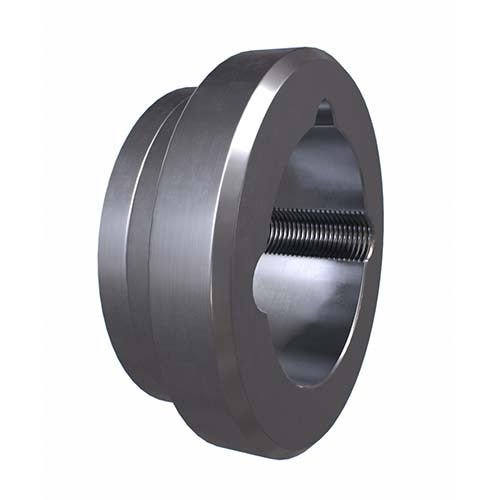

This is a taper bore weld on hubs, WH series, in sizes WH12 to WH35, for taper lock bushes 1210 to 3525. A weld on hub is drilled, tapered and bored to receive a standard taper lock bush. The extended flange provides a convenient means of welding the hub to a device that must be firmly fastened to a shaft.

Where this product is used

• Fastening impellers, agitators, wheels and other devices to a shaft
• Fabricated assemblies where a taper lock bush locks the hub to the shaft
• Fan, mixer and conveyor shafts
• Machine repairs and one-off fabrications

Features

• Taper bore hub that takes a standard taper lock bush
• Extended flange for welding the hub to the device
• Bush sizes 1210 to 3525
• 6 sizes, WH12 to WH35

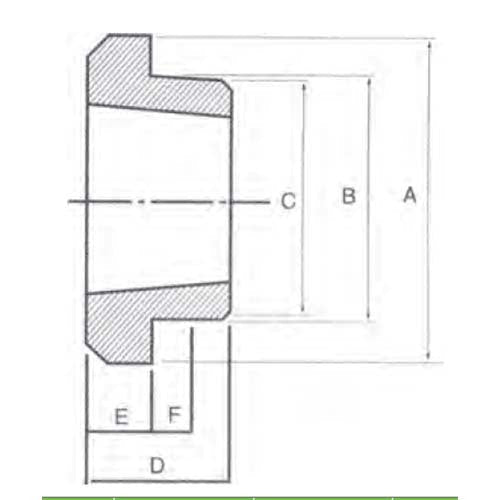

• A, B, C, D, E and F dimensions for every size

Key specifications

Sizes available

Choosing the right option

Choose the hub by the taper lock bush it takes. The bush is sold separately, in cast iron and steel: see Taper Lock Bush, Metric Bore, Cast Iron, Series 1008 to 5050, Taper Lock Bush, Imperial Bore, Cast Iron, Series 1008 to 5050, Taper Lock Bush, Metric Bore, Steel, Series 1008 to 5050 and Taper Lock Bush, Imperial Bore, Steel, Series 1108 to 4040. The bush fixes the hub to the shaft, so the bore, keyway and shaft size are decided by the bush you select.

The other weld on hub series is on Weld On Hub, Taper Bore, W Series, W12 to W50, and the bolt on version, for jobs where welding is not allowed, is on Bolt On Hub, Taper Lock, BF12 to BF30.

Weld the hub to the device before fitting the bush, so that the weld heat does not reach the bush.
