Wiha straight circlip pliers, 139
Out of stock
Straight head, drop forged cylindrical precision tips and chrome-vanadium molybdenum steel, to DIN ISO 5256. Overall lengths are 139mm and 140mm.
Where this product is used
- Inserting and removing circlips from inside bores
Features
- Straight head shape
- Drop forged, cylindrical precision tips
- Chrome-vanadium molybdenum steel
- Standard: DIN ISO 5256
- 2 types, circlips from 8 to 25mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | Z33001 |
| Head shape | Straight |
| Application | Inserting and removing circlips from inside bores |
| Tips | Drop forged, cylindrical precision tips |
| Material | Chrome-vanadium molybdenum steel |
| Standard | DIN ISO 5256 |
| Type | J0, J1 |
| Overall length | 139mm, 140mm |
| Circlip diameter range | 8 to 13mm, 12 to 25mm |
Choosing the right option
Choose the type by the circlip diameter in your bore or on your shaft: J0 takes 8 to 13mm. J1 takes 12 to 25mm. These are for inner rings; for shafts (outer rings) use the Wiha Straight Circlip Pliers for Outer Ring. For the angled head of the same ring type see the Wiha Angled Circlip Pliers for Inner Ring.
See also: Wiha Straight Circlip Pliers for Outer Ring, Wiha Angled Circlip Pliers for Inner Ring, Wiha Angled Circlip Pliers for Outer Ring.
| Option | Part number | SKU |
|---|---|---|
| 139 | 26781(Z33001) | A0109235 |

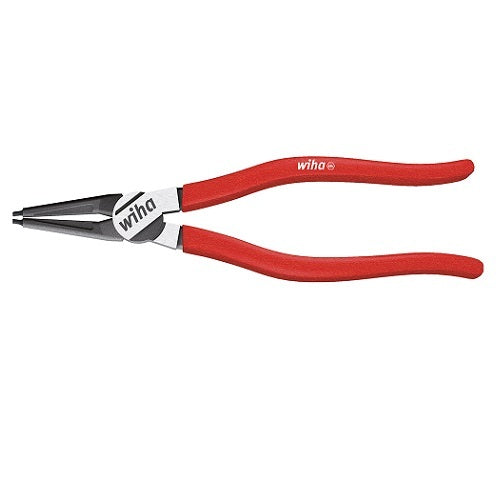

| 140 | 26782(Z33001) | A0109236 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

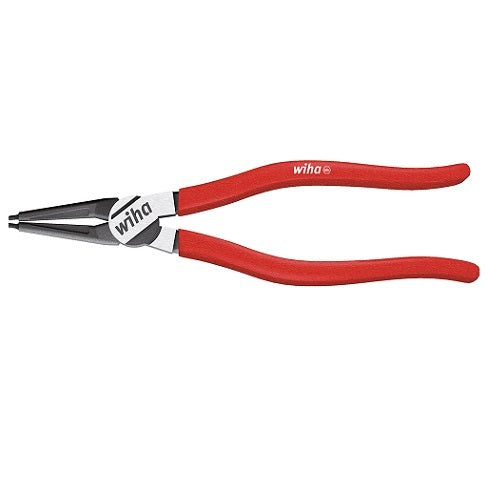

Wiha Straight Circlip Pliers for Inner Ring: 139
SKU: A0109235 | Model: 26781(Z33001)
Wiha 26781(Z33001): straight circlip pliers for inner rings, type J0, 139mm long, circlips 8 to 13mm, DIN ISO 5256.
