Buy Industrial V-Belts Online in Australia
Industrial V-Belts for Power Transmission
Industrial V-belts are the most widely used power transmission belt type in industrial machinery, transferring rotational power from drive motors to driven equipment through the wedging action of the belt's trapezoidal profile in matching V-groove sheaves. Their combination of high power transmission efficiency, tolerance for minor misalignment, ability to slip harmlessly under momentary overload, and low maintenance requirements makes them the default drive solution across pumps, fans, compressors, conveyors, machine tools, and agricultural equipment. AIMS stocks a comprehensive range of industrial V-belts in narrow section and classical profiles from leading power transmission belt manufacturers.

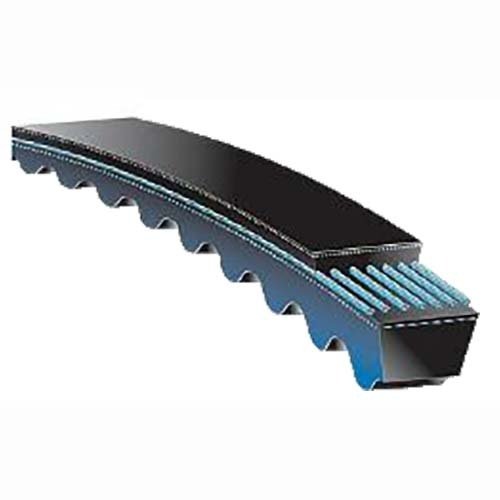

Narrow Section V-Belts
Narrow section V-belts (SPZ, SPA, SPB, SPC — also referred to as 3V, 5V, and 8V in the inch designation system) are the modern standard for industrial power transmission drives. Compared to classical sections of equivalent power capacity, narrow section belts have a deeper cross-section relative to their width, transmitting more power per belt while running on smaller diameter sheaves. This results in more compact drive designs and higher transmission efficiency. Most new industrial machinery uses narrow section belts, and replacements should always match the original section designation. Attempting to substitute a different section profile — even one that appears to fit the groove — produces an incorrect wedging angle and reduces drive life significantly.
Classical Section V-Belts
Classical V-belt sections (A, B, C, D, E) remain in widespread use as replacement belts on older industrial machinery designed before narrow section became standard. Classical section belts are available in raw-edge cogged and wrapped constructions. Raw-edge cogged belts offer better flexibility around smaller pulley diameters and improved efficiency compared to wrapped belts in the same cross-section — making them the preferred replacement for classical drives where improved performance is desired without changing sheave profile. Wrapped classical belts remain the traditional specification on a wide range of general industrial machinery and agricultural equipment.
Belt Replacement and Tensioning
Always replace all belts in a multi-belt drive simultaneously — mixing old and new belts causes uneven load distribution and accelerates wear across the entire set. Match the replacement belt section and length designation exactly to the original specification. Verify sheave condition before fitting new belts — worn sheave grooves cause rapid belt wear regardless of belt quality or brand. Correct tensioning at installation is the single most important factor in belt drive life after correct sheave selection and alignment.
For belt cross-referencing, drive calculations, or volume pricing, contact our team.
