Electric Motors

Electric Motors

Electric motors are the workhorses of industrial machinery — converting electrical energy into rotational mechanical output to drive pumps, fans, conveyors, compressors, and a vast range of production and process equipment. Selecting the right motor for a given application requires matching the voltage, phase, speed, frame size, enclosure rating, and output power to both the electrical supply and the driven load. AIMS Industrial supplies electric motors for industrial and commercial applications across Australia.

Single-Phase vs Three-Phase Motors

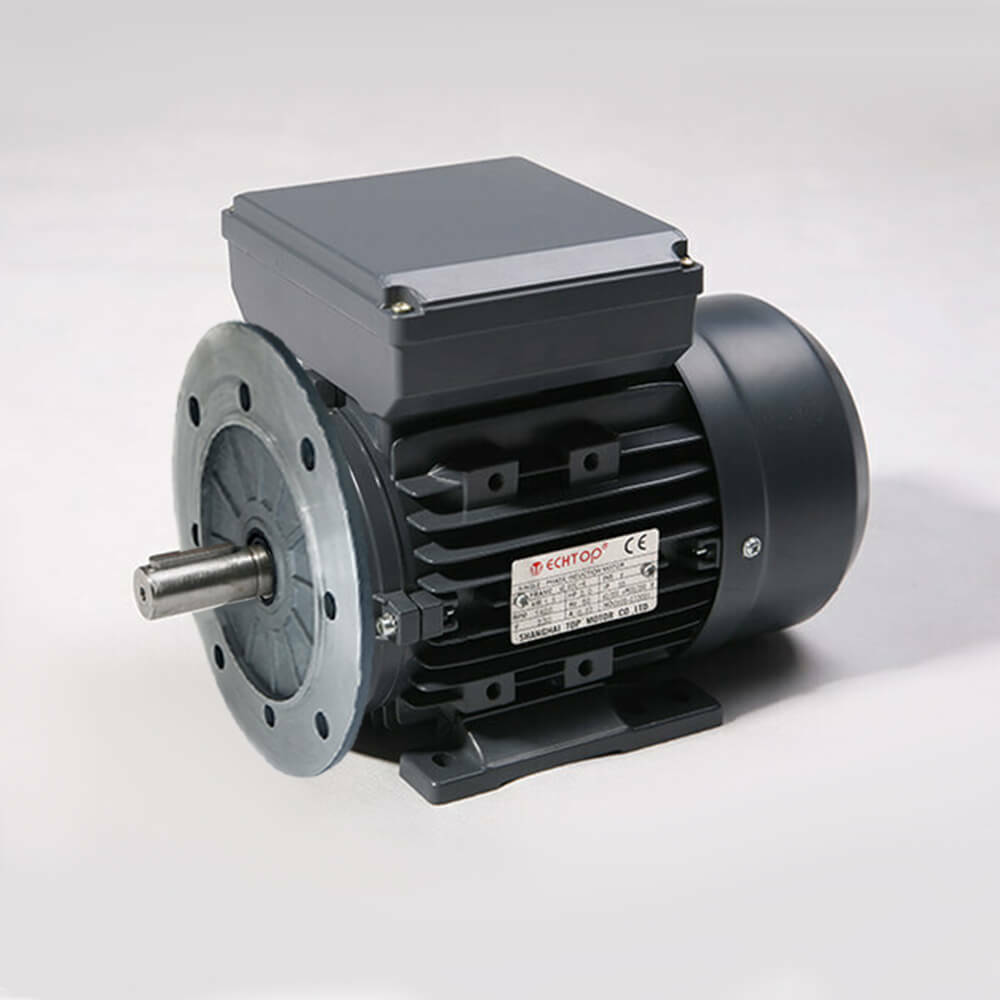

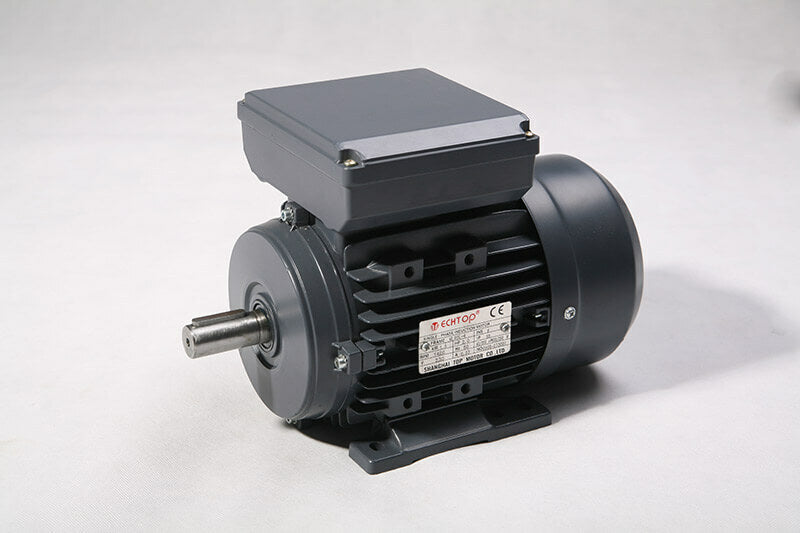

Single-phase motors run from standard 240V single-phase supply — available wherever a standard power outlet exists. They are suited to smaller, lower-power applications: compressors, pumps, fans, and workshop machinery up to around 2.2kW. Above this power level, single-phase motors become physically large relative to their output and are less efficient than three-phase equivalents. Three-phase motors run from a 415V three-phase supply and are the standard for industrial drives — more efficient, simpler in construction (no starting capacitors or centrifugal switches), more reliable, and available in a continuous power range from fractional kW to hundreds of kilowatts.

Frame Size and Mounting

Electric motor frame sizes are standardised — the IEC (metric) frame designation (e.g., 80, 90, 100, 112, 132) defines the shaft height, mounting hole pattern, shaft diameter, and overall dimensions. When replacing a motor, matching the frame size ensures the replacement bolts directly into the existing mounting without fabrication. Foot-mount (B3), flange-mount (B5/B14), and combined foot-and-flange (B35) configurations cover the most common mounting arrangements.

Enclosure Ratings (IP Rating)

Motor enclosure IP (Ingress Protection) rating determines suitability for the environment. IP44 is the minimum for general industrial use — protected against solid objects and water splash. IP55 suits washdown, outdoor, and moderately wet environments. IP66 is required for high-pressure washdown and chemical environments. Totally enclosed fan-cooled (TEFC) motors are the standard for industrial applications, providing enclosure protection alongside external fan cooling for thermal management.

Efficiency Classes

IE3 (Premium Efficiency) is the minimum standard for most industrial motors under the Australian MEPS (Minimum Energy Performance Standards) regulations. IE4 (Super Premium) motors offer further efficiency gains and are increasingly specified in high-duty-cycle applications where the energy saving justifies the premium over the motor's operating life. For motor selection, replacement, and compatibility advice, contact our team.

Motor Selection and Replacement

AIMS Industrial stocks single-phase and three-phase electric motors in common IEC frame sizes for delivery across Australia. When replacing a motor, the data plate provides the frame designation, rated power (kW), rated voltage and phase, full-load speed (RPM), and IP rating — all needed to specify the correct replacement. If the original data plate is illegible or missing, our team can assist with motor selection based on the driven application, required output, and available electrical supply.
