Speed Nuts and Push-On Retainer Nuts for Australian Production Assembly

Speed nuts (also called push-on retainer nuts or U-clip nuts) are pressed-steel components that grip a smooth-shanked screw or stud through spring tension — eliminating the need for a tapped hole or threaded shaft. For Australian production assembly, fitout work, and repair applications where fast attachment is more important than high-load capacity, speed nuts are the everyday choice. AIMS Industrial supplies speed nuts in the styles and sizes Australian trade and industrial customers actually use.

How speed nuts work

The speed nut is a U-shaped or flat pressed-steel component with internal teeth or arms that grip a smooth-shanked screw as the screw is pushed through. The teeth deflect outward as the screw passes, then spring back to grip the screw. The result is fast retention without thread cutting — ideal for high-volume production where a separate threading or tapping step would slow the line.

The speed nut types we stock

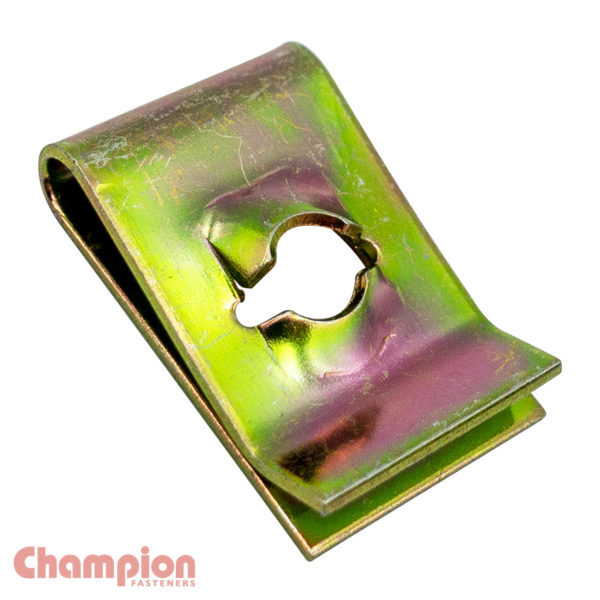

• U-shaped speed nuts — clip onto a panel edge, with arms gripping the screw shank
• Flat speed nuts (push-on retainers) — disc-shaped with internal teeth; push directly onto smooth shafts
• Square speed nuts — for square panel openings rather than round
• J-shaped speed nuts — variation that grips from one side of the panel only
• Threaded speed nuts — combine speed-nut spring tension with threading for adjustable retention

Where speed nuts earn their place

• Automotive trim and panel assembly — interior trim, exterior badges, panel mountings
• Appliance manufacturing — cabinet assembly, panel attachment, decorative trim
• Sheet metal fabrication — fast attachment of brackets and accessories without tapping
• Production assembly — where assembly speed is the dominant cost driver
• Field repair — replacing tabs and clips in existing assemblies

Where NOT to use speed nuts

Speed nuts are light-duty fasteners. Don't use them in:

• Structural or load-bearing applications
• Safety-critical fastenings
• Vibration-prone applications without secondary retention
• Applications where the fastener needs to be removed and refitted multiple times

For higher-load applications, use proper threaded fasteners with washers and locking systems.

Materials

• Carbon steel zinc-plated — the everyday choice for indoor and protected applications
• Stainless steel 304 and 316 — for corrosive and food-grade environments
• Phosphor bronze — for non-magnetic and electrical applications

Sizing

Speed nut sizing is by the screw or stud diameter the nut grips, with secondary specifications for panel thickness range (for U-shaped variants) and overall outer dimensions. Common sizes range from #4 (M3) through 1/4 inch (M6) for general use, with smaller and larger sizes available for specific applications.

Pack quantities

Speed nuts are typically supplied in trade pack quantities of 100-500 per pack, with bulk packs of 1000+ for production work. Match pack size to the assembly volume.

Brands stocked at AIMS

Speed nuts are stocked from quality fastener manufacturers in the standard size range. For specialty sizes or specific OEM-pattern speed nuts, sourcing through our distribution channels covers most requirements.

Companion ranges at AIMS

Speed nuts sit alongside our broader fastener range — see security nuts and clips, retaining washers, screw assemblies, and spring clamps for the related products.

Need help speccing speed nuts for production assembly or specific applications? contact our team — we'll match by screw size, panel thickness, and pack quantity.

People Also Ask — Speed Nuts

Q: What is a speed nut?

A speed nut (also called a push-on retainer nut or U-clip nut) is a pressed spring steel component that grips a smooth-shanked screw or stud through spring tension — eliminating the need for a tapped hole or threaded engagement. Pushing a screw through the internal teeth or arms deflects them outward; they spring back to retain the screw under light pull-out load.

Q: What are speed nuts used for?

Speed nuts are used in production assembly, automotive trim and panel attachment, appliance manufacturing, and sheet metal fabrication where fast screw retention is more important than high load capacity. Their main advantage is eliminating tapping — a screw can be run into untapped sheet metal using a speed nut on the reverse, saving manufacturing time on high-volume assembly lines.

Q: What types of speed nuts are available?

Common types include U-shaped speed nuts (clip over a panel edge with arms gripping the screw), flat/disc speed nuts (push directly onto a smooth shaft), square speed nuts (for square panel openings), J-shaped speed nuts (grip from one side of the panel), and threaded speed nuts (combining spring tension with threaded engagement for adjustable retention).

Q: Are speed nuts reusable?

Speed nuts are typically single-use components. Removing the screw and reinserting it in the same nut deforms the spring arms and reduces their retention force. For assemblies requiring regular disassembly and reassembly, a standard nut and bolt joint should be used instead of a speed nut.

Q: What materials are speed nuts available in?

Speed nuts are available in spring steel (the most common construction for production and automotive assembly) and stainless steel for corrosion-critical applications. The spring steel construction provides the deflection and recovery needed for the push-on retention mechanism; stainless versions suit marine, food processing, and outdoor applications where corrosion would weaken or seize a carbon steel nut.
