Spherical Bushings

Spherical Bushings (Self-Aligning Plain Bearings) for Australian Engineering

Spherical bushings are plain bearings with a spherical inner-and-outer race geometry that allows the inner race to angle relative to the housing — accommodating misalignment in pivot, linkage, and articulation joints where rod ends or precision rotating bearings would be over-engineering. For Australian heavy machinery, agricultural equipment, hydraulic actuators, and mechanical linkages, spherical bushings provide misalignment tolerance with simpler construction and higher load capacity than ball-bearing rod ends. AIMS Industrial supplies spherical bushings in the materials and sizes Australian engineering and maintenance customers use.

How spherical bushings differ from rod ends

• Rod ends — combine a threaded shank with a spherical ball bearing; provide both connection and articulation in one component
• Spherical bushings — provide just the spherical bearing function; the connection is through a separate housing or pin

Rod ends are convenient single-component solutions for low-to-moderate load applications. Spherical bushings handle higher loads with simpler, lower-cost construction — they're the right choice when load capacity is the priority over compact integration.

The spherical bushing types we stock

• Bronze (sintered) spherical bushings — economical, self-lubricating from impregnated oil
• Steel spherical bushings — higher load capacity, requires lubrication

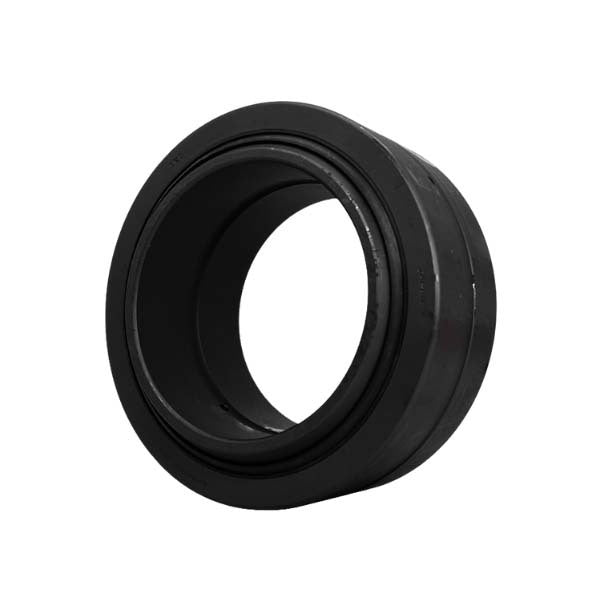

• PTFE-lined spherical bushings — low-friction, self-lubricating, for cleaner applications
• Maintenance-lubricated steel — with grease nipple for periodic re-lubrication

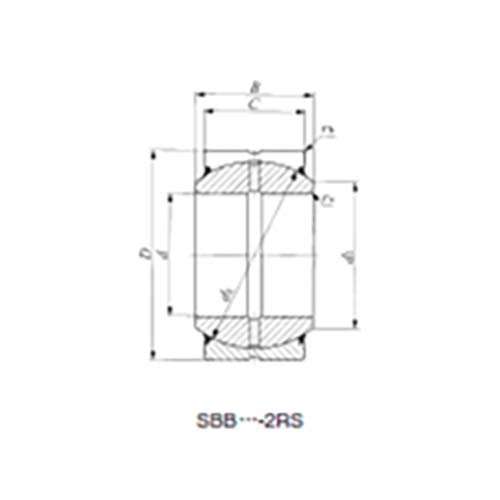

• Sealed spherical bushings — protected against contamination ingress for outdoor and harsh environments

Where spherical bushings earn their place

• Hydraulic and pneumatic cylinder ends — connecting cylinders to driven components with misalignment allowance
• Agricultural machinery — articulation joints in implements, three-point linkages, and trailing equipment
• Heavy machinery linkages — earth-moving equipment, mining machinery, materials handling
• Steering and suspension systems — automotive, industrial, and rolling-stock applications
• Process equipment — articulating arms, lifting jibs, and adjustable mechanical assemblies

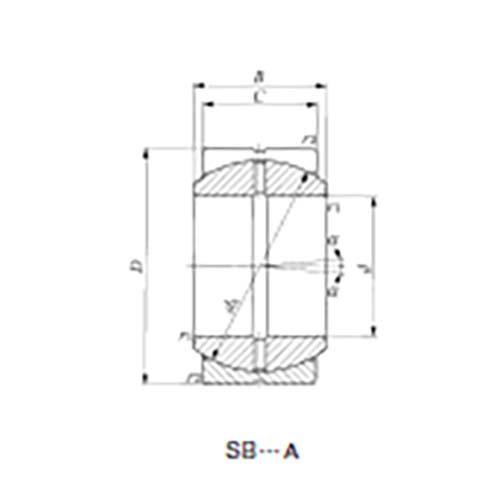

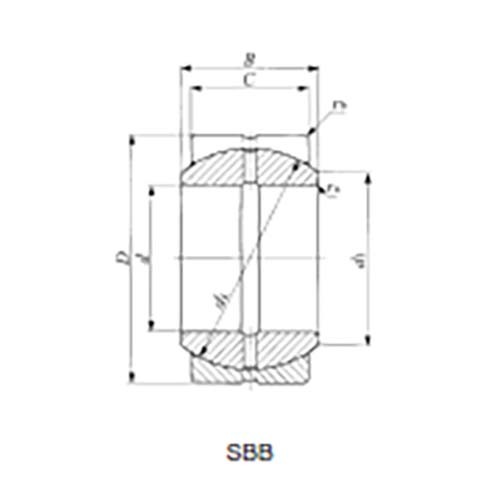

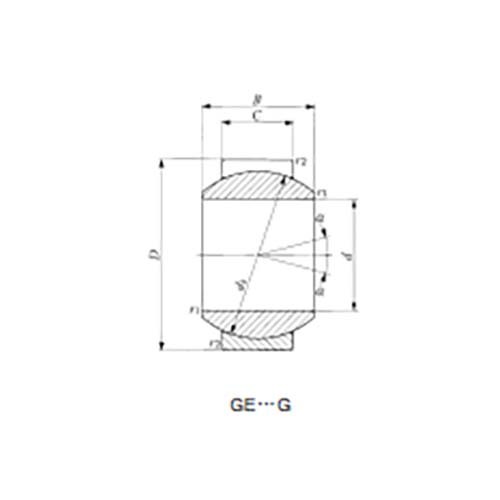

Sizing — bore × OD × width

Spherical bushing sizing is by inner bore (the shaft or pin diameter), outer diameter (the housing bore), and width (axial dimension). Common metric sizes range from 6mm bore through 80mm bore. Match the bushing dimensions exactly to the housing and pin — undersized bushings won't fit the housing, oversized bushings can't be installed.

Angular misalignment tolerance

Spherical bushings typically tolerate 6-13° of angular misalignment depending on the specific design. Exceeding this damages the spherical race and shortens bushing life dramatically. For applications with larger angular movements, alternative bearing types (cylindrical roller bearings with self-aligning capability, or rod ends with larger articulation) may be required.

Lubrication and life

Self-lubricating sintered bronze and PTFE-lined bushings require no external lubrication — the bearing material releases lubricant or provides low-friction running. Maintenance-lubricated bushings require periodic grease application; the typical grease interval depends on duty cycle and operating environment. Sealed bushings often have lifetime lubrication and require no maintenance until replacement.

Brands stocked at AIMS

Spherical bushings are stocked from quality bearing manufacturers across the standard sizes and material types. For specific OEM-pattern bushings or specialty configurations, sourcing through our distribution channels covers most options.

Installation

Spherical bushings are typically press-fit into housings using proper bearing installation tools — never hammer directly on the bushing race. For maintenance-lubricated bushings, fit the grease nipple at installation and apply grease before first operation. Verify the angular alignment of the housing relative to the connected component before applying load.

Companion ranges at AIMS

Spherical bushings sit alongside our broader bearing range — see spherical roller bearings, rod ends, self aligning bearings, and shaft collars for the related products.

Need help speccing spherical bushings for a linkage, hydraulic, or articulation application? contact our team — we'll match by bore, OD, load, and material.
