Rod Ends

Rod Ends and Spherical Bearings for Australian Engineering and Machinery

Rod ends (also called rose joints, heim joints, or spherical bearings) are precision components that combine a threaded shank with a spherical bearing race — providing a connection point that allows angular misalignment between the rod and the load. Used in linkages, control systems, hydraulic and pneumatic actuators, agricultural machinery, and motorsport applications, the right rod end transmits force while accommodating misalignment that would bind a fixed bearing. AIMS Industrial supplies rod ends and spherical bearings across the styles and sizes Australian engineering, manufacturing, and motorsport users need.

The rod end types we stock

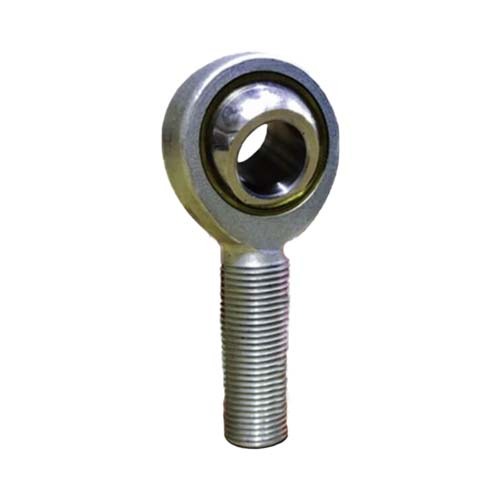

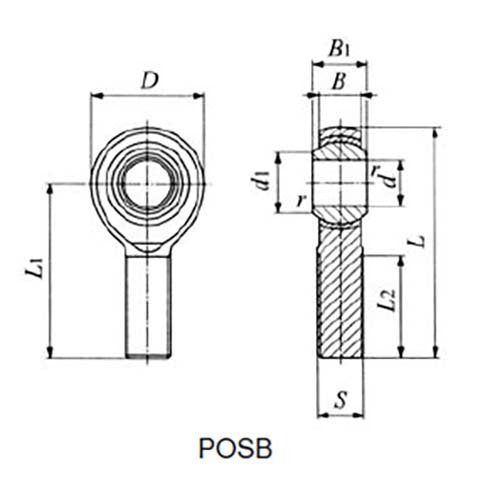

• Male rod ends — external (male) threaded shank, the most common style for connecting to clevis-type linkages

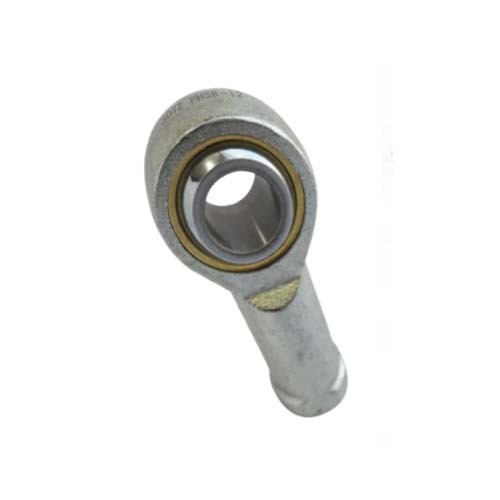

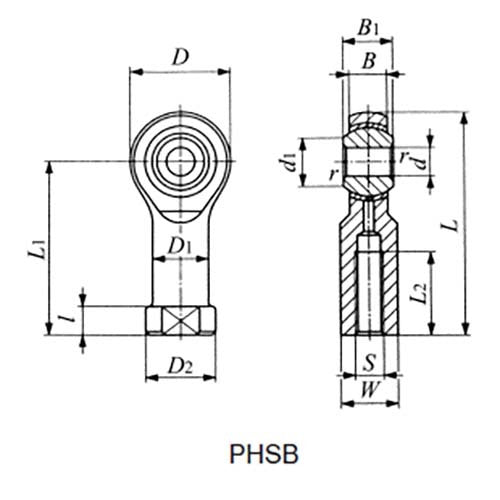

• Female rod ends — internal (female) threaded shank, for connecting to threaded studs or pins
• Self-lubricating rod ends — bronze-bushed or sintered-bronze races that don't require external lubrication
• PTFE-lined rod ends — premium bearings with self-lubricating PTFE liner; longer life and lower friction
• Maintenance-lubricated rod ends — with grease nipple, for applications requiring periodic re-lubrication

Thread sizes and standards

Rod ends are stocked in metric (M5 to M30 and beyond) and imperial (1/4 inch to 1-1/4 inch) thread sizes. Right-hand thread is standard; left-hand thread is available on indent for applications where opposed-thread linkages are needed (allowing tension adjustment by rotating the centre tube without disconnecting either end). Match the thread to the existing linkage or specification.

Where rod ends earn their place

• Mechanical linkages — agricultural equipment, control linkages, throttle and gear linkages
• Hydraulic and pneumatic actuators — connecting cylinder rods to driven components with allowance for angular misalignment
• Motorsport and racing — suspension links, sway bar end-links, steering linkages
• Robotics and automation — connecting linkages where multi-axis movement is required
• Industrial machinery — adjustable links, control rods, and articulation points

Self-lubricating versus PTFE-lined versus maintenance-lubricated

• Self-lubricating bronze — the everyday choice; durable, simple, no maintenance required
• PTFE-lined — for low-friction or contamination-sensitive applications; longer life under steady load
• Maintenance-lubricated — for high-cycle, high-load applications where a fresh grease film extends life significantly

Working load and angular misalignment

Rod end working load capacity depends on the body size, race material, and load direction. Manufacturers publish radial and axial load ratings for each rod end. The maximum angular misalignment is typically 6° to 13° depending on the bearing design — exceeding this damages the race and shortens bearing life dramatically. For applications with large angular movements, alternative bearing types may be required.

Brands stocked at AIMS

Rod ends are stocked from quality manufacturers including SKF, NSK and equivalent brands chosen for race tolerances, finish, and consistent performance. Specialty motorsport-grade and high-load industrial rod ends are available on indent through our distribution channels.

Companion ranges at AIMS

Rod ends sit alongside our broader bearing and linkage range — see needle roller bearings, needle roller inner rings, rigging screws, and turnbuckles for the related products.

Need help with rod end selection or sizing? contact our team — bring us the existing component, the load, and the misalignment requirement and we'll match.
