Square Recess (Robertson) Power Bit Selection — Quick Reference
Square recess (Robertson) bits drive square-drive screws used widely in Canadian-spec hardware + modern decking + outdoor construction. Square drive's high torque + low cam-out makes it superior to Phillips for AU timber framing + decking.
| Robertson Size | Colour Code | Best For |
|---|---|---|
| R0 (Smallest) | Yellow | Small screws + cabinet hardware — #2-#4 screw |
| R1 | Green | Light timber + cabinet — #5-#7 screw |
| R2 (Most Common) | Red | General timber + decking + #8-#10 screw — workshop default |
| R3 | Black | Heavy timber + #12-#14 screw + structural |
| R4 (Largest) | — | Heavy structural + lag bolts |
| 1/4" Hex Shank Format | Quick-change driver compatible | Cordless + impact driver use |
| Impact-Rated (Black Finish) | Impact driver use — heat-treated shock-resistant | Higher torque sustained |
| Long-Reach Bits (75mm+) | Recessed + deep-hole access | Deck + framing + structural |
Why square drive: Stays seated in screw — virtually no cam-out under torque (unlike Phillips). Square drive transmits ~3× the torque of Phillips before slippage. Modern outdoor decking + treated-timber screws use Robertson for this reason. Critical: Match bit size to screw — R2 in R1 screw = damaged screw head; R1 in R2 = excessive wear on bit. Impact-rated for impact drivers (standard bits SHATTER under impact). Companion: hex power bits, socket bit sets, cordless power tools.
Square Recess (Robertson) Power Bits for Australian Trade and Construction

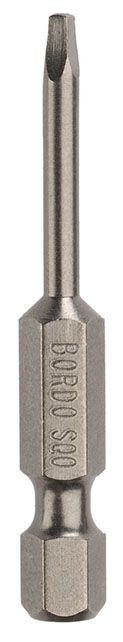

Square recess power bits — also called Robertson bits after the Canadian inventor — drive square-drive screws used widely in Canadian-spec hardware, modern decking and outdoor construction work, and increasingly in Australian timber framing and decking. The square drive's combination of high torque capacity and resistance to cam-out makes it superior to Phillips for high-torque screw driving. AIMS Industrial supplies square recess power bits in 1/4 inch hex shank format for impact drivers and cordless drills.
The square recess sizes
- R0 (smallest) — for very small screws in fine work
- R1 — for #4-#7 screws (small fasteners)
- R2 — the everyday workhorse size — fits most #6-#10 screws including standard decking screws
- R3 — for #12+ screws and heavy-duty fastenings
R2 is by far the most common size in Australian use, particularly for decking and timber-framing work. Stocking spare R2 bits is a sensible workshop practice — running out mid-job stops the work.
Why square recess versus Phillips
- Higher torque capacity — the square drive transmits torque without slipping
- No cam-out under load — the bit stays seated in the recess; doesn't damage the screw head
- Self-holding — the snug bit-to-recess fit holds the screw on the bit during single-handed driving
- Reduced bit wear — without cam-out, the bit's drive faces don't round off as fast as Phillips bits
For Australian decking and timber construction, square recess screws have largely replaced Phillips for these reasons.
Where square recess bits earn their place
- Decking installation — square-drive decking screws are the modern Australian standard
- Timber framing — structural timber screws often use square drive
- Cabinet and joinery work — particularly Canadian-spec or imported hardware
- Outdoor construction — pergolas, retaining walls, garden structures
- Subfloor and structural fastening — high-torque structural screws
Standard versus impact-rated bits
Impact drivers deliver torque pulses that can shatter standard hex bits. Impact-rated bits have a torsion zone in the shank that twists under load to absorb shock. For impact driver use (most decking and construction work), spec impact-rated bits and you'll spend less on replacements. Standard bits suit hand screwdrivers and low-torque drill drivers.
Bit length

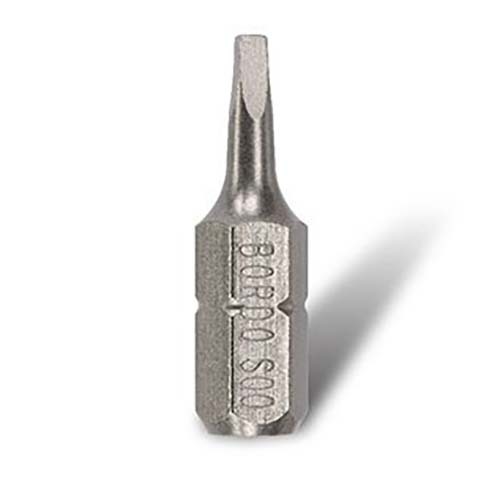

- 25mm (insert bit) — short bit for impact drivers and ratcheting screwdrivers
- 50mm (power bit) — slightly longer for deeper access
- 75-150mm (long-reach) — for deck-board fastening at depth and panel-mounted hardware
Brands stocked at AIMS
Wiha and Bahco cover the square recess power bit range across the standard R1, R2, and R3 sizes. The bit fit accuracy is critical — quality bits seat snugly in the screw recess, while cheap bits have loose fit that causes premature wear and screw recess damage.
Bit life and replacement
Square recess bits last significantly longer than Phillips bits at equivalent torque — the elimination of cam-out is one of the main reasons. Typical bit life: 500-1500 fasteners on production work, varying with screw size, substrate, and torque. Replace bits when the drive corners visibly round off; worn bits cause screw head damage that costs more in fastener replacement than the bit replacement saved.
Companion ranges at AIMS
Square recess power bits sit alongside our broader bit range — see screwdriver bits, Phillips power bits, Pozidriv power bits, and decking screws for the related products.
Need help with bit sizing for specific decking, framing, or imported hardware? contact our team — we'll match R-size, length, and impact rating.
