Torx Power Bits

Torx Power Bits for Australian Trade and Production Fastening

Torx power bits drive the six-point star (Torx) drive screws found increasingly across automotive, electronic, structural, and trade applications. The Torx geometry transmits torque without the cam-out that plagues Phillips drives — making it the go-to drive type for high-torque fastening and applications where damaged screw heads would cost time and money. AIMS Industrial supplies Torx power bits in 1/4 inch hex shank format for impact drivers, cordless drills, and ratcheting screwdrivers, in standard and impact-rated formats.

The Torx sizes we stock

• T6, T7, T8 — small Torx for electronics and instrument fastening
• T10, T15, T20 — medium Torx for automotive interior, electronics, and small mechanical work
• T25, T27, T30 — the everyday workshop sizes for general Torx fastening
• T40, T45 — larger Torx for automotive engine and chassis work
• T50, T55 — heavy Torx for structural and large mechanical fastening

T20 and T25 are the most common sizes in general Australian use. T30 is common in automotive work. Stocking spare bits in the high-use sizes prevents production stoppages when bits wear.

Why Torx

• No cam-out under torque — bit stays seated in the recess; doesn't damage the screw head
• Higher torque capacity — six contact points distribute torque better than Phillips
• Self-holding — snug bit-to-recess fit holds the screw on the bit during single-handed driving
• Reduced bit wear — without cam-out, the bit's drive faces don't round off as fast
• Tamper-resistant variants — Torx security (with central pin) for tamper-resistant applications

Standard versus impact-rated bits

Impact drivers deliver torque pulses that can shatter standard hex bits. Impact-rated Torx bits have a torsion zone in the shank that twists under load to absorb shock — they survive in impact drivers where standard bits snap. For impact driver use (most automotive and trade work), spec impact-rated bits and you'll spend less on replacements.

Where Torx bits earn their place

• Automotive engine and chassis — modern vehicles use Torx extensively
• Electronics and instrument assembly — small Torx in chassis fastening
• IT equipment — server and computer chassis fastening
• Structural and decking — modern decking screws often use Torx drive
• European-spec equipment — Torx is common across European-origin machinery

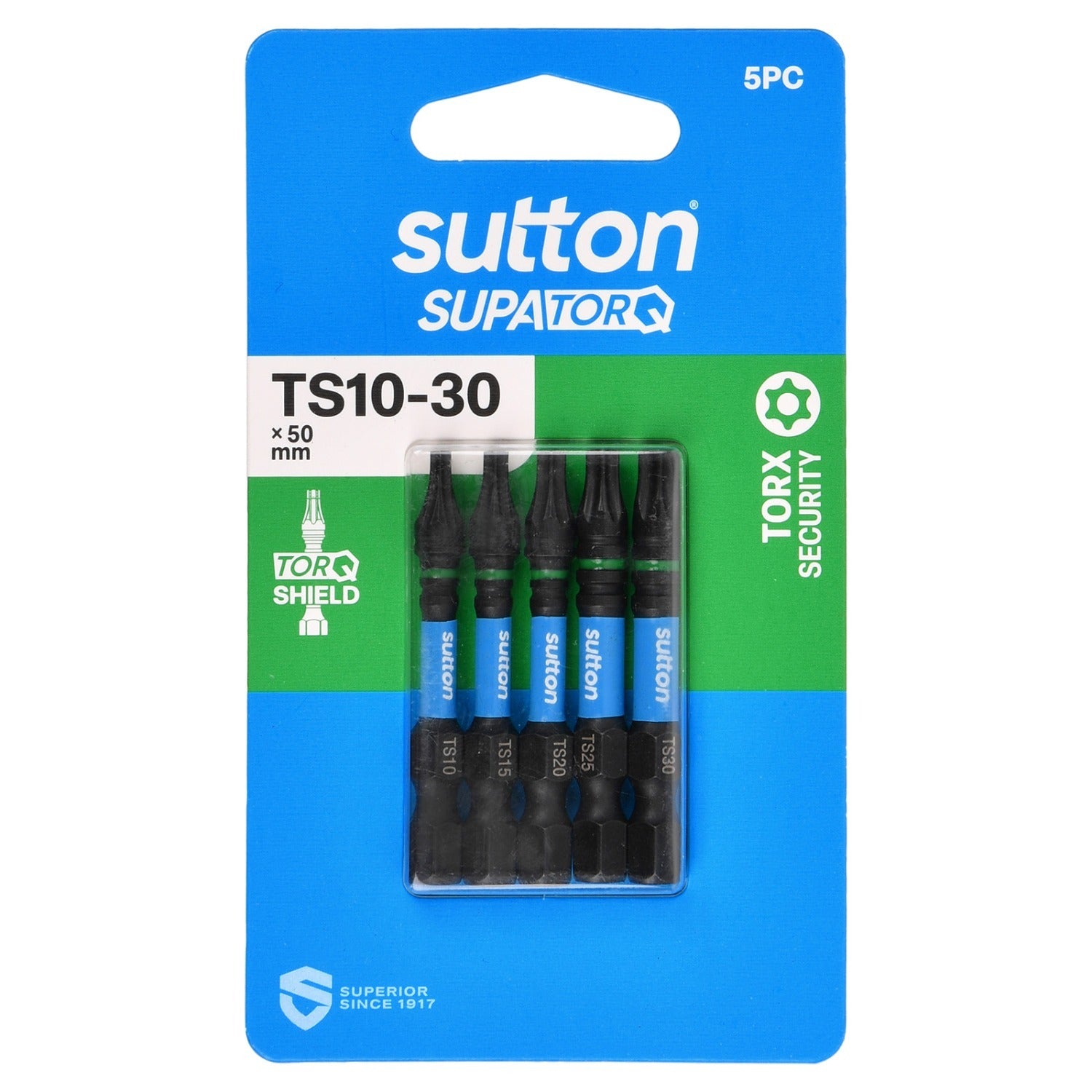

• Tamper-resistant fasteners — Torx security with pin-in-Torx variants

Bit length

• 25mm (insert bit) — short bit for impact drivers and ratcheting screwdrivers
• 50mm (power bit) — slightly longer for deeper access
• 75-150mm (long-reach) — for deep-recess and panel-mounted fasteners

Brands stocked at AIMS

Wiha and Bahco are our preferred brands for Torx power bits — chosen because the tip geometry is precision-ground, the impact-rated versions actually deliver on the promise, and the bit life justifies the price difference over budget alternatives. Cheap unbranded Torx bits often have soft tips that wear quickly under impact use.

Bit life

Quality Torx bits last significantly longer than Phillips at equivalent torque — the elimination of cam-out is the main reason. Typical bit life: 500-1500 fasteners on production work depending on torque and material. Replace when the drive corners visibly round off; worn bits cause screw recess damage that costs more in fastener replacement than the bit replacement saved.

Companion ranges at AIMS

Torx power bits sit alongside our broader bit range — see Torx screwdrivers, screwdriver bits, Phillips power bits, and security bits for the related products.

Need help speccing Torx bits for automotive, electronics, or trade work? contact our team — we'll match Torx size, length, and impact rating.
