Product Guides
wire-rope-slings-rigging-guide
What is a shackle? A shackle is a U-shaped lifting fitting closed by a pin, used to connect a wire rope sling, chain sling, or synthetic sling to a load or lifting point. The two main types are bow shackles (D-shape with a wider curve — handles loads from multiple angles, ideal for sling-to-load connections) and dee shackles (straight sides — narrower, used for inline tension where loads pull straight through the pin). Lifting-rated shackles are stamped with a Working Load Limit (WLL) and manufactured to AS 2741. Wire rope construction Wire rope is constructed from individual steel wires twisted into strands, and strands twisted around a central core. The construction designation — for example 6×19 or 6×36 — describes the number of strands and the number of wires per strand. Understanding these designations is the foundation of correct wire rope selection. 6×19 classification A 6×19 rope has 6 strands, each containing 16 to 26 wires. The relatively fewer, larger wires per strand make this rope stiffer and more resistant to surface abrasion — the thick outer wires resist wear from contact with sheaves, drums, and abrasive loads. The trade-off is reduced flexibility and lower fatigue resistance from repeated bending. 6×19 is the standard choice for lifting slings, boom pendants, and static or semi-static applications where abrasion resistance matters more than flexibility. 6×36 classification A 6×36 rope has 6 strands, each containing 27 to 49 wires. More, finer wires per strand produce a significantly more flexible rope with higher fatigue resistance from repeated bending cycles. The finer wires are more susceptible to surface abrasion than 6×19. 6×36 is the preferred choice for crane hoist ropes, running ropes on winches and machinery, and any application involving continuous bending over sheaves or drums. 7×7 and 7×19 — aircraft cable construction These smaller-diameter constructions (7 strands of 7 or 19 wires) are sometimes called "aircraft cable" in trade catalogues. They offer high flexibility in small diameters but are not rated for overhead lifting applications. They are appropriate for marine rigging, guy wires, safety lines, and similar light-duty control and tension applications. Do not use 7×7 or 7×19 construction for vertical lifting of personnel or equipment in industrial applications. Core type: IWRC vs fibre core The core runs through the centre of the rope and supports the strands. Two core types are standard: IWRC (Independent Wire Rope Core): A wire rope core — essentially a smaller wire rope at the centre. IWRC provides superior crush resistance, maintains rope geometry under side loads, and increases the rope's overall breaking strength by approximately 7.5% compared to the equivalent fibre core rope. IWRC is the correct choice for cranes, hoists, and any application where the rope passes over sheaves or is wound on a drum under tension. Fibre core (FC): A core of synthetic or natural fibre. More flexible than IWRC, provides cushioning between strands, and is preferred in applications where flexibility is prioritised over crush resistance. Less suitable for heavy drum-winding or applications involving significant side loading. Common in sling construction and lighter-duty lifting applications. Grade and finish Wire rope is available in several strength grades: IPS (Improved Plow Steel), EIPS (Extra Improved Plow Steel), and EEIPS (Extra Extra Improved Plow Steel) — each progressively stronger. For general industrial and lifting use, EIPS is the standard grade. Finish options include bright (uncoated), galvanised, and stainless steel. Galvanised wire rope offers corrosion protection for outdoor and marine environments. Stainless steel (typically 316 grade) is used where maximum corrosion resistance is required — marine, food processing, chemical environments — but carries a significant cost premium and has lower strength than equivalent carbon steel rope. WLL, SWL, and Rated Capacity — Australian terminology The terminology used in Australian rigging and lifting has changed, and using the wrong terms creates both compliance and safety risks. WLL (Working Load Limit) is the current standard term for the maximum load a piece of rigging equipment — sling, shackle, hook, hoist — is rated to carry under normal conditions. WLL is calculated by dividing the minimum breaking load (MBL) by a design factor (safety factor). For wire rope slings the design factor is 5:1; for chain slings it is 4:1; for synthetic slings it is 5:1. A sling with a 50 kN MBL and a 5:1 design factor has a WLL of 10 kN (approximately 1 tonne). SWL (Safe Working Load) is the old term, replaced by WLL. Australian Standard AS1418.1-2002 removed SWL from the standard for cranes, hoists, and winches. In the current framework, WLL is used for items below the hook (slings, shackles, hooks) and Rated Capacity is used for the crane or hoist itself. You will still encounter SWL on older equipment and in older documentation — treat it as equivalent to WLL for practical purposes, but specify WLL in new work. ⚠️ WLL is not a safety factor — it already includes oneA common misunderstanding is treating WLL as a conservative limit that can be exceeded with care. It cannot. The WLL is the maximum permissible working load. The safety factor (4:1 or 5:1) is built into the WLL calculation to account for dynamic loading, shock loading, and the statistical variation in rope and hardware strength. Exceeding the WLL eliminates that safety factor and takes the equipment into territory where failure probability rises sharply. For lifts with significant shock loading or dynamic movement, apply an additional service factor — not by exceeding the rated WLL, but by selecting equipment with a higher WLL. For a complete breakdown of Australian rigging terminology — including why SWL was retired, how to calculate WLL from MBL, sling angle derating tables, and the weakest link rule — see our SWL vs WLL vs MBL Guide. Sling types: wire rope, chain, and synthetic Three sling types dominate industrial lifting: wire rope, alloy chain, and synthetic (web or round). Each has specific strengths, limitations, and correct applications. Selecting the wrong type for the environment or the load is a common source of premature failure and unsafe lifts. Factor Wire rope sling Alloy chain sling Synthetic (web / round) Design factor 5:1 4:1 5:1 Heat resistance Moderate (derate above 100°C) High (usable to 400°C alloy chain) Poor — nylon degrades above 90°C; polyester above 150°C Sharp edges Tolerates moderate contact Best — chain handles sharp edges well Very poor — must be protected from any sharp contact Load surface protection Poor — will mark and damage soft surfaces Poor — will mark surfaces Excellent — wide flat web protects polished and fragile loads Flexibility Good Good — adjustable length via shortening clutch Excellent — most flexible and lightest Corrosion resistance Moderate (galvanised or SS available) Moderate (stainless available at cost) Good — polyester resists most chemicals Inspection ease Moderate — look for broken wires, kinks Easy — look for stretch, link wear, deformation Easy — cuts, burns, chemical attack visible Typical application General heavy industrial, outdoor, crane lifts Hot work, foundries, sharp-edged loads, adjustable lifts Finished surfaces, machinery, precision loads For Grade 80 and Grade 100 chain sling configurations, WLL tables, and sling angle de-rating calculations, see the Chain Sling Guide. Hitch types and WLL factors Every lift uses one of three fundamental hitches — or a combination of them. The hitch configuration directly affects the effective WLL of the sling, and this is not a minor adjustment. Getting the hitch type wrong can mean working at twice the intended WLL without realising it — or losing half the sling's capacity through incorrect wrapping. Vertical hitch (straight hitch) The sling runs vertically from the hook to the load, with one eye on the hook and the other attached directly to the load. The sling's full rated WLL applies. This is the baseline: all WLL ratings on sling tags are referenced to vertical hitch. Use for loads with a reliable lifting point directly above the centre of gravity, such as an engineered lifting lug or a certified lifting point on machinery. Choker hitch The sling wraps around the load and the eye is passed through the opposite eye (or a dedicated choker fitting), forming a self-tightening loop that grips the load as tension builds. Effective WLL is 75–80% of the vertical WLL when the choke angle is 120° or greater. At tighter choke angles, the WLL reduces further. The choker hitch is useful for irregularly shaped loads with no lifting lug, but it must not be used on loads that would be damaged by constriction, and the rope must seat fully into the choke before the lift begins. Basket hitch The sling cradles the load beneath it — both eyes to the hook, load supported in the bight of the rope. When the legs hang vertically (90° to horizontal), each leg carries half the load, effectively giving up to 200% of the vertical WLL. This is the only hitch that multiplies capacity. The multiplication factor reduces as the basket angle narrows — see the sling angle section below. The load must be balanced; an unbalanced load in a basket hitch will slide to the low side and potentially roll off the sling. Sling angle: the most misunderstood factor in rigging Sling angle — the angle between the sling leg and the horizontal — is the single most commonly underestimated factor in rigging calculations. Most people intuitively feel that two sling legs sharing a load must be safer than one. They are, but only when the angle is favourable. As the angle decreases (the legs spread wider, or in a basket hitch, the horizontal distance between hook and load attachment increases), the tension in each leg rises sharply — far beyond what simple geometry suggests. At 90° (sling legs perfectly vertical), the tension in each leg equals half the load weight — this is the ideal case. At 30° from horizontal (a very wide spread or a long, flat basket hitch), the tension in each leg equals the full load weight. Adding a second leg has provided zero additional capacity. Below 30°, the tension exceeds the load weight in each leg — the two-leg arrangement is actually more dangerous than a single vertical sling of the same rating. The angle factor (reduction multiplier applied to the sling WLL) at common angles: Sling angle from horizontal Angle factor Effective WLL — 2-leg bridle at 1t per-leg rating Note 90° 1.000 2.00 t Ideal — legs perfectly vertical 75° 0.966 1.93 t Negligible reduction 60° 0.866 1.73 t Commonly used; acceptable 45° 0.707 1.41 t Significant reduction — recalculate 30° 0.500 1.00 t ⚠️ Each leg carries the full load — no benefit from two legs <30° <0.500 <1.00 t 🚫 Dangerous — leg tension exceeds load weight. Do not rig below 30° Most rigging standards — including Australian practice guidance — set 30° as the minimum permissible sling angle. Rigging below 30° is prohibited on most Australian worksites. If the geometry of the lift forces a low sling angle, the correct response is to use longer slings (raising the hook point relative to the attachment points increases the angle), not to accept the reduced capacity. In practice: before any multi-leg lift, sketch the geometry and calculate or estimate the sling angle. If in doubt, measure the height from attachment point to hook and the horizontal distance between attachment points, then calculate: sling angle = arctan(height ÷ half-horizontal-distance). If this gives an angle below 60°, reconsider the rigging arrangement. Shackles: D shackle vs bow shackle, screw pin vs safety bolt Shackles connect slings to loads, slings to hooks, and hardware to hardware. They are the most commonly purchased rigging item — d shackle and bow shackle together represent some of the highest search volumes in the rigging category for a reason. For a full guide to shackle grades, WLL tables and AS 3776, see our Bow Shackle & D-Shackle Guide. Getting the shackle wrong does not always produce an immediate failure — it can produce a slow-developing failure as the pin loosens under load rotation, or a sudden failure when a D shackle is side-loaded beyond its rated direction. D shackle (chain shackle) The D shackle has a narrow, D-shaped bow designed to carry load in one direction: along the axis of the shackle body, through the pin. It is strongest in this straight-line configuration. Side loading — force applied across the width of the bow — drastically reduces the shackle's capacity and can cause the bow to open or distort without the pin failing first. D shackles are the correct choice for single-point connections where the load direction is predictable and stable: connecting a sling eye to a chain link, attaching a single-leg sling to a machined lifting lug, or creating a point-to-point connection in a rigging assembly. They are not suitable for connecting multiple sling legs or for applications where the load direction may rotate or shift. Bow shackle (anchor shackle) The bow shackle has a wider, rounded bow that can accommodate multiple sling eyes or accept load from multiple directions without the severe derating that affects a D shackle under side load. This makes the bow shackle the correct choice for multi-leg sling assemblies, angled loads, and any application where load direction may shift during the lift. Bow shackles have a lower WLL than D shackles of the same pin diameter because the wider bow creates higher bending stress in the body. They also take up more space — relevant when working in tight rigging assemblies. For most crane lifting and rigging work on construction and industrial sites in Australia, the bow shackle is the standard general-purpose choice. Screw pin vs safety bolt (bolt-type) shackle Both bow and D shackles are available with two pin types, and the choice matters as much as the shackle type. Screw pin shackles have a threaded pin that is wound in by hand. They are fast to connect and disconnect, making them convenient for frequent pick-and-place operations where the rigging configuration changes between lifts. However, a screw pin can rotate and unwind under vibration or load rotation — particularly when used in a choker hitch where the sling naturally rotates as it tightens. If a screw pin shackle is used in any application involving vibration, rotation, or sustained load, the pin must be moused (secured) with wire through the pin hole to prevent it backing out. Safety bolt (bolt-type) shackles have a smooth, unthreaded bolt pin locked by a nut and cotter pin (split pin). They cannot unwind under vibration or load rotation. They take longer to fit and remove, making them less convenient for frequent re-rigging but correct for permanent or semi-permanent installations, vibrating machinery, rotating loads, and any overhead lift where a dropped pin is a hazard. Safety bolt shackles are the required type for most permanent lifting point installations on Australian industrial sites. Key rules for shackle use: Never side-load a D shackle — use a bow shackle if the load direction is not strictly axial. Never cross-load a shackle pin — the load must bear on the bow, not the pin. Never use a shackle as a hook by passing the pin through a load rather than the bow through the attachment point. Mouse screw pin shackles in any application with vibration, rotation, or sustained load. Rated shackles in Australia should comply with AS2741-2002. Check for a WLL stamp on the bow. Wire rope fittings and terminations Wire rope slings and assemblies require end terminations — the fittings that connect the rope end to the load, the hook, or the next piece of hardware. Termination type significantly affects the efficiency of the connection: how much of the rope's breaking strength is retained at the termination. Termination efficiency Termination type Efficiency (% of rope MBL retained) Notes Poured socket (zinc or resin) 100% Highest efficiency; used on crane ropes and critical installations; requires professional fitting Swaged (mechanical press fitting) 95–100% Common on factory-made slings; requires swaging press; reliable and compact Flemish eye splice (mechanical) 90–95% The standard for wire rope slings; splice unwinds the strands and reforms around a thimble; professional fabrication Hand-tucked splice 80–90% Older method; less consistent than mechanical splice; rarely used in new sling fabrication Wedge socket 75–90% Field-fittable without special tools; efficiency variable — depends on correct wedge seating and wire tail management Wire rope clips (U-bolt grips) 75–80% Field-fittable; efficiency and safety entirely dependent on correct installation — see section below Thimbles A thimble is a grooved metal insert that fits inside the eye of a wire rope sling at the termination point. Its purpose is to protect the wire rope from the sharp-radius bending it would experience if the eye were draped directly over a hook or shackle pin. Without a thimble, the wires at the eye contact point are bent sharply, reducing the effective strength of the termination and accelerating fatigue at that point. All rigging-grade wire rope slings should be thimbled. The d/d ratio (ratio of the thimble pin/contact diameter to the rope diameter) should be a minimum of 6:1 for the thimble to preserve the full rated efficiency of the termination. Wire rope clips — never saddle a dead horse Wire rope clips (also called Crosby clips, bulldog grips, or U-bolt rope clamps — distinct from the U-bolt fastener family covered in our U-Bolt Guide) are the most field-accessible way to form an eye in a wire rope. They are also the most commonly misused rigging component on Australian worksites. The consequences of incorrect clip installation are severe — not a gradual failure but a sudden, complete loss of termination under load. A wire rope clip consists of a U-bolt and a saddle (bridge). The correct installation rule, universally taught in rigging courses and remembered as a mnemonic: ✅ "Never saddle a dead horse"The saddle (bridge) always bears on the live rope — the load-carrying section. The U-bolt always bears on the dead end (the short tail). Installing the saddle on the dead end and the U-bolt on the live rope crushes the load-bearing wires and can reduce termination efficiency to below 50%, with the additional risk of the tail pulling through under load.If you're forming a thimble eye: the saddle bears on the rope coming off the thimble (the live section running to the load); the U-bolt bears on the tail coming back alongside the thimble. Additional clip installation requirements: Minimum number of clips: The number of clips required depends on rope diameter. General guidance: 3 clips for rope up to 19 mm; 4 clips for 20–25 mm; 5 clips for 26–32 mm. Always verify with the clip manufacturer's data — fewer clips than specified dramatically reduces holding capacity. Clip spacing: Space clips at a minimum of 6 rope diameters apart, measured between the U-bolt centres. Clips packed too closely together cannot develop the friction grip needed for rated holding capacity. Tightening torque: Clip nuts must be tightened to the manufacturer's specified torque — not "hand tight plus a bit". Under-tightened clips slip; over-tightened clips crush wires. Retighten after the initial load is applied — the rope will compress and seat under the first load, reducing nut tension. Dead end tail length: The tail beyond the last clip must extend at least 6 rope diameters past the clip to ensure adequate holding length. Inspection and discard criteria Wire rope and rigging equipment must be inspected before each use and formally inspected at regular intervals in accordance with AS4991 (lifting components) and the relevant equipment standard. The person performing the inspection must be competent to identify the defects listed below. Rigging hardware that fails inspection must be taken out of service immediately — not tagged for later assessment, not returned to the yard for review. Out of service means out of service. Wire rope — discard when any of the following are present Broken wires: 6 or more broken wires in any one rope lay length in running rope (rope wound on drums or passing over sheaves); 3 or more broken wires in a single strand within one lay length. For slings, any broken wires in the eye or termination zone are cause for immediate discard. Kinks: Any kink — a permanent deformation where the wires have been displaced from their helical path — is a discard condition. Kinks cannot be straightened without permanently compromising the rope structure at that point. Birdcaging: A sudden release of load or a severe shock load can cause the strands to spring outward from the core, creating a birdcage appearance. Discard immediately. Corrosion: Surface rust on its own may not be cause for discard (lubricate and re-inspect), but pitting — corrosion that has penetrated below the wire surface — is a discard condition. Significant internal corrosion may not be visible externally; core-level corrosion is indicated by a rope that is stiffer than normal, dry, and discoloured when the strands are opened. Diameter reduction: A reduction in overall rope diameter of more than 3% from the nominal diameter indicates internal core failure or severe internal wear. Measure with a calliper at multiple points. Heat damage: Blue or straw discolouration of the wires indicates the rope has been exposed to temperatures that may have altered the wire's mechanical properties. Discard. Synthetic slings — discard when any of the following are present Any cut, abrasion, or tear that penetrates the load-bearing fibres (not just the outer jacket) Burns or heat damage visible as glazed, melted, or charred fibres Chemical attack — stiffness, brittleness, or discolouration from exposure to acids, alkalis, or solvents Missing, illegible, or detached identification label (the tag is mandatory — a sling without a legible WLL tag must not be used) Knots — never tie a knot in a synthetic sling to shorten it; this creates a stress concentration and reduces capacity by 50% or more Shackles — discard when any of the following are present Deformation of the bow — any visible bending or opening of the bow shape Wear on the pin or the inside of the bow exceeding 10% of the original diameter Cracks, gouges, or impact marks on the bow body Thread damage on screw pin shackles preventing full seating of the pin Missing cotter pin (split pin) on safety bolt shackles — never replace with wire or improvised locking methods No WLL marking — unrated shackles must not be used in lifting or rigging applications Inspection tagging All rigging equipment used in Australian industrial workplaces must be tagged and current. Colour coding for inspection tags follows a national cycle — the current colour indicates the equipment has passed inspection in the current period. Equipment with an out-of-date or missing tag must not be used, regardless of its apparent condition. The inspection tag confirms competent inspection, not just physical serviceability. Related rigging guides: Electric Chain Hoist Guide · Jib Crane Guide · Snatch Block Guide · Turnbuckle Guide For transport applications — securing loads on flatbeds, trailers, and low loaders — chain tie-down systems with load binders are the heavy-duty alternative to synthetic webbing straps. Load binders apply rated tension across Grade 70 transport chain under the NHVR Load Restraint Guide 2025. See the Load Binder Guide for ratchet vs lever binder comparison, G70 chain sizing, and NHVR-compliant lashing calculations. Frequently asked questions What is the difference between WLL and SWL? WLL (Working Load Limit) is the current Australian standard term for the maximum load a piece of rigging equipment is rated to carry under normal conditions. SWL (Safe Working Load) is the old term, removed from Australian Standard AS1418.1 in the 2002 revision. They describe the same concept — the maximum permissible working load, calculated by dividing the minimum breaking load by a design (safety) factor. For lifting equipment above the hook (the crane itself), the current term is Rated Capacity. Use WLL for all rigging hardware — slings, shackles, hooks, and lifting points. What is a wire rope sling? A wire rope sling is a length of wire rope with formed eyes at one or both ends, used to connect a load to a crane hook or other lifting device. The eyes are typically formed using a Flemish splice around a steel thimble, or by swaged ferrule, providing a rated connection point. Wire rope slings are available in single-leg, two-leg, three-leg, and four-leg configurations. The WLL of a multi-leg sling assumes a specific angle — always check the tag for the rated angle and derate if the actual rigging angle is shallower. What is sling angle and why does it matter? Sling angle is the angle between the sling leg and the horizontal. As the angle decreases (the sling legs spread further apart), the tension in each leg increases for the same total load. At 60° from horizontal, each leg of a two-leg bridle carries 15% more than it would at 90°. At 45°, it carries 41% more. At 30°, each leg carries the same tension as if it were supporting the entire load alone — two legs provide no additional capacity at this angle. Below 30°, the tension in each leg exceeds the load weight, and this configuration is prohibited in most Australian rigging standards. Always rig with sling angles above 30° and calculate the reduced WLL for any angle below 90°. What is the difference between a D shackle and a bow shackle? A D shackle (chain shackle) has a narrow, D-shaped bow designed for in-line loading only. It is strong in its intended direction but degrades rapidly under side loading. A bow shackle (anchor shackle) has a wider, rounded bow that can accept load from multiple directions and can accommodate multiple sling eyes. The bow shackle is the standard choice for crane lifting and multi-leg sling assemblies. D shackles are used for single-point in-line connections where the load direction is controlled. Never side-load a D shackle. What is the difference between a screw pin and safety bolt shackle? A screw pin shackle has a threaded pin that is wound in by hand — fast to connect and disconnect, suitable for frequent re-rigging. However, screw pins can rotate and unwind under vibration or load rotation. If used in vibrating or rotating applications, the pin must be moused (wired shut). A safety bolt (bolt-type) shackle has a smooth pin locked by a nut and cotter pin — it cannot unwind and is the required type for permanent installations, overhead lifts, and any application involving vibration or load rotation. What does "never saddle a dead horse" mean in rigging? It is a mnemonic for correct wire rope clip installation. The saddle (bridge) of the clip always bears on the live rope — the load-carrying section. The U-bolt always bears on the dead end (the short tail). Installing the saddle on the dead end crushes the load-bearing wires and dramatically reduces termination efficiency, creating a high risk of the tail pulling through under load. Every wire rope clip installation must follow this rule, plus the correct number of clips for the rope diameter (minimum three for most sizes) and the specified tightening torque. How many wire rope clips do I need? The minimum number of clips depends on rope diameter. As a general guide: 3 clips for wire rope up to 19 mm diameter; 4 clips for 20–25 mm; 5 clips for 26–32 mm. Always check the clip manufacturer's specification for the exact rope diameter in use — the manufacturer's data takes precedence. Clips must be spaced a minimum of 6 rope diameters apart and tightened to the specified torque. Retighten after the first load is applied, as the rope will compress and seat, reducing nut tension. What is the difference between 6×19 and 6×36 wire rope? Both designations describe 6-strand wire rope. 6×19 has 16–26 wires per strand — fewer, larger wires that make it stiffer and more abrasion-resistant but less flexible and less fatigue-resistant. It is the standard for lifting slings, pendants, and static applications. 6×36 has 27–49 wires per strand — more, finer wires that make it flexible and fatigue-resistant, suitable for running ropes on cranes, winches, and sheave systems where repeated bending is the primary demand. The finer wires in 6×36 are more susceptible to surface abrasion than 6×19. What is IWRC in wire rope? IWRC stands for Independent Wire Rope Core — a small wire rope that runs through the centre of the main rope, supporting the strands. IWRC provides superior crush resistance and maintains rope geometry under side loads and drum-winding pressure, adding approximately 7.5% to the rope's overall breaking strength compared to an equivalent fibre core rope. IWRC is the correct core type for crane hoist ropes, winch lines, and any application involving drum winding or significant side loading. Fibre core (FC) is more flexible and used in slings and light-duty applications where flexibility matters more than crush resistance. When should I discard wire rope? Discard wire rope immediately if you find: 6 or more broken wires in any one rope lay length (in running rope); 3 or more broken wires in a single strand within one lay; any kink (permanent bend deformation); birdcaging (strands sprung outward from the core); pitting corrosion below the wire surface; reduction in overall rope diameter exceeding 3% of nominal; or heat discolouration (blue or straw tint on the wires). In slings, any broken wires at the eye or termination zone are an immediate discard condition regardless of quantity. Can I shorten a synthetic sling by tying a knot? No. Tying a knot in a synthetic sling creates a severe stress concentration at the knot and reduces the sling's capacity by 50% or more — while the WLL tag still shows the unmodified rating. The correct way to shorten a sling is to use a shortening clutch, a connecting link, or a shackle to take up slack in the configuration. Synthetic slings with knots must be removed from service. What Australian standards apply to lifting slings and rigging? Key standards: AS3569 (steel wire ropes — product specification), AS1666 (wire rope slings), AS3637 (web slings), AS3776 (lifting components — shackles), AS2741 (shackles), AS4344 (chain slings), AS4991 (lifting components — general requirements), and AS1418.1 (cranes, hoists and winches — general requirements, which defines WLL and Rated Capacity). All rigging equipment used in Australian industrial workplaces must be inspected regularly by a competent person and tagged under the current colour code cycle. AIMS Industrial stocks wire rope slings, synthetic web slings, chain slings, and rigging hardware including shackles, thimbles, wire rope clips, and swaged ferrules. For help selecting the right sling type, configuration, and WLL for your application, contact our team. People Also Ask — Wire Rope Slings and Rigging Q: What is the minimum safety factor for wire rope slings in Australia? Under AS 2741, the minimum design factor (safety factor) for wire rope slings used in general lifting is 5:1, meaning the minimum break force of the rope must be at least five times the working load limit (WLL). Some applications — including crane main hoisting ropes and man-riding applications — require higher design factors. Always confirm the design factor with the sling manufacturer's data. Q: How often should wire rope slings be inspected? Wire rope slings must be inspected before each use by the operator and formally inspected by a competent person at intervals determined by frequency of use and operating conditions — at minimum annually. AS 2741 specifies discard criteria including broken wires, kinking, crushing, corrosion, and heat damage. Any sling showing these defects must be removed from service immediately and destroyed to prevent re-use. Q: What information must be on a wire rope sling tag? Under AS 2741, the sling tag must show the manufacturer's identification, sling construction (e.g. 6 × 19), diameter, working load limit for each configuration used (vertical, choker, basket), and the standard to which the sling is manufactured. A manufacture date or year stamp is not mandated by AS 2741, though many manufacturers include it. Missing or illegible tags are grounds for taking the sling out of service. Q: What reduces the working load limit of a wire rope sling? WLL is reduced when a sling is used in choker hitch (typically 75–80% of vertical WLL), basket hitch at angles (reduces with increasing sling angle from vertical), or when the sling passes around sharp edges or small-radius bends. Damage, corrosion, and kinking also permanently reduce capacity. Always apply the most conservative load reduction factor relevant to the lift configuration. Q: Can wire rope slings be repaired? No. Damaged wire rope slings must not be repaired and returned to service. Once a sling fails any inspection criterion under AS 2741 — broken wires, kinking, crushing, corrosion, heat damage, or damaged fittings — it must be removed from service and rendered unserviceable (typically by cutting) before disposal. Repairs to wire rope slings are not permitted under Australian rigging standards. For pulling and positioning gear, browse the AIMS manual winch range (hand winches, worm-gear, and cable winches). See AIMS's full metal & wire gauges range — trade pricing and Australia-wide despatch. Q: What is the most efficient way to terminate a wire rope sling eye? A poured socket (zinc or resin) retains 100% of the rope's minimum breaking load and is the highest-efficiency termination, though it requires professional fitting. Swaged (mechanical press) fittings retain 95-100% and are common on factory-made slings. A Flemish eye splice around a thimble — the standard for wire rope slings — retains 90-95%. Hand-tucked splices (80-90%) and wedge sockets (75-90%) are lower efficiency and less consistent. Wire rope clips (U-bolt grips) retain only 75-80% and are entirely dependent on correct field installation. Q: Why do wire rope slings need a thimble? A thimble is a grooved metal insert fitted inside the eye of a wire rope sling at the termination point. Without it, the wires at the eye contact point bend sharply over a hook or shackle pin, reducing the effective strength of the termination and accelerating fatigue. All rigging-grade wire rope slings should be thimbled. The d/d ratio (thimble pin/contact diameter to rope diameter) should be a minimum of 6:1 to preserve the full rated efficiency of the termination. Q: How much load can a basket hitch carry compared to a vertical hitch? When the sling legs hang vertically (90° to horizontal) in a basket hitch, each leg carries half the load — giving up to 200% of the vertical hitch WLL. This is the only hitch configuration that multiplies rated capacity. The multiplication factor reduces as the basket angle narrows, and the load must be balanced or it will slide to the low side and potentially roll off the sling. Q: What's the difference between IPS, EIPS and EEIPS wire rope? These are progressively stronger wire rope grades: IPS (Improved Plow Steel), EIPS (Extra Improved Plow Steel), and EEIPS (Extra Extra Improved Plow Steel). EIPS is the standard grade for general industrial and lifting use. Finish options — bright (uncoated), galvanised, or stainless steel — are selected independently of grade based on the corrosion environment.
Read moreProduct Guides
Hydraulic Fittings Guide
Hydraulic fittings are where most hydraulic system problems start. A fitting is a small component, but when it is wrong — wrong thread type, wrong sealing method, wrong torque — the result is a leak that at best wastes fluid and at worst fails catastrophically under pressure. The frustration of identifying an unknown fitting, sourcing the right replacement, and getting it sealed correctly is one of the most common complaints in any workshop that services mixed-origin machinery. Australia runs a genuine mix of hydraulic standards. Older plant, process equipment, and British-derived machinery typically uses BSP (British Standard Pipe). American tractors and mobile equipment use JIC. New OEM equipment from European and global manufacturers increasingly specifies ORFS (O-ring face seal). Add DIN metric fittings on German and Japanese equipment, and NPT (National Pipe Taper) on some North American-origin components, and the average Aussie workshop is dealing with four or five incompatible thread systems on a given day. This guide covers every major hydraulic fitting type used in Australian industry and agriculture: how each one seals, how to identify them with basic tools, the size reference charts you need in the workshop, and the common mistakes that cause most hydraulic leaks. Read the identification section carefully — it is the one section that will save you the most time and money. Contents What are hydraulic fittings? The main fitting standards BSP fittings: BSPP vs BSPT JIC fittings (37° flare) ORFS fittings (O-ring face seal) ORB fittings (O-ring boss) NPT — the American thread DIN metric fittings 5-step fitting identification guide BSP thread size reference chart JIC size chart Reusable vs crimped fittings Common mistakes that cause leaks Frequently asked questions For more engineering reference charts and selection tables, see our Engineering Reference Charts hub — covering fasteners, bearings, lubrication, measuring, welding and Australian standards. Comprehensive thread cross-reference chart — Quick Reference Common nominal sizes mapped across all major standards. Sizes match physically when in the same row even though designations differ. Nominal BSP / ISO 228 (G) / AS 1722 BSP Tapered / ISO 7-1 (R) NPT / ASME B1.20.1 JIS PT Pitch (mm) 1/8" G 1/8 (28 TPI) R 1/8 (28 TPI) 1/8 NPT (27 TPI) PT 1/8 BSP: 0.907 / NPT: 0.941 1/4" G 1/4 (19 TPI) R 1/4 (19 TPI) 1/4 NPT (18 TPI) PT 1/4 BSP: 1.337 / NPT: 1.411 3/8" G 3/8 (19 TPI) R 3/8 (19 TPI) 3/8 NPT (18 TPI) PT 3/8 BSP: 1.337 / NPT: 1.411 1/2" G 1/2 (14 TPI) R 1/2 (14 TPI) 1/2 NPT (14 TPI) PT 1/2 BSP: 1.814 / NPT: 1.814 3/4" G 3/4 (14 TPI) R 3/4 (14 TPI) 3/4 NPT (14 TPI) PT 3/4 BSP: 1.814 / NPT: 1.814 1" G 1 (11 TPI) R 1 (11 TPI) 1 NPT (11.5 TPI) PT 1 BSP: 2.309 / NPT: 2.209 1-1/4" G 1 1/4 (11 TPI) R 1 1/4 (11 TPI) 1-1/4 NPT (11.5 TPI) PT 1 1/4 BSP: 2.309 / NPT: 2.209 1-1/2" G 1 1/2 (11 TPI) R 1 1/2 (11 TPI) 1-1/2 NPT (11.5 TPI) PT 1 1/2 BSP: 2.309 / NPT: 2.209 2" G 2 (11 TPI) R 2 (11 TPI) 2 NPT (11.5 TPI) PT 2 BSP: 2.309 / NPT: 2.209 What are hydraulic fittings? A hydraulic fitting is a connector that joins hoses, tubes, pipes, valves, cylinders, and pumps in a hydraulic system. Unlike water plumbing, hydraulic systems operate at extreme pressures — commonly 150–300 bar (2,200–4,350 psi) in mobile equipment, and up to 700 bar (10,000 psi) in specialist industrial applications. At these pressures, a poorly sealed fitting does not drip — it sprays, and hydraulic fluid injection injuries are a genuine industrial safety hazard. Fittings must accomplish two things simultaneously: make a secure mechanical connection that resists pressure and vibration, and create a leak-free seal. The sealing method — thread taper, cone-to-cone metal contact, O-ring compression, or bonded seal — is what differentiates the major fitting standards. Understanding how a fitting seals is the foundation for selecting, installing, and troubleshooting correctly. The main fitting standards at a glance Before going into detail on each type, here is the landscape in a single table. Standard Origin Thread type Sealing method Common in Australia BSPP (BSP parallel) UK/Commonwealth Parallel, 55° thread form Bonded seal (Dowty washer) or O-ring Process plant, older equipment, fluid power BSPT (BSP tapered) UK/Commonwealth Tapered, 55° thread form Thread taper + thread sealant Plumbing, older hydraulic ports JIC (SAE 37°) USA Straight UNF 37° metal-to-metal flare seat American tractors, mobile plant, agriculture ORFS USA / Global OEM Straight UNF O-ring on flat face New OEM equipment, mining, construction ORB (SAE O-ring boss) USA Straight UNF O-ring at base of male thread Valve and port connections on American equipment NPT USA Tapered, 60° thread form Thread taper + PTFE tape or thread sealant Some North American plant; uncommon in Aus hydraulics DIN metric Germany / Europe Metric parallel or tapered Varies: cone seat, O-ring, or bonded seal European machinery, some Japanese equipment BSP fittings: BSPP vs BSPT BSP (British Standard Pipe) is the dominant fitting standard across most of Australia's installed base of process plant, hydraulic power units, and older British-derived mobile equipment. The BSP family splits into two fundamentally different thread types that share the same thread pitch and diameter but seal in completely different ways. Confusing them is one of the most common causes of hydraulic leaks. BSPP — British Standard Pipe Parallel BSPP (also designated G-thread) has a constant diameter from end to end — the threads are parallel, not tapered. Because the threads do not wedge together, they cannot seal by thread engagement alone. BSPP seals using a bonded seal (Dowty washer) or an O-ring that seats against a flat machined face on the port. The bonded seal is a rubber-bonded metal washer — a thin steel ring with a rubber seal element moulded to its inner face. When the male fitting is tightened, the bonded seal compresses between the machined face of the male fitting and the port face, creating the hydraulic seal. The seal is in the washer, not in the threads. This is critical: if the bonded seal is lost during disassembly (they often are — they fall off and get swept up), the reinstalled fitting will appear to be correctly tightened but will leak immediately under pressure. BSPP ports cannot be sealed by thread engagement or PTFE tape. Always carry spare bonded seals in the sizes you work with. BSPP is by far the more common BSP variant in modern hydraulic systems. Most hydraulic valves, cylinders, pumps, and fittings with BSP ports use BSPP (G-thread) ports. BSPT — British Standard Pipe Tapered BSPT (also designated R-thread) has a 1:16 taper — the thread diameter gradually decreases toward the end of the fitting. When tightened, the tapered thread wedges into the port, creating mechanical interference. BSPT seals by this wedging action, typically assisted by a thread sealant (PTFE tape is sometimes used, though hydraulic-grade anaerobic thread sealant is preferred for hydraulic applications). BSPT is less common in modern hydraulic components but is still found in older equipment, some plumbing connections on hydraulic power units, and as gauge ports on some cylinders and manifolds. How to tell BSPP from BSPT Hold the fitting with the threaded end pointing toward you. Using the parallel jaws of a vernier calliper, measure the thread diameter at two points: near the tip of the thread and further back toward the fitting body. If the two measurements are the same (within 0.1 mm), the thread is parallel — BSPP. If the measurement near the tip is noticeably smaller, the thread is tapered — BSPT. Do not rely on visual inspection alone; the taper is subtle and easy to miss by eye. JIC fittings (37° flare) JIC (Joint Industry Council) fittings use a 37° cone seat as the sealing surface. The male fitting has a 37° flare machined onto its nose. When assembled, the 37° cone on the male seats against a matching 37° seat in the female swivel nut, creating a metal-to-metal seal under clamping force. JIC is the standard American hydraulic fitting and is found on most American-made tractors, construction equipment, agricultural machinery, and industrial hydraulic systems. In Australia, JIC is common on John Deere, Case, New Holland, Caterpillar, and similar American-origin equipment. Key characteristics: Thread: UNF (Unified National Fine) straight thread — the threads do not seal; the cone does. Pressure rating: Up to 690 bar (10,000 psi) depending on size and material. Identification: The 37° cone on the male fitting nose is the giveaway. Look for the angled taper on the male end and the matching flared seat inside the female. Reassembly tolerance: JIC can be assembled and disassembled multiple times. The metal-to-metal seat does work-harden over many cycles, so inspect the seating surface for pitting or scoring on older fittings. JIC vs AN fittings AN (Army-Navy) fittings use the same 37° cone geometry as JIC and are dimensionally interchangeable in most sizes. The difference is the standard under which they are manufactured: AN fittings are to aerospace specifications (tighter tolerances, higher material grades), while JIC is the industrial equivalent. In a hydraulic system, JIC and AN fittings of the same nominal size will assemble and seal together correctly. Do not over-think this distinction — if the 37° cone fits, it works. ORFS fittings (O-ring face seal) ORFS (O-ring face seal, also known as SAE face seal or flat-face) is increasingly specified on new OEM equipment worldwide and is now common on mining, construction, and agricultural machinery manufactured in the last 15–20 years. The male ORFS fitting has a flat machined face with a groove containing an O-ring. The female fitting (or port) has a matching flat face. When assembled, the O-ring is compressed between the two flat faces, creating the seal. The UNF thread provides clamping force only — the O-ring does all the sealing work. Why ORFS is becoming the preferred standard on new equipment: Leak resistance: The O-ring seal is far more tolerant of vibration, thermal cycling, and port imperfections than a metal-to-metal cone seat. ORFS has a significantly lower leak rate in service than JIC. Flat face prevents contamination: The flat face design (no recessed cavity) makes the fitting easier to clean and less likely to trap contamination when disconnected. Over-torque tolerance: ORFS can withstand significant over-tightening without damage to the sealing surface. JIC cone seats can be damaged by over-torque. Visual identification: The flat face with a visible O-ring in a groove is unmistakable once you know what you are looking for. The main limitation of ORFS: the O-ring must be in good condition. A nicked, deteriorated, or missing O-ring will leak immediately. Always inspect or replace the O-ring when reassembling ORFS connections. ORB fittings (O-ring boss) ORB (O-ring boss, also called SAE O-ring boss or SAE straight thread O-ring) is a port connection type commonly found on valves, cylinders, and pump housings on American-made hydraulic equipment. It is often confused with JIC because both use UNF threads, but they seal in completely different ways. An ORB male fitting has an O-ring located at the base of the thread, between the thread body and the fitting hex. When the male fitting is threaded into the port and tightened, the O-ring is compressed against the machined chamfer at the port entrance — not against the thread faces. The seal is at the port entrance, not within the thread engagement zone. ORB ports accept adjustable-position fittings — the male fitting can be backed off and repositioned for hose routing without breaking the seal, because the O-ring at the base creates the seal regardless of rotational position. This is a significant advantage on valve banks and manifolds where fittings need to point in a specific direction. Do not confuse ORB with JIC: ORB male fittings thread straight into a port (no swivel nut). JIC uses a swivel nut assembly. If you see a male thread with an O-ring at the base threading directly into a port, it is ORB. NPT — the American thread NPT (National Pipe Taper) is the standard American tapered pipe thread. It is common on North American process equipment, compressed air systems, and some hydraulic components, but it is not the primary hydraulic fitting standard in Australia and should not be confused with BSPT. NPT has a 1:16 taper (same as BSPT) and seals by thread wedging plus PTFE tape or anaerobic thread sealant. The critical difference from BSPT is the thread form and pitch — NPT uses a 60° thread form, while BSP uses a 55° thread form. Despite having the same taper rate, NPT and BSPT threads can physically thread together in many sizes but will not seal correctly — the different thread form angles mean the contact is only partial, and the connection will leak under pressure. This is one of the most dangerous mixing errors in hydraulic maintenance. If NPT fittings appear in your hydraulic system, do not substitute BSPT and vice versa. Use adapters with the correct thread on each end. DIN metric fittings DIN (Deutsches Institut für Normung) metric fittings are common on European machinery — German, Austrian, French, and Italian equipment — and increasingly on Japanese hydraulic components. DIN fittings come in several families: DIN 2353 / ISO 8434-1 (bite-type tube fittings): The most common DIN hydraulic tube fitting — a ferrule that bites into the outer wall of a steel tube when tightened. These are compression fittings for hard hydraulic tubing, not hose fittings. DIN 7631 / DKOL (metric O-ring face seal): The DIN equivalent of ORFS — flat face with O-ring. Uses metric thread sizes. DIN 7775 (metric BSP-like): Metric parallel thread with bonded seal, functionally similar to BSPP but on metric thread sizes. When servicing European equipment, verify thread type with a metric thread gauge before sourcing replacements. DIN metric fittings are not interchangeable with BSP even where thread diameters appear similar. Pipe thread standards in depth — ISO, DIN, JIS, ASME and AS The fitting categories above (BSP, JIC, ORFS, ORB, NPT, DIN) are application-level designations. Underneath them sit the international thread standards that define the actual thread geometry — pitch, included angle, crest, root, taper rate. Understanding which standard governs which thread family makes cross-brand and cross-country compatibility decisions much easier. Standard Origin Defines AU/global use ISO 228-1 International (originally British) Parallel pipe threads — designation G (e.g. G 1/4) Europe, Asia, Australia (BSPP equivalent) ISO 7-1 International (originally British) Tapered pipe threads — designation R (external) and Rp (parallel internal) and Rc (tapered internal) Europe, Asia, Australia (BSPT equivalent) DIN 2999 Germany German equivalent of ISO 7-1 (taper); withdrawn but still referenced on older equipment European industrial equipment, legacy machinery DIN 259 Germany German equivalent of ISO 228-1 (parallel); largely superseded by ISO 228 European legacy equipment JIS B 0203 Japan Japanese pipe threads — taper external (PT), parallel internal (PS), parallel both (PF) Japanese industrial and automotive equipment ASME B1.20.1 USA NPT (National Pipe Thread) — tapered, 60° included angle, Sellers thread form North America, US-spec equipment globally ASME B1.20.3 USA NPTF (Dryseal) — interference-fit version of NPT for dry seal without compound Hydraulic and pneumatic where leak-free without sealant required AS 1722.1 Australia/NZ Australian standard for parallel pipe threads — equivalent to ISO 228-1 Australian regulatory references; gas, plumbing, hydraulics AS 1722.2 Australia/NZ Australian standard for tapered pipe threads — equivalent to ISO 7-1 Australian regulatory references; pressure systems BS 21 UK Original British pipe thread standard (now superseded by ISO 7-1 / ISO 228) Legacy UK equipment, historical reference Two practical points from the table: BSP, ISO 228 / ISO 7-1, AS 1722 and BS 21 are all the same thread family. "BSP" is the colloquial Australian and British name; ISO 228 (parallel) and ISO 7-1 (tapered) are the engineering standard references; AS 1722 is the Australian adoption. They use the same Whitworth thread form, the same 55° included angle, the same pitch table. A fitting marked "G 1/4" (ISO 228) and another marked "BSPP 1/4" mate perfectly because they're physically identical. NPT is a different thread family. ASME B1.20.1 specifies the Sellers thread form with 60° included angle, different pitches, different taper. NPT is not a regional variant of BSP — it's a fundamentally different geometry. Cross-mating BSP and NPT does not work and damages threads on first attempt (covered in detail in the next section). The G, R, Rp and Rc designations ISO 228 and ISO 7-1 use single-letter prefixes that often confuse new users. The convention: G — ISO 228 parallel thread (both internal and external). Equivalent to BSPP. Example: G 1/2 male thread mates with G 1/2 female thread, both parallel. R — ISO 7-1 tapered EXTERNAL thread. Equivalent to BSPT male. Example: R 1/2 is a male tapered fitting. Rc — ISO 7-1 tapered INTERNAL thread. Pairs with R for taper-on-taper sealing. Example: Rc 1/2 is a female tapered port. Rp — ISO 7-1 parallel INTERNAL thread. Designed to accept an R (tapered male) into a parallel female port for jam-style sealing. Less common than Rc but appears on some hydraulic and process equipment. So a port labelled Rc 1/4 on a German hydraulic valve is BSPT female. A bolt labelled G 1/2 A is a BSPP male thread. Translating between the standard designations and the colloquial BSPP/BSPT names is mostly a vocabulary exercise once you know the prefix system. Thread form geometry — Whitworth vs Sellers, and why BSP and NPT can't safely mate The fundamental incompatibility between BSP and NPT is not a regional or branding difference — it's a physical geometry difference that goes back to the 1840s and has never been reconciled. Property BSP (Whitworth form) NPT (Sellers form) Included angle 55° 60° Crest and root Rounded (radius blends crest to flank) Flat (truncated crest, flat root) Origin Sir Joseph Whitworth, England, 1841 William Sellers, USA, 1864 Taper rate (where tapered) 1:16 (BSPT and ISO 7-1) 1:16 — same taper, different form Pitch series BSP pitches (e.g. 1/2" = 14 TPI) NPT pitches (e.g. 1/2" = 14 TPI — coincidentally same) Sealing method BSPP uses bonded seal at face; BSPT uses thread-form interference + sealant NPT uses thread-form interference + sealant (PTFE tape or pipe dope) Why BSP and NPT do not mate safely, even when the diameter and TPI look the same: Different included angle. The BSP thread is a 55° "V" with rounded crests; NPT is a 60° "V" with flat crests. Force them together and only the corners of the threads touch — typically 2–3 contact points instead of full thread engagement. The connection looks tight but won't hold pressure. Different crest geometry. The flat crest of NPT against the round crest of BSP creates point contact and stress concentrations. Tightening damages the threads on both fittings — usually irreversibly. Pitch coincidences are misleading. 1/2" BSP and 1/2" NPT both happen to be 14 TPI — but the pitch is the only similarity. The thread forms don't engage. 1/4" BSP is 19 TPI; 1/4" NPT is 18 TPI — close enough to start threading but they will bind within a turn. Adapters exist for a reason. If you must connect BSP to NPT (common when integrating US-spec equipment into AU systems), use a purpose-made BSP-to-NPT adapter fitting — typically female BSP one end, male NPT the other (or vice versa). Direct mating is not an option. Practical rule for AU workshops: when in doubt about a male thread, gauge it. A BSP thread gauge (55°) and an NPT thread gauge (60°) cost under $50 each and resolve any ambiguity in seconds. Cross-threading a fitting because of a wrong assumption ruins both parts. Pipe thread standards by application — beyond hydraulics The same thread standards (BSP, NPT, ISO 228, ISO 7-1) appear across many AU industries beyond hydraulics. Each application has its own dominant standard and AU regulatory framework. Application Dominant AU standard Notes Hydraulic systems (mobile, industrial) BSP (BSPP and BSPT) ISO 228 / ISO 7-1 / AS 1722. Some imported US equipment uses NPT or JIC. Pneumatics (compressed air) BSP NPT specifically excluded from AU pneumatic standards. See AIMS Pneumatic Fittings Guide. Natural gas / LPG BSPT (taper) AS 5601 mandates tapered threads for gas service. Parallel BSPP not permitted. Plumbing (water supply, hot water) BSPT and BSPP AS 3500 series. WaterMark certification required for potable water. Drainage (sewage, stormwater) Specialty standards (push-fit, slip-on) AS 1260 for PVC-U pipe; threaded connections rare in modern drainage. Steam systems (industrial process) BSPT or NPT (per equipment origin) AS/NZS 3788 for pressure equipment. Threaded joints below DN 50 only; flanged above. Oil and gas (upstream) NPT and API API 5B and ASME B1.20.1 dominate; international standards on offshore. Compressed air (industrial scale) BSPT or BSPP AS/NZS 3788 for receivers; AS 4041 for piping. Chemical process plant Mixed (often flanged) Threaded only on small bore (DN 25 and below); flanged above. Refrigeration SAE flare (45°), some BSP SAE J512 dominates refrigeration; BSP on European HVAC equipment. Marine (water, fuel, hydraulic) BSP with corrosion-resistant materials 316 stainless or naval brass for sea water service. Mining (slurry, water, hydraulic) BSP AS 1722 references; heavy-duty fittings standard. Three points worth knowing for anyone working across multiple applications: Australian gas regulations are strict. AS 5601 (gas installations) mandates tapered threads (BSPT) for gas service. Using BSPP — which seals on a face washer, not on the thread itself — is non-compliant for natural gas and LPG. Gas fitter qualifications matter; this isn't DIY territory. Hydraulic and pneumatic look similar but differ on sealing. Most hydraulic ports are BSPP with bonded seal (face seal); most pneumatic ports are BSPT (thread seal with tape or sealant). Don't assume the standard is the same just because the thread looks the same. NPT in Australia means imported equipment. Native AU industrial design uses BSP. NPT shows up on US-imported equipment — particularly mining, agricultural, and oil & gas machinery. Plan for adapter fittings when integrating. Comprehensive thread cross-reference chart Common nominal sizes mapped across all major standards. Sizes match physically when in the same row even though designations differ. TPI = threads per inch. Nominal BSP / ISO 228 (G) / AS 1722 BSP Tapered / ISO 7-1 (R) NPT / ASME B1.20.1 JIS PT Pitch (mm) 1/8" G 1/8 (28 TPI) R 1/8 (28 TPI) 1/8 NPT (27 TPI) PT 1/8 BSP: 0.907 / NPT: 0.941 1/4" G 1/4 (19 TPI) R 1/4 (19 TPI) 1/4 NPT (18 TPI) PT 1/4 BSP: 1.337 / NPT: 1.411 3/8" G 3/8 (19 TPI) R 3/8 (19 TPI) 3/8 NPT (18 TPI) PT 3/8 BSP: 1.337 / NPT: 1.411 1/2" G 1/2 (14 TPI) R 1/2 (14 TPI) 1/2 NPT (14 TPI) PT 1/2 BSP: 1.814 / NPT: 1.814 3/4" G 3/4 (14 TPI) R 3/4 (14 TPI) 3/4 NPT (14 TPI) PT 3/4 BSP: 1.814 / NPT: 1.814 1" G 1 (11 TPI) R 1 (11 TPI) 1 NPT (11.5 TPI) PT 1 BSP: 2.309 / NPT: 2.209 1-1/4" G 1 1/4 (11 TPI) R 1 1/4 (11 TPI) 1-1/4 NPT (11.5 TPI) PT 1 1/4 BSP: 2.309 / NPT: 2.209 1-1/2" G 1 1/2 (11 TPI) R 1 1/2 (11 TPI) 1-1/2 NPT (11.5 TPI) PT 1 1/2 BSP: 2.309 / NPT: 2.209 2" G 2 (11 TPI) R 2 (11 TPI) 2 NPT (11.5 TPI) PT 2 BSP: 2.309 / NPT: 2.209 Quick read of the chart: BSP and JIS PT pitches match exactly — Japanese PT threads are physically identical to BSPT in most sizes. JIS-spec Japanese hydraulic equipment generally uses thread forms compatible with AU BSP. BSP and NPT pitches differ at most sizes. 1/4", 3/8", 1", 1-1/4", 1-1/2", 2" all have different TPI between BSP and NPT. Only 1/2" and 3/4" coincidentally share 14 TPI — but the thread form (55° vs 60°) still prevents mating. The 1/8" size is unusual — both BSP and NPT use higher-density threads for the smallest sizes. 1/8" BSP is 28 TPI; 1/8" NPT is 27 TPI. For metric thread cross-referencing in millimetres, the ISO 228 standard provides full pitch tables. The most-used sizes in AU hydraulic and pneumatic equipment span G 1/8 (10 mm OD on the male thread) through G 2 (60 mm OD). 5-step fitting identification guide When you have an unknown fitting and need to identify it, work through these five steps in order. You need: a vernier calliper, a thread pitch gauge with both imperial (TPI) and metric blades, and a reference chart (the BSP and JIC charts below will cover most Australian applications). Step 1 — Determine how the fitting seals Look at the fitting end and identify the sealing feature: Flat face with an O-ring in a groove → ORFS (or DIN face seal if metric) Angled cone on the male nose (37°) → JIC / AN O-ring at the base of the male thread (between thread and hex) → ORB Flat face, no O-ring visible, threads appear parallel → BSPP (needs bonded seal at port) No visible sealing feature — relies on thread engagement only → BSPT or NPT (tapered thread) Step 2 — Determine if threads are parallel or tapered Using the parallel jaws of a vernier calliper, measure the thread OD near the tip and again 10 mm further back. Parallel = same diameter both measurements (BSPP, JIC, ORFS, ORB). Tapered = tip diameter is smaller (BSPT, NPT). For subtle tapers, hold the fitting against a straight edge — you can usually see the taper on a tapered thread. Step 3 — Measure the thread OD Measure the outside diameter of the male thread with your calliper. Note: BSP thread sizes are nominal sizes that do not correspond to actual dimensions — a 1/2" BSP fitting has a thread OD of approximately 20.95 mm, not 12.7 mm. Use the BSP size chart below to convert your measurement to a nominal BSP size. For JIC, measure the OD and cross-reference with the JIC chart. Step 4 — Count threads per inch (TPI) Use a thread pitch gauge to count threads per inch (TPI) or pitch in mm. Place the blade against the thread at an angle and look for a perfect match. BSP threads run at specific TPI values by nominal size (see chart). JIC/ORFS/ORB use UNF thread pitches. Metric fittings will be in mm pitch. TPI combined with OD will uniquely identify the thread in almost all cases. Step 5 — Confirm against the reference chart Cross-reference your OD measurement and TPI against the BSP chart below (for BSP fittings) or JIC chart (for JIC/ORFS). For DIN metric, measure thread pitch in mm and cross-reference against a metric thread chart. If OD and TPI match a BSP size, you have BSPP or BSPT — use Step 2 to determine which. If the cone is visible, it is JIC. If the flat face + O-ring is visible, it is ORFS. Tip: bring a sample If you are still uncertain after the 5-step process, the fastest path is to take the fitting — and the mating port or fitting if possible — to a hydraulic specialist. Experienced hydraulic fitters can identify most fittings by eye and confirm with gauges in under a minute. Do not guess on a hydraulic connection: a wrong fitting that appears to thread in can fail catastrophically under pressure. BSP thread size reference chart BSP nominal sizes are historical pipe bore references, not actual thread dimensions. Use the thread OD column to match your measured fitting. BSP nominal size Thread OD (mm) TPI Common designation Typical application 1/8" 9.73 28 G1/8 (BSPP) / R1/8 (BSPT) Gauge ports, pilot ports, small instrumentation 1/4" 13.16 19 G1/4 / R1/4 Cylinder ports, small valves, air/hydraulic gauges 3/8" 16.66 19 G3/8 / R3/8 Flow control valves, cylinder ports, hose ends 1/2" 20.96 14 G1/2 / R1/2 Most common size — valves, pumps, cylinder main ports 3/4" 26.44 14 G3/4 / R3/4 Larger valve ports, pump inlets, tank connections 1" 33.25 11 G1 / R1 Pump/motor ports, large cylinder ports 1-1/4" 41.91 11 G1-1/4 / R1-1/4 Tank suction lines, large motor ports 1-1/2" 47.80 11 G1-1/2 / R1-1/2 Tank suction, return lines on larger systems 2" 59.61 11 G2 / R2 Large tank and return connections, pump suction Note on BSP designation: The G prefix = BSPP (parallel). The R prefix = BSPT (tapered). Port markings on valves and cylinders using G-thread (e.g. G1/2) indicate a BSPP parallel port requiring a bonded seal. R-thread ports require a tapered fitting with thread sealant. Both have the same thread dimensions — only the taper and sealing method differ. JIC / ORFS size chart JIC and ORFS fittings share the same UNF thread sizes. They are identified by the AN dash size system — a negative number indicating the nominal ID of the fitting in 1/16" increments. A -8 fitting has a nominal ID of 8/16" = 1/2". AN/JIC dash size Thread size (UNF) Thread OD (mm) Hose ID (approx.) Common application -4 7/16"-20 UNF 11.1 6 mm (1/4") Pilot lines, small instrumentation hoses -6 9/16"-18 UNF 14.3 10 mm (3/8") Control lines, remote valve connections -8 3/4"-16 UNF 19.1 13 mm (1/2") Most common — cylinder, motor, general hydraulic hose -10 7/8"-14 UNF 22.2 16 mm (5/8") Larger cylinder and motor lines -12 1-1/16"-12 UNF 27.0 19 mm (3/4") Pump outlet, loader valve circuits -16 1-5/16"-12 UNF 33.3 25 mm (1") Pump inlet, high-flow return lines -20 1-5/8"-12 UNF 41.3 32 mm (1-1/4") Large pump/motor ports, suction lines Telling JIC from ORFS at the same thread size: JIC has an angled 37° cone nose. ORFS has a flat face with a visible O-ring groove. Both use the same UNF thread designation (e.g. 3/4"-16 UNF for -8 size), but they are NOT interchangeable — do not mix JIC male fittings with ORFS female fittings or vice versa. Reusable vs crimped hydraulic fittings When replacing a hydraulic hose assembly, you have a choice between reusable (field-fit) fittings and crimped fittings. Each has a legitimate role. Crimped fittings A crimped fitting is permanently swaged onto the hose end using a hydraulic crimping machine. The ferrule is deformed inward, locking the fitting to the hose with a radial grip force that achieves or exceeds the hose's own pressure rating. Crimped assemblies are the industry-standard method for production hose assemblies and are specified by most OEMs. The limitations: you need a crimper (expensive, workshop-based) and a set of dies for every hose and fitting size combination. In the field, far from a workshop, you cannot make a crimped hose. Reusable fittings A reusable fitting consists of a socket that screws onto the hose OD and an insert that is driven into the hose bore. When the insert is wound in, the hose is trapped between insert and socket, creating the grip. No special tools are required beyond two spanners. The fitting can be removed, and the socket and insert can be reused on a new hose length. Reusable fittings are essential for field repairs on farm equipment, mining equipment in remote locations, and any situation where a crimper is unavailable. They are rated to the same pressure as the hose they are fitted to, provided the correct socket and insert are matched to the hose OD and wall specification. The limitations: more assembly steps, greater potential for incorrect assembly, and the seal depends on the condition of the hose end (a damaged, flared, or cut-at-angle hose end will leak). Which to choose: For permanent, shop-built hose assemblies, crimp. For field emergency repairs, for low-production applications without a crimper, or for hoses that need to be regularly disassembled (test rigs, seasonal equipment), use reusable fittings with the correct specification for the hose type. Common mistakes that cause hydraulic leaks The majority of hydraulic leaks at fittings trace back to a small number of recurring errors. Avoid these and you will eliminate most fitting-related failures. 1. Missing the bonded seal on BSPP ports The most common BSP leak in Australian workshops. The fitting is tightened correctly, the threads are correct, and it leaks from the first pressurisation. The bonded seal (Dowty washer) was lost when the fitting was removed — often falls into the machine, gets swept away with contamination, or sticks to the old fitting. Without the bonded seal, a BSPP fitting cannot seal regardless of how tightly it is torqued. Always check for and replace the bonded seal when reassembling any BSPP connection. 2. PTFE tape on BSPP ports PTFE tape is appropriate for BSPT and NPT tapered threads. It is not appropriate for BSPP parallel thread ports. Applying PTFE tape to a BSPP port prevents the bonded seal from seating correctly against the machined face, because the tape creates a compressible layer that distributes the seating force unevenly. The result is a connection that appears tight but seeps. PTFE tape on a BSPP port is not a fix — remove it, clean the faces, and fit a new bonded seal. 3. Cross-threading BSPT and NPT BSPT and NPT have the same taper rate but different thread forms (55° vs 60°). In many common sizes — particularly 1/4" and 1/2" — they will physically thread together and appear to seat correctly. Under pressure, they leak because the thread flanks do not make full contact. This is a particularly dangerous error because the connection looks right and may hold briefly before failing. Never substitute BSPT for NPT or vice versa. When in doubt, use a thread pitch gauge to confirm. 4. Confusing JIC and ORFS at the same thread size Both use UNF threads, and in some sizes the thread OD is close enough that they will thread together partially. JIC male into an ORFS female: the 37° cone contacts the flat ORFS face off-centre, creating a partial seal that fails quickly. ORFS male into a JIC female swivel: the flat face cannot create a seal in the 37° seat. Always confirm the sealing method — cone vs flat face — before assembly. 5. Over-torquing JIC fittings JIC is a metal-to-metal seal. Tightening beyond specification deforms the 37° cone, reducing the contact quality and eventually causing leak paths from cracking or distortion of the seat. JIC fittings have a specified torque (FFWR — Flats From Wrench Resistance: snug up to resistance, then turn a specified number of flats). Using torque alone without knowing the specification, or using an impact driver, will damage the cone. Use a torque wrench or the FFWR method, and inspect cone condition on reassembly of older fittings. 6. Damaged ORFS O-ring ORFS O-rings are vulnerable to nicking during assembly if the O-ring rolls out of its groove. Always lightly lubricate the O-ring with clean hydraulic fluid before assembly. Do not cross-thread the fitting — thread by hand until fully engaged before applying spanner. If the O-ring extrudes from the groove during assembly, stop, disassemble, and fit a new O-ring. A nicked O-ring will leak from first pressurisation. Frequently asked questions What is the difference between BSPP and BSPT? BSPP (British Standard Pipe Parallel, G-thread) has straight threads and seals using a bonded seal (Dowty washer) or O-ring pressed against a machined face — the threads themselves do not create the seal. BSPT (British Standard Pipe Tapered, R-thread) has a 1:16 taper that wedges into the port when tightened, sealing by thread interference plus thread sealant. Both have the same thread pitch and diameter for a given nominal size — the difference is whether the thread diameter is constant (parallel) or reduces toward the end (tapered). Measure with a calliper at two points to determine which you have. How do I identify what type of hydraulic fitting I have? Work through five steps: check the sealing method (flat face + O-ring = ORFS; 37° cone = JIC; O-ring at thread base = ORB; flat face, no O-ring = BSPP needs bonded seal; no visible sealing feature = tapered thread, BSPT or NPT); check parallel vs tapered with a calliper; measure thread OD; count threads per inch with a thread gauge; cross-reference against the BSP or JIC chart. If still uncertain, take the fitting to a hydraulic specialist — guessing on a hydraulic connection is not acceptable. What is a bonded seal and do I always need one with BSP fittings? A bonded seal (also called a Dowty washer or bonded seal washer) is a rubber-bonded metal washer that creates the hydraulic seal on BSPP (parallel BSP) connections. The seal sits between the machined face of the male fitting and the port face. Without it, a BSPP fitting cannot seal regardless of how tightly it is tightened — the parallel threads do not wedge together. You need one every time you assemble a BSPP connection. BSPT (tapered) connections do not use bonded seals. Always carry spare bonded seals in the sizes you work with. Can I use PTFE tape on hydraulic fittings? PTFE tape is only appropriate for tapered thread connections — BSPT or NPT — and even then, hydraulic-grade anaerobic thread sealant is generally preferred because it cures in the absence of air, fills the thread voids more reliably, and does not produce loose tape fragments that can contaminate the hydraulic system. Never use PTFE tape on BSPP (parallel BSP) ports — it prevents the bonded seal from seating correctly and will cause leaks. Never use PTFE tape on JIC, ORFS, or ORB fittings — those seals rely on metal contact or O-ring compression, not thread sealing. What is the difference between BSP and JIC fittings? BSP (BSPP) is a British Standard parallel thread that seals with a bonded seal at the port face. JIC is an American standard with a 37° cone nose that creates a metal-to-metal seal. They are completely incompatible — different thread form, different sealing method, different origin. BSP is common on older Australian and British-derived plant; JIC is common on American tractors and mobile equipment. The thread sizes are different (BSP uses its own pitch series; JIC uses UNF) so they will not physically mate in most cases, but always confirm with a gauge before assuming a fit is correct. What is ORFS and when should I use it? ORFS (O-ring face seal) is a flat-face fitting with an O-ring in a groove on the male face that seals when compressed against the matching flat female face. ORFS is specified on most new OEM hydraulic equipment worldwide because it offers superior leak resistance under vibration, tolerates over-torque better than JIC, and has a flat face design that resists contamination. If you are building new hydraulic circuits or replacing old JIC fittings on high-vibration applications, ORFS is the better specification. If the existing system is JIC and operating correctly, there is no need to convert. Are JIC and AN fittings interchangeable? Yes, for practical purposes. Both use a 37° cone seat on the same UNF thread sizes. AN fittings are manufactured to tighter aerospace tolerances and higher material grades, but the thread and cone geometry are identical. JIC and AN fittings of the same dash size will assemble and seal correctly together. In industrial and agricultural hydraulics, this distinction is not operationally significant. What is an ORB fitting? ORB (O-ring boss, SAE straight thread O-ring) is a fitting that threads directly into a port using UNF straight thread, with an O-ring at the base of the male thread that compresses against a chamfer at the port entrance. ORB is common on valve bodies, pump and motor ports, and manifolds on American-made hydraulic equipment. A key advantage is that adjustable-position ORB fittings can be backed off and repositioned for hose routing without breaking the seal. ORB and JIC use the same UNF thread sizes but seal entirely differently — do not interchange the male fittings between ORB ports and JIC swivel nuts. Can I connect BSP and NPT fittings together? No. BSP and NPT have the same taper rate (1:16) but different thread forms — BSP uses a 55° thread form, NPT uses 60°. In many common sizes they will physically thread together and may appear to hold briefly, but the mismatch in thread flank angles means the contact is not full and the connection will leak under pressure. This is one of the more dangerous fitting errors because the visual result looks correct. Always confirm thread type with a thread pitch gauge and use the correct dedicated adapters to convert between BSP and NPT. What hydraulic fittings are standard on Australian farm and construction equipment? It depends on the equipment origin. American-made tractors and construction equipment (John Deere, Case, New Holland, Caterpillar, Komatsu with American-spec components) predominantly use JIC on hose ends and ORB on port connections. British and older Commonwealth-origin equipment uses BSPP. European equipment (Deutz, Fendt, Liebherr, Volvo CE) uses DIN metric or ORFS. Most newer global-market equipment — regardless of brand — is moving toward ORFS for hose end connections. In practice, Australian workshops need to stock BSP, JIC, and ORFS as a minimum, with DIN metric for European machine coverage. What is the difference between reusable and crimped hydraulic fittings? Crimped fittings are permanently swaged onto the hose by a hydraulic crimping machine — they achieve rated hose pressure and are the production standard for most hydraulic hose assemblies. Reusable fittings use a threaded socket and insert assembly that grips the hose mechanically without a crimper, making them ideal for field repairs and remote locations. Reusable fittings have the same pressure rating as the hose when correctly matched and assembled. The limitations of reusable fittings are dependence on correct hose end preparation and the potential for incorrect assembly — always follow the manufacturer's fitting and hose combination specifications. Why is my hydraulic fitting leaking? The most common causes are: missing bonded seal on a BSPP connection; PTFE tape preventing the bonded seal from seating; wrong fitting type (e.g. JIC into ORFS port); damaged O-ring on an ORFS fitting; over-torqued and deformed JIC cone seat; cross-threaded NPT and BSPT fittings; under-torqued connection (JIC and ORFS both require correct torque to achieve full sealing force); or fitting damage from previous over-tightening. If a fitting leaks immediately after a new installation, the most likely causes are missing seal, wrong type, or damaged O-ring. If a previously sound connection starts leaking, vibration-induced loosening or O-ring/bonded seal degradation from heat or fluid incompatibility are the most common culprits. AIMS Industrial stocks hydraulic fittings across BSP, JIC, and ORFS standards, including stainless steel BSP fittings, reusable hose ends, bonded seals, and hydraulic adapters. If you need help identifying or matching a fitting, contact our team with the measurements from the 5-step guide above and we will help you source the right part. What is a flat-face O-ring (FFOR) hydraulic fitting? A flat-face O-ring fitting seals with an O-ring set into a flat face rather than on a thread or cone, giving a leak-resistant, easily inspected joint that resists over-torque damage. It's common on excavators and mobile plant where vibration and contamination control matter. Match the fitting family across the whole circuit rather than mixing seal types. Browse the hydraulics range. How tight should a hydraulic fitting be done up? Tighten to the manufacturer's torque or the flats-from-finger-tight method for the fitting type, not by feel — over-tightening cracks flares and crushes O-rings, while under-tightening leaks. Tapered thread fittings (BSPT, NPT) seal on the thread with sealant and are done up firm; O-ring and flare fittings seal on the seat and have specific torque figures. See our pipe flange guide for related sealing. Share: Share on Facebook Share on X Pin on Pinterest Previous Post Pillow Block Bearings: Types, Selection & Installation Guide Next Post Wire Rope, Slings & Rigging Guide: WLL, Sling Angles & Shackles For butt weld fittings, see our butt weld fittings range stocked across Australia. AIMS Industrial stocks roll groove fittings — see the full range for trade and industrial use. Related Posts accc Bottle Jack & Hydraulic Ram Guide: 2T-20T Range, Squat Bottle Jacks, Porta Power, AS 2615 Compliance & Jack Stand Safety for Australian Workshops May 13, 2026 AIMS Industrial air-hose-reel Industrial Hose Reel Guide: Air, Water, Diesel, Oil & Grease Reels — Spring Rewind vs Manual, Mounting, Swivel Joint Maintenance, Retracta & Macnaught Range for Australian Workshops, Mining & Fleet May 13, 2026 AIMS Industrial asnzs-60335-2-69 Industrial Vacuum & Dust Extractor Guide: AS/NZS 60335.2.69 L/M/H Class, 2024 Silica & Engineered Stone Compliance, Cordless vs Mains, Metabo & HiKOKI Range for Australian Workshops May 13, 2026 AIMS Industrial Share: Share on Facebook Share on X Pin on Pinterest Previous Post Pillow Block Bearings: Types, Selection & Installation Guide Next Post Wire Rope, Slings & Rigging Guide: WLL, Sling Angles & Shackles Related Posts ba Thread Gauge & Pitch Gauge Guide: Go/No-Go, BSPP/BSPT/NPT, Centre Gauges & Australian Workshop Selection May 14, 2026 AIMS Industrial air-blow-gun Air Tools & Pneumatic Tool Guide: Die Grinder, Air Ratchet, Air Hammer, Cut-Off, Riveter, Spray Gun & Australian Workshop Selection May 14, 2026 AIMS Industrial bosssafe Face Shield & PAPR Guide: Grinding, Welding, Chemical Splash, Mesh & Powered Air-Purifying Respirators for Australian Workshops May 14, 2026 AIMS Industrial Share: Share on Facebook Share on X Pin on Pinterest Previous Post Pillow Block Bearings: Types, Selection & Installation Guide Next Post Wire Rope Slings & Rigging Guide Related Posts bramley Tube & Pipe Bender Guide: Hydraulic vs Manual, Bend Radius Rules, Mandrel vs Lever, Materials & Selection May 17, 2026 AIMS Industrial absorbents Spill Kit & Spill Containment Guide: Hazard Class, Absorbents, Bunding & AS 1940 Compliance May 17, 2026 AIMS Industrial as-4429 Castor Wheel & Caster Guide: Wheel Materials, Mount Types, Load Ratings & AS 4429 May 17, 2026 AIMS Industrial Supplies For porta-power and ram kits, see the AIMS hydraulic ram range.

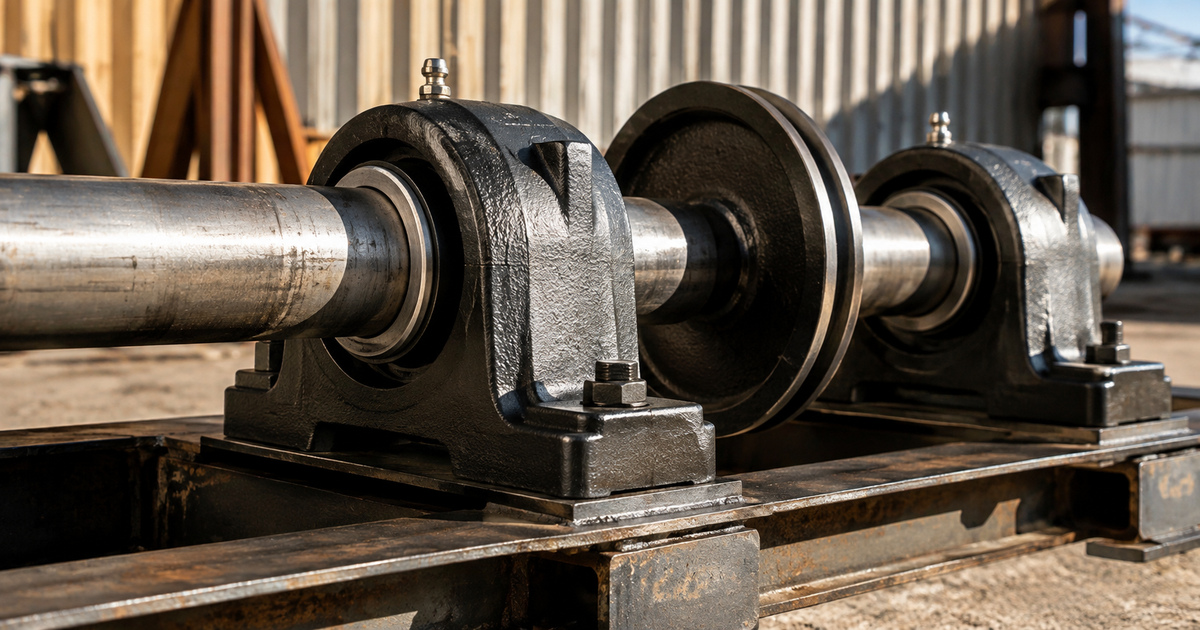

Read morePillow Block Bearings: Types, Selection & Installation Guide
Pillow Block Bearings & Bearing Housings: A Complete Selection Guide A pillow block bearing is one of the most common bearing assemblies in industrial machinery — a pre-aligned, self-contained unit that combines an insert bearing with a cast housing, ready to bolt directly to a structure. It is used wherever a rotating shaft needs a fixed support point: conveyors, fans, agricultural equipment, packaging machinery, pumps, gearbox output shafts, and hundreds of other applications. The appeal is simplicity: the bearing seats in a spherical housing bore, compensating for minor shaft misalignment without requiring machined journals, and the whole assembly mounts on a flat surface with two bolts. Not sure which bearing brand suits your application? The AIMS Bearing Brand Comparison guide covers NACHI, NSK, Koyo, NTN and the specialty brands AIMS distributes for niche applications. Despite that simplicity, pillow blocks fail regularly — and almost always for the same reasons: wrong locking method for the drive direction, incompatible greases, undersized bore, or a housing type selected for convenience rather than for the load direction and mounting surface. This guide covers the full picture: how the designation system works, which housing type suits which application, how to lock the bearing to the shaft correctly, how to grease it without causing failure, and when to use stainless or food-grade variants. Whether you are replacing a failed unit, designing a new drive, or trying to understand why your current bearings keep failing, this guide gives you the engineering basis to select correctly and install it right first time. Contents What is a bearing housing? Pillow block vs plummer block Bearing housing types explained Insert bearing designations Bore sizing: 200 vs 300 series Selecting the right housing Locking methods: set screw vs eccentric collar Shaft fit and tolerance How to mount a pillow block bearing Vertical shaft mounting Lubrication and re-greasing Food-grade and stainless options When to replace Frequently asked questions What is a bearing housing? A bearing housing is a rigid enclosure that holds a rolling-element bearing in a fixed position on a structure. The housing locates the bearing axially and radially, provides a sealing environment to retain lubricant and exclude contaminants, and transfers the shaft load to the mounting surface or frame. In most industrial applications, the bearing housing is paired with an insert bearing (also called a bearing insert or Y-bearing) — a deep-groove ball bearing with a spherical outer race. The spherical outer race seats into a matching spherical bore in the housing, which is what gives the assembly its self-aligning capability. Small shaft deflections, thermal expansion, and minor installation errors are accommodated without inducing additional radial load on the bearing. The housing itself comes in several forms depending on how the shaft is oriented and what surface the housing mounts to: Plummer block (split housing) — a two-piece housing with a removable cap; suited to heavy-duty applications and large shaft diameters where the shaft cannot be threaded through the housing. Cartridge unit — a close-tolerance housing designed to fit into a machined bore in a structure, providing accurate shaft location in both radial directions. Take-up unit — a housed bearing mounted in an adjustable frame (T-bolt or screw-adjust), used to tension chain, belt, or conveyor runs by sliding along slotted rails. Pressed steel housing — a lightweight, cost-effective alternative for lower-load, lower-speed applications (fans, agricultural, light conveyor work). The vast majority of applications use cast iron or cast steel housings with UC-series insert bearings. This is the UC/UCP/UCF/UCFL family covered in detail below. Pillow block vs plummer block: what is the difference? In everyday industrial usage in Australia, "pillow block" and "plummer block" are often used interchangeably — but they refer to different things in engineering and in catalogue terminology. A pillow block is a one-piece (solid) cast housing with two bolt holes in the base, designed to sit on a horizontal flat surface. The UCP series is the canonical pillow block. The term "pillow block" is common in American and Australian industrial usage. A plummer block (also spelt "plumber block") is a split two-piece housing — a base and a cap joined by bolts. The split allows the bearing to be installed without threading the shaft through the housing, which is essential for large shaft diameters or where shafts cannot be disassembled. Plummer blocks (SN, SNH, SD series from major OEMs) accept adapter-sleeve mounted spherical roller bearings and are found in heavy-duty, large-shaft applications: aggregate crushers, mining conveyors, paper mills, and steel processing lines. In everyday conversation, "plummer block bearing" and "pillow block bearing" are often treated as synonyms — and many suppliers use them interchangeably for solid UCP-type housings. For precision, a plummer block has a removable cap; a pillow block is solid. If you are working in heavy industry with shaft diameters above 60–80 mm, you are likely looking at a plummer block. Most light-to-medium industrial use (shafts 12–60 mm) uses solid UCP-type pillow blocks. Bearing housing types explained The UC-series bearing system uses a standardised insert bearing that fits into multiple housing types. This means the same insert bearing (e.g. UC205, 25 mm bore) can be ordered in a UCP, UCF, UCFL, or UCPA housing without changing the bearing insert itself. Understanding the housing types allows correct selection based on mounting surface and load direction. Designation Common name Mounting Bolt holes Typical use UCP Pillow block Flat horizontal surface (base-mount) 2 Conveyors, fans, pumps — standard horizontal shaft support UCF Square flange Vertical surface (wall or face-mount) 4 Wall or panel-mounted shafts, drives close to a vertical surface UCFL Oval flange Vertical surface — compact footprint 2 Where space is limited; lighter-duty alternative to UCF UCPA Wide triangular flange Vertical or angled surface 3 Less common; used where three-point mounting suits the structure UCFC Round flange Circular face mount 4 (circular pattern) End-of-shaft mounting, circular flanged faces UCTH / UCT Take-up unit Sliding adjustable frame N/A (sliding) Belt and chain tensioning, conveyor take-up stations SN / SNH Split plummer block Flat surface, split cap 2–4 Heavy-duty large shafts, mining, aggregate, process industries UCP — the standard pillow block The UCP is the most common bearing housing in light-to-medium industrial use. It mounts flat on any horizontal surface, accepts the shaft through the housing bore, and is held down by two bolts. The UCP is designed for shafts running horizontally or close to horizontal. Standard UCP housings in cast iron are suitable for most industrial environments. For exposed or washdown environments, pressed steel housings (UCPX) or stainless housings (SUCP) are alternatives. UCF — square flange The UCF is a square four-bolt flange unit designed to mount against a vertical surface — a wall, plate, gearbox face, or panel. The four-bolt pattern provides excellent load distribution and makes the UCF the preferred choice for wall-mounted shaft supports carrying moderate to higher loads. Because the housing mounts face-on, the shaft runs perpendicular to the mounting surface, which is the opposite geometry to a UCP. UCFL — oval flange The UCFL is the compact two-bolt alternative to the UCF. It occupies a smaller footprint on the mounting surface and is lighter. The trade-off is that with only two bolts, it is less rigid under high or cyclically varying loads. Use UCFL where space is constrained and loads are moderate. For higher-load face-mount applications, prefer UCF. Insert bearing designations: the UC series The insert bearing that sits inside the housing is designated with a UC prefix followed by a series number and bore code. Understanding the designation lets you order the correct bearing insert separately when only the insert has worn (the housing may be serviceable). A typical designation: UC 205-16 UC — deep-groove ball bearing insert with spherical outer race for housed-unit use. 2 — series (200 = light series, 300 = medium series — see bore sizing below). 05 — bore code. For the UC200 and UC300 series, the bore code × 5 gives the bore in millimetres. So UC205 = 25 mm bore, UC208 = 40 mm bore, UC210 = 50 mm bore. -16 — inch bore suffix. When an inch suffix appears, the bore is in inches: -16 means 1" bore. Inch-bore bearings look the same externally but are NOT interchangeable with metric-bore equivalents. The locking method is also encoded in the designation. Insert bearings with a standard set screw carry no additional suffix. Bearings designed for use with an eccentric locking collar carry an E suffix (e.g. UC205E or EC205). Always confirm locking method when ordering replacements — the housing is the same, but the insert machining differs. Bore sizing: 200 vs 300 series The two most common UC insert bearing series are the 200 series and the 300 series. Both are available in the same bore sizes, but the 300 series has a larger outer race diameter, wider internal geometry, and higher static and dynamic load ratings. Series Bore range Load rating Housing size Typical use UC200 12–60 mm Standard Compact Light to medium loads, fans, conveyors, packaging, general machinery UC300 12–80 mm Higher Larger for same bore Higher radial loads, agricultural drives, heavier conveyor work In practice, a UC205 (25 mm bore, 200 series) and a UC305 (25 mm bore, 300 series) have the same shaft bore but different outer race diameters. They fit into correspondingly different housing sizes — a UCP205 housing will not accept a UC305 insert. When upgrading from 200 to 300 series for higher load capacity, the entire unit (housing + insert) must be replaced or the correct 300-series housing obtained. Selecting the right housing for your application Selecting a bearing housing is a four-factor decision: mounting surface, shaft orientation, load magnitude and direction, and environment. Work through these in order. Mounting surface and shaft orientation determine the housing type. Horizontal shaft on a flat base: UCP. Shaft perpendicular to a wall or panel: UCF or UCFL. Shaft in an adjustable tensioning frame: take-up unit. Load magnitude determines series (200 vs 300) and bore size. Confirm the shaft diameter first — the bore must match the shaft, with correct tolerance (see shaft fit section). Then check the dynamic load rating (C) and static load rating (C₀) in the bearing catalogue against your calculated radial load. As a rough guide: 200 series housings for loads up to 5–10 kN at the bearing; 300 series for higher. For shock-loaded, high-belt-tension, or heavy-conveyor applications, step up a series or use a spherical roller insert housing (Y-bearing or SN/SNH) rather than a ball insert. Load direction matters for flange units. A UCF mounted on a wall carries predominantly axial load relative to the housing flange — ensure the housing is rated for this. UCF units are designed for this, but confirm maximum axial load in the catalogue for the specific size. Environment determines materials and sealing. Standard cast iron with rubber seals suits clean, dry-to-moderate environments. Washdown (food, beverage, laundry, marine): use stainless SUCP or polymer housings. High-dust or abrasive (aggregate, mining, grain): specify units with double-lip seals or triple-lip (SLH) sealing. High-temperature (kilns, ovens): use high-temperature grease and confirm seal compound rating. Locking methods: set screw vs eccentric collar The locking method fixes the inner ring of the insert bearing to the shaft, preventing axial movement and ensuring torque is transmitted correctly. Two methods dominate standard housed-unit applications. Set screw locking Set screw locking uses one or two grub screws (set screws) threaded radially through the inner ring of the insert bearing. Tightening the screws presses directly against the shaft surface, locking the inner ring in place. Advantages: Simple, low-cost, no additional components, works in either rotation direction. Limitations: The screws indent the shaft surface, making removal difficult and potentially damaging the shaft. Under heavy or shock loads, set screws can loosen, allowing the inner ring to creep on the shaft. Set screw locking is adequate for light-to-moderate, unidirectional, steady-load applications. Eccentric collar locking An eccentric locking collar is an asymmetric collar that fits over the bearing inner ring. When the collar is rotated in the direction of shaft rotation, its eccentricity causes it to cam inward, clamping the inner ring firmly to the shaft without indenting the surface. The collar is then locked with a set screw. Advantages: Higher clamping force than set screws alone, less shaft damage, better performance under shock and variable loads. Better for oscillating or intermittent service where set screws would work loose. ⚠️ Critical installation caveat — eccentric collars and drive direction An eccentric collar relies on shaft rotation to maintain its clamping force. The collar cams into the locked position when the shaft rotates in one direction. If the shaft reverses direction — even briefly — the eccentric action works in reverse, the collar uncams, and the inner ring becomes free on the shaft. This causes immediate fretting, rapid wear, and bearing failure. Eccentric collar bearings must only be used on unidirectional drives. For reversing drives, bi-directional operation, frequent start/stop under load, or any application where the shaft may turn backwards (gravity rollback on inclines, backdriving pumps, reversing conveyors), use set screw locking or specify a bearing with an adapter sleeve. Which to choose? For steady, unidirectional, light-to-moderate loads: either works — set screw is simpler. For shock loads, vibration, higher torques, or oscillating service (unidirectional): eccentric collar is preferred. For reversing drives or any application where direction of rotation is uncertain: set screw only. Shaft fit and housing tolerance Getting the shaft-to-bore fit right is critical. Too loose, and the inner ring spins on the shaft (fretting corrosion, shaft wear, rapid bearing failure). Too tight, and the inner ring cannot be removed for maintenance, or the press fit reduces internal bearing clearance and causes premature fatigue. For UC-series insert bearings with set screw or eccentric collar locking, the bore is made to a loose fit (H7 bore tolerance) — this is intentional. The mechanical locking provides the grip; the bore is not press-fitted. The correct shaft tolerance for this type of insert bearing is h6 or h9 — a clearance or light clearance fit. The shaft should slide into the bore with light hand pressure when the locking mechanism is released. If the shaft requires force to insert, the shaft is oversized for the bore. For comparison: conventional press-fit bearing applications (where the bearing is driven onto the shaft with no mechanical lock) use interference fit shafts (k5 or m5), which close the internal clearance. Insert bearings are specifically designed not to require an interference fit — the locking mechanism does the job. Shaft condition matters. The shaft surface in the bearing seating area must be clean, smooth (Ra ≤ 1.6 µm), and within the correct diameter tolerance. Corroded, scored, or undersize shafts will compromise locking even with correct procedure. Do not fit a new bearing onto a worn or corroded shaft without addressing the shaft surface first. How to mount a pillow block bearing Correct installation is what separates a bearing that lasts its rated life from one that fails within weeks. Follow this sequence. Inspect the shaft. Confirm diameter is within tolerance (h6/h9 for the bore size). Clean the seating area. Remove burrs, corrosion, and sharp edges with a fine file and emery cloth. Apply a thin film of clean oil or anti-seize to the shaft seating area — not thick grease, which prevents correct feel of the fit. Check the housing. Confirm housing mounting face is clean and flat. Check that the spherical bore is free of debris. Verify that the housing and insert bearing bore code match (200 series insert into 200 series housing, etc.). Position the housing loosely. Place both housings (or all housings on a shaft) on the mounting surface. Do not fully tighten any housing until all housings on the shaft are aligned. Slide the shaft through the housings. With the set screws/eccentric collar released, the insert bearing bores should accept the shaft with light hand pressure. Do not drive or hammer the shaft through. Align the housings. The self-aligning spherical bore compensates for minor angular misalignment, but does not correct gross positional misalignment. Ensure all housings are at the same height and that the shaft runs parallel to the mounting surface before tightening the housing base bolts. Tighten housing bolts. Tighten to the torque specified in the housing manufacturer's catalogue. Do not substitute a larger bolt without checking thread size — housing bolt bosses are sized for the specified bolt. Standard UCP cast iron housings: typically M10 or M12 bolts depending on housing size. Lock the bearing to the shaft. For set screws: tighten the set screws to the specified torque using the correct Allen key. Apply thread-locking compound (Loctite 243 or equivalent) to prevent vibration-induced loosening. For eccentric collars: rotate the collar in the direction of intended shaft rotation until it cams tight, then tighten the collar set screw. Check rotation. Rotate the shaft by hand. It should turn smoothly with uniform drag. Any roughness, grinding, or binding indicates a problem — misalignment, incorrect fit, or a damaged bearing. Grease if required. New housed units are typically pre-greased from the factory. If the housing has been opened, cleaned, or is a bare unit, fill to approximately one-third of the free space with the correct grease before operation. Vertical shaft mounting Standard UCP pillow block bearings are designed and tested for horizontal shaft operation. Mounting a standard UCP with the shaft running vertically is not forbidden, but it introduces a significant and often overlooked risk: grease starvation. In a horizontal bearing, gravity helps distribute grease across the contact surfaces. In a vertically mounted bearing, grease pools at the bottom of the housing bore. Under operating conditions, the lower portion of the bearing can become over-greased while the upper portion — where the bearing is doing most of the work against gravity — runs progressively dry. This leads to premature wear, elevated temperatures, and failure that looks like under-greasing even when the housing has plenty of grease. The solution for vertical shaft applications: Use a bearing unit specifically rated for vertical operation. Many manufacturers offer vertical-rated housed units with internal labyrinth or contact seals designed to retain grease against gravity. If using a standard UCP vertically, shorten the re-greasing interval significantly (at minimum halve the horizontal interval). Over-grease cautiously — pumping too much grease into a bearing already over-filled at the bottom causes seal damage and overheating. Consider a split plummer block with a proper lubrication circuit for high-speed or critical vertical applications. Lubrication and re-greasing Grease starvation is the leading cause of premature bearing failure. Under-greasing causes metal-to-metal contact and fatigue. Over-greasing causes churning, elevated temperature, and seal failure. The goal is correct fill quantity and correct grease type, renewed at the correct interval. Grease type Most major manufacturers pre-grease UC-series housed units with a polyurea-thickened (lithium-complex or polyurea base) grease — typically NLGI 2 consistency. This is a high-performance, high-temperature grease suitable for most standard applications. Common examples: SKF LGWA 2, NSK Grease LG2, NTN Uni-Temp. For replacement greasing, suitable types include: Lithium-complex NLGI 2 — compatible with most pre-greased units, excellent load capacity, wide temperature range (−20°C to +150°C). Polyurea NLGI 2 — same base as factory fill, ideal for refilling polyurea pre-greased units. Good high-temperature performance. Calcium sulphonate NLGI 2 — excellent water resistance and corrosion protection; preferred for wet or washdown environments. ⚠️ Grease incompatibility — a common and serious failure cause Not all greases are compatible with each other. Mixing incompatible thickener types causes the grease structure to collapse, producing a soft, oily fluid that does not stay in the bearing. The contact surfaces run unlubricated, and failure follows within hours to days. The most commonly encountered incompatibility in Australian industrial maintenance: polyurea grease (factory fill) + lithium grease (top-up) = failure. Polyurea and standard lithium-thickened greases are incompatible — they produce a liquid mixture with no film strength. If you do not know what grease is in a bearing housing, do not top up with a different grease type. Either purge the housing completely (pump in new grease until old grease appears at the purge fitting), or disassemble and clean before re-filling with the correct grease. A compatibility chart from your grease supplier will confirm which thickener types can be safely mixed. Re-greasing interval For standard UC-series pillow blocks in moderate industrial conditions (ambient temperature, clean environment, continuous operation): Light to moderate duty: every 2,000–4,000 hours of operation, or every 3–6 months (whichever is sooner). High temperature (>70°C housing surface): halve the interval. Dusty, wet, or abrasive environment: every 500–1,000 hours. Vertical mounting: halve the horizontal interval at minimum. When re-greasing a housing fitted with a grease fitting (Zerk/Schrader), pump in small quantities slowly — typically 1–3 strokes on a standard grease gun. Pump whilst the machine is running if safe to do so; this distributes grease evenly. Do not pump until the bearing seal lips blow out. If the housing does not have a grease fitting, it is either pre-lubricated for life (lighter-duty units) or requires disassembly to re-lubricate — check the product data sheet. See the Grease Nipple Guide for thread-standard identification (BSP vs UNF vs NPT vs metric) when ordering replacement fittings. Food-grade and stainless steel bearing housings Standard cast iron housed units are not acceptable in food, beverage, pharmaceutical, or other hygienic processing environments. Three reasons: cast iron corrodes and contaminates product, standard greases are not approved for incidental food contact, and the housing geometry (recesses, bolt pockets) traps product and resists cleaning. SUCP — stainless pillow block The SUCP designation identifies a pillow block with both a stainless steel insert bearing and a stainless steel housing. The S prefix denotes stainless throughout — not just a stainless insert in a standard cast housing (which would be a different partial designation). SUCP housings are available in 304 and 316 grades. 316 grade is preferred for saline, acidic, or high-chloride environments (seafood processing, coastal, dairy with high CIP chemical concentrations). Features of a proper food-grade housed-unit specification: Housing material: 304 or 316 stainless steel. Insert bearing: stainless inner and outer rings, stainless balls. Grease: NSF H1-registered grease (approved for incidental food contact). Common examples: Kluber Paraliq GTE 703, Molykote L-3462, Shell Cassida Grease RLS 2. Seals: FDA/EC-approved elastomer (EPDM or PTFE-lip seals). Surface finish: smooth, crevice-free — not standard cast finish. Look for housings specifically marketed as "hygienic design" or EHEDG-compliant for the most demanding food environments. Some manufacturers offer polymer housings (glass-filled nylon or thermoplastic) as an alternative to stainless. Polymer housings are lighter, chemically resistant, non-sparking, and non-magnetic — useful in metal detection lines. They are not suitable for high temperatures or heavy mechanical loads. NSF H1 certification on the grease is the minimum requirement for incidental food contact. NSF H2 grease (non-food-contact areas only) is not acceptable inside bearings that may contact product or product surfaces. Confirm certification on every grease drum — some greases marketed as "food grade" are not formally NSF-registered. When to replace pillow block bearings Condition indicators Pillow block bearings should be replaced when any of the following are present: Noise: grinding, rumbling, clicking, or squealing from the housing. A new bearing runs quietly. Any metallic noise indicates raceway damage, ball damage, or contamination. Elevated temperature: housing temperature consistently >80°C in normal operating conditions, or any sudden rise in temperature without change in load or speed. Visible wear: fretting on the shaft at the bore contact point, discolouration of the insert, degraded seals with grease weeping out. Shaft play: any axial or radial movement when the shaft is loaded by hand with the machine stopped indicates inner ring wear or inadequate locking. Vibration: increased vibration measured at the housing (where baseline is known) is a reliable early indicator of raceway or ball damage. Replace in pairs When one bearing in a pair fails prematurely, the temptation is to replace only the failed unit. This is false economy. The two bearings on a shaft have operated the same number of hours under the same conditions. If one has reached its fatigue life, the other is at the same point or close to it. Replacing only the failed bearing leaves a unit on the verge of failure, and the replacement bearing will typically fail within a fraction of the first bearing's service life because it was installed in a shaft that may have been deflected or misaligned by the original failed unit. Always replace pillow block bearings in pairs (or in the full set for multiple-bearing shafts). The cost difference between replacing one and replacing the pair is minor compared to the downtime cost of a second unplanned failure a few weeks later. When ordering the replacement insert bearing, use the AIMS Bearing Cross Reference Guide to match the designation across SKF, NTN, NSK, FAG, Koyo, NACHI and other brands. Frequently asked questions What is the difference between a pillow block and a plummer block? A pillow block is a solid one-piece housing — the UCP type — with two bolt holes in the base. A plummer block is a two-piece split housing with a removable cap, used for large-shaft, heavy-duty applications where the shaft cannot be threaded through a solid housing. In common Australian industrial usage, the terms are often used interchangeably, but technically they are different designs. Most light-to-medium industrial applications use solid pillow blocks (UCP); large shaft (>80 mm) heavy-duty applications use split plummer blocks (SN, SNH series). What do UCP, UCF, and UCFL mean? These are designations in the UC housed-unit system. UC identifies the deep-groove ball insert bearing with spherical outer race. The housing type letter follows: P = pillow block (flat base, 2-bolt, horizontal surface); F = square flange (4-bolt, vertical surface); FL = oval flange (2-bolt, vertical surface, compact). The number after (e.g. 205) identifies the series and bore: first digit is series (2 = 200 series, 3 = 300 series), next two digits × 5 give bore in mm. So UCP205 = pillow block housing, 200 series, 25 mm bore. How do I choose the right bore size? The bore must match the shaft diameter exactly. Measure the shaft with a micrometer at the seating location — not with a calliper, which lacks sufficient precision. The shaft tolerance for UC-series insert bearings is h6 or h9 (a light clearance fit). The mechanical locking (set screw or eccentric collar) provides the grip; the bore is not press-fitted. If the shaft measures 24.97–25.00 mm, select a 25 mm bore. Do not round up — a 30 mm bore on a 25 mm shaft will not lock correctly. What is the difference between a set screw bearing and an eccentric collar bearing? A set screw bearing locks to the shaft using grub screws threaded radially through the inner ring, bearing directly on the shaft surface. An eccentric collar bearing uses a separate asymmetric collar that cams inward as it rotates in the direction of shaft rotation, clamping the inner ring without indenting the shaft. Eccentric collar bearings provide higher clamping force and cause less shaft damage, but they only work on unidirectional drives — see the question on reversing drives below. Can I use an eccentric collar bearing on a reversing or bi-directional drive? No. Eccentric collar bearings rely on shaft rotation in one direction to maintain clamping force. If the shaft reverses, the collar uncams and releases. This happens even briefly — a gravity rollback on a stopped incline conveyor is enough. The result is immediate fretting and rapid bearing failure. For any drive where the shaft may turn in both directions, or where reversal is possible even momentarily, use set screw locking only, or specify an adapter sleeve arrangement. What grease should I use in a pillow block bearing? Most UC-series units are factory-filled with polyurea or lithium-complex NLGI 2 grease. For re-greasing, use the same thickener type as the factory fill, or confirm compatibility before mixing. Lithium-complex NLGI 2 is widely available and compatible with most factory fills. For washdown or food-grade applications, use an NSF H1-registered NLGI 2 grease (e.g. Kluber Paraliq GTE 703, Shell Cassida RLS 2). Never assume a grease is food-grade unless it carries a current NSF H1 registration. Can I mix greases in a pillow block bearing? Only if the greases are confirmed compatible by thickener type. Polyurea-thickened grease (factory fill in many brands) mixed with lithium-thickened grease produces an incompatible mixture that liquefies and provides no lubrication. If you do not know the factory fill type, purge the housing completely before adding new grease, or disassemble and clean before re-filling. Do not rely on the assumption that any two greases from reputable brands will be safe to mix — thickener type, not brand, determines compatibility. Can I mount a pillow block bearing with a vertical shaft? You can, but standard UCP units are not optimised for vertical shaft operation. Grease pools at the bottom of the housing under gravity, leaving the upper portion of the bearing under-lubricated. To manage this, shorten the re-greasing interval (at minimum halve the horizontal interval), check housing temperature regularly, and consider a bearing unit specifically rated for vertical operation if the application is critical or high-duty. Never rely on the standard re-greasing interval for a vertically mounted unit. What is a SUCP bearing? SUCP is a pillow block housed unit in which both the housing and the insert bearing are made from stainless steel. The S prefix means stainless throughout — not just a stainless insert in a standard cast housing. SUCP units are used in food and beverage processing, pharmaceutical manufacturing, marine, and any application where standard cast iron is unacceptable due to corrosion or contamination risk. For food-contact environments, pair the SUCP housing with an NSF H1-registered grease and FDA-approved seals. How often should I re-grease a pillow block bearing? In standard moderate-duty conditions (clean environment, ambient temperature, continuous operation), re-grease every 2,000–4,000 hours or every 3–6 months, whichever comes first. Halve this interval for high-temperature operation (>70°C housing surface), dirty or wet environments, or vertical shaft mounting. Always re-grease after washdown events or extended shutdown periods. When in doubt, more frequent small quantities of fresh grease are better than large quantities at long intervals. Should I replace pillow block bearings in pairs? Yes. When one bearing on a shaft reaches the end of its service life, the other bearing on the same shaft has operated the same number of hours under the same conditions. It is at the same wear point or close to it. Replacing only the failed bearing typically results in the second unit failing within a short period, causing a second unplanned shutdown. The cost of replacing both at the same time is almost always less than the cost of a second unplanned outage. Replace in pairs — or as a full set for multi-bearing shafts. Why is my pillow block bearing running hot? The most common causes are over-greasing (churning raises temperature), grease incompatibility (liquefied grease cannot carry heat), incorrect shaft fit (oversized shaft increases bearing preload), misalignment (angular load not accommodated by the spherical bore), or a failed seal allowing contamination. Check housing temperature with an infrared thermometer — normal operating temperature is typically 40–70°C above ambient. Anything above 80°C surface temperature warrants investigation. A sudden temperature rise without load change almost always indicates a lubrication problem or seal failure. AIMS Industrial stocks pillow block bearings, flanged housings, and take-up units across the full UC200 and UC300 series, including stainless and food-grade options. If you need help selecting the right housed unit for your application, contact our team — we can confirm bore, series, housing type, and locking method from your existing unit or shaft dimensions. Pair this with our GD&T Symbols Guide for the AS/NZS 1100 and ASME Y14.5 symbol reference. Cross-reference our Metric Bolt Torque Chart when tightening grade 8.8, 10.9 or 12.9 fasteners. People Also Ask — Pillow Block Bearings and Bearing Housings Q: What is a bearing housing and what does it do? A bearing housing is an enclosure that mounts a bearing to a structure — typically a frame, shaft support, or conveyor — and provides alignment, protection, and lubrication retention for the bearing inside. It simplifies installation by combining the bearing and mounting in a single unit. Q: What is the difference between a pillow block and a plummer block? A pillow block bearing is a compact, self-contained unit with an insert bearing pre-fitted into the housing, ready to mount on a flat surface. A plummer block is a more robust industrial-grade housing designed to accept a separate bearing and used in heavier-duty or more demanding applications. Q: What does the UC designation mean on an insert bearing? UC is the standard designation prefix for a deep-groove ball bearing insert in a wide-inner-ring housing unit. The digits following UC indicate the bore size and series — for example, UC205 indicates a 25mm bore in the 200 series housing. Q: What is the difference between the 200 and 300 series bearing insert? The 200 series bearing inserts have a lighter section and are suited to moderate-duty applications. The 300 series have a larger cross-section and higher load capacity for the same shaft size, suited to heavier-duty service where a 200 series insert would be marginal. Q: What bearing housing types are commonly available? Common housing types include pillow block (flat surface mounting, horizontal shaft), flanged units (two-bolt or four-bolt, for vertical surface or end plate mounting), and take-up units with an adjustable sliding base for tensioning a belt or chain drive. AIMS Industrial stocks o-rings and o-ring kits — see the full range for trade and industrial use. Need thrust bearings? Browse the AIMS range at thrust bearings.Q: What shaft tolerance should I use with a UC-series insert bearing? UC-series insert bearings with set screw or eccentric collar locking use a loose H7 bore tolerance, so the correct shaft tolerance is h6 or h9 — a clearance or light clearance fit. The shaft should slide into the bore with light hand pressure when the lock is released; the mechanical locking mechanism provides the grip, not an interference fit. Q: Why would I need a stainless SUCP housing instead of a standard cast iron pillow block? Standard cast iron housed units aren't acceptable in food, beverage or pharmaceutical processing — the cast iron can corrode and contaminate product, standard greases aren't food-contact approved, and the housing geometry traps product and resists cleaning. An SUCP unit has both a stainless insert bearing and a stainless housing throughout, available in 304 or 316 grade for saline, acidic or high-chloride environments. Q: What are the warning signs that a pillow block bearing needs replacing? Watch for grinding, rumbling or squealing noise from the housing; housing temperature consistently above 80°C or a sudden temperature rise; visible fretting or discolouration at the shaft contact point; any axial or radial shaft play when loaded by hand with the machine stopped; and increased vibration measured at the housing. Q: What shaft surface condition does a pillow block bearing need for correct locking? The shaft surface in the bearing seating area needs to be clean, smooth (Ra ≤1.6 µm) and within the correct diameter tolerance. A corroded, scored or undersize shaft will compromise the locking mechanism even if the bearing is fitted correctly — don't fit a new bearing onto a worn shaft without addressing the shaft surface first.
