Description

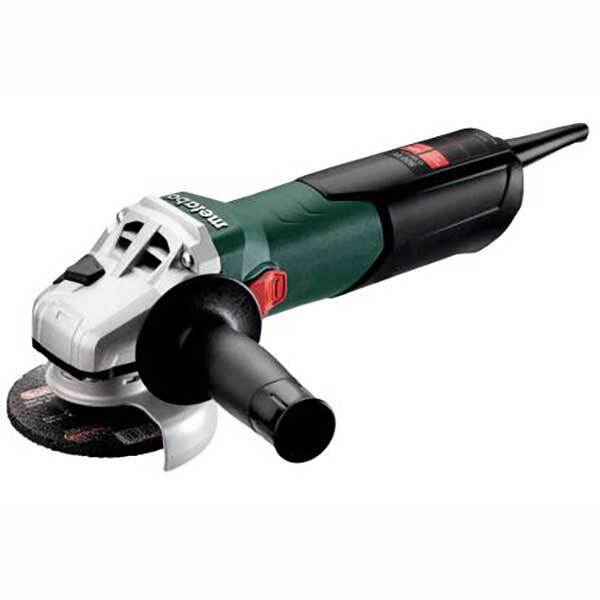

Metabo W 9-100 Angle Grinder

  • Low fatigue as never before: compact angle grinder with smallest handle circumference in its class for perfect ergonomics.
  • Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque.
  • Tool-free adjustable guard; twist-proof.
  • Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress.
  • Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting.
  • Auto-stop carbon brushes to protect the motor.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Inner support flange
  • Nut with two holes
  • Side handle
  • Flat-pin spanners

Technical Data

  • Disc-Ø: 100 mm // 4 "
  • Rated input power: 900W
  • No-load speed: 10500 rpm
  • Torque: 2.5 Nm / 22 in-lbs

Characteristics

Disc-Ø 100 mm // 4 "
Rated input power 900 W
Output power 550 W
No-load speed 10500 rpm
Revolutions at rated load 7500 rpm
Torque 2.5 Nm / 22 in-lbs
Spindle thread M10
Handle circumference 193 mm / 7.5594 "
Weight (without power cable) 2 kg / 4.4 lbs
Cable length 2.5 m / 8 ft

Vibration

Surface grinding 4.5 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 2.5 m/s²

Noise Emission

Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0174952
  • Brand Metabo
  • Model Number 600350190
  • Barcode Number 4007430244499
  • Type Angle Grinder
SKU: A0174952

Metabo 900W 100mm Angle Grinder, Safety Clutch - 600350190

Metabo W 9-100 Angle Grinder

$230.05
