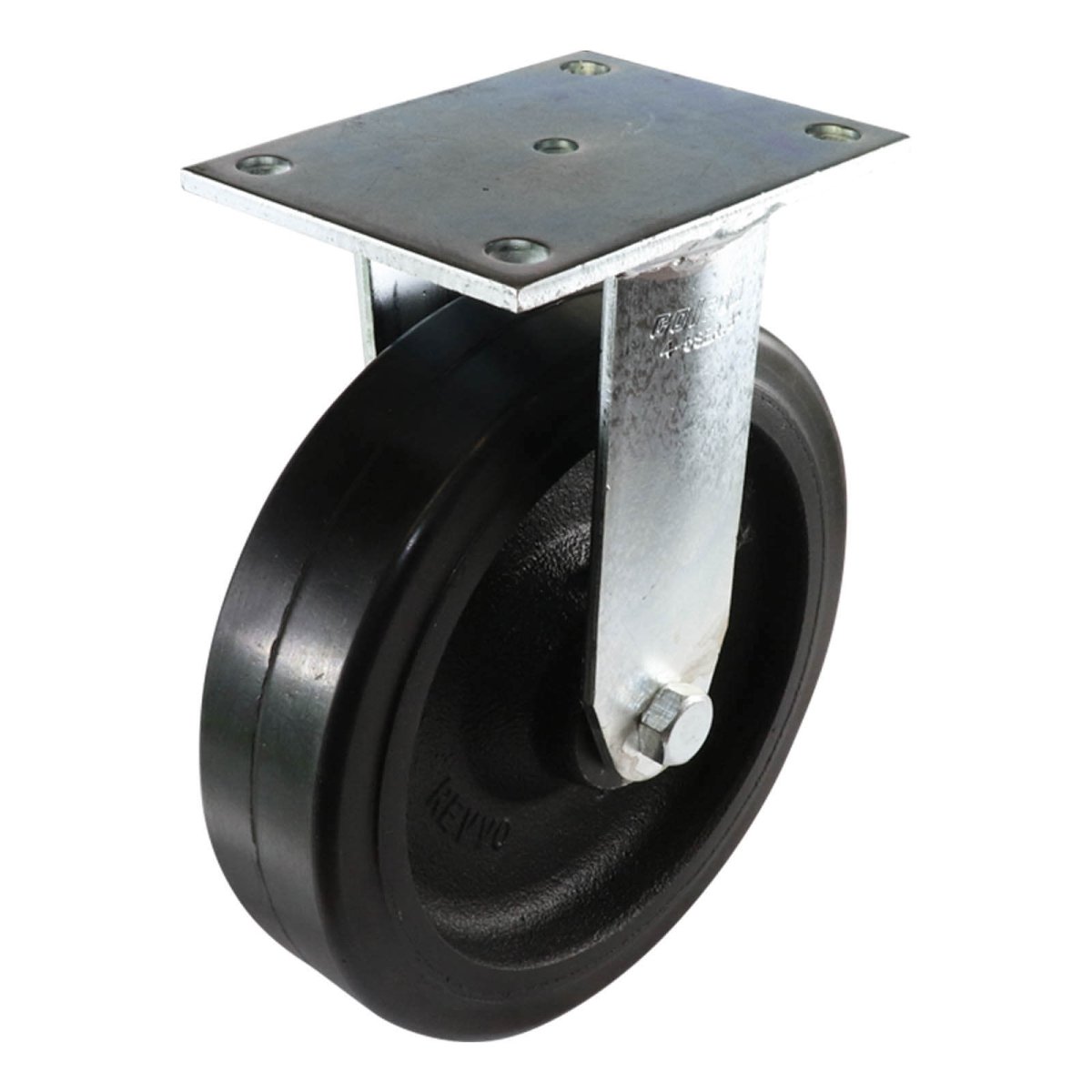

EasyRoll TG Series Fixed Plate Castor - Rubber Wheel, Black

The EasyRoll TG series fixed plate castor is fitted with a black rubber wheel and is available in a 200mm wheel diameter. Load capacity is 535kg per castor. The top plate is 130 x 105mm with hole centres of 105 x 80mm.

The TG series is suited to general and stock picking trolleys, dollies and stillages and catering and industrial laundry equipment. It has double headset bearings, hardened raceway.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Black rubber wheel in 200mm
• Load capacity 535kg per castor
• Double headset bearings with a hardened raceway for a smooth swivelling action
• Heavy duty fabricated construction withstands high impact loads
• Robust brake assembly

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Black rubber wheels: excellent shock absorbency, good load capacity, good floor protection, fair push effort and fair durability. It suits industrial areas and concrete. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
