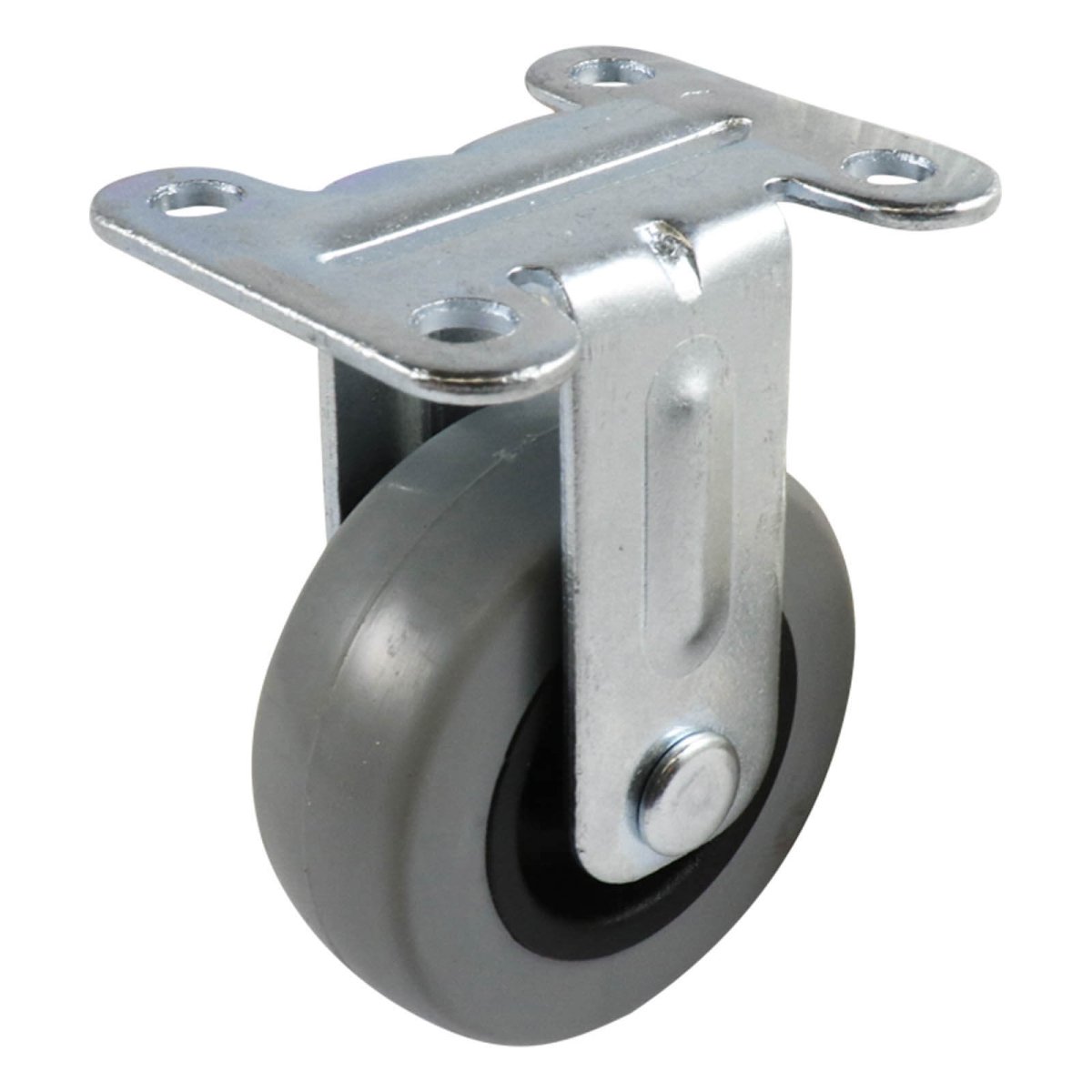

EasyRoll G1 Series Fixed Plate Castor - Rubber Wheel, Grey, 50 mm | G13A33G50

The EasyRoll G1 series fixed plate castor is fitted with a grey rubber wheel and is available in a 50 mm wheel diameter. Load capacity is 40 kg per castor. The top plate is 51 x 41 mm with hole centres of 38 x 27 mm.

The G1 series is suited to racks and display cabinets; sales counters; and home and office furniture. It has double headset bearing and a bright zinc finish.

Where this product is used

• Racks and display cabinets
• Sales counters
• Home and office furniture
• Kitchen island benches
• Medical furniture
• Chairs and beds

Features

• Grey rubber wheel in 50 mm
• Load capacity 40 kg per castor
• Light duty castor with a bright zinc finish
• Double headset bearing for strength and a smooth swivelling action
• Suited to shopfitting, display, furniture and equipment uses

Key specifications

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates grey rubber wheels as follows: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
