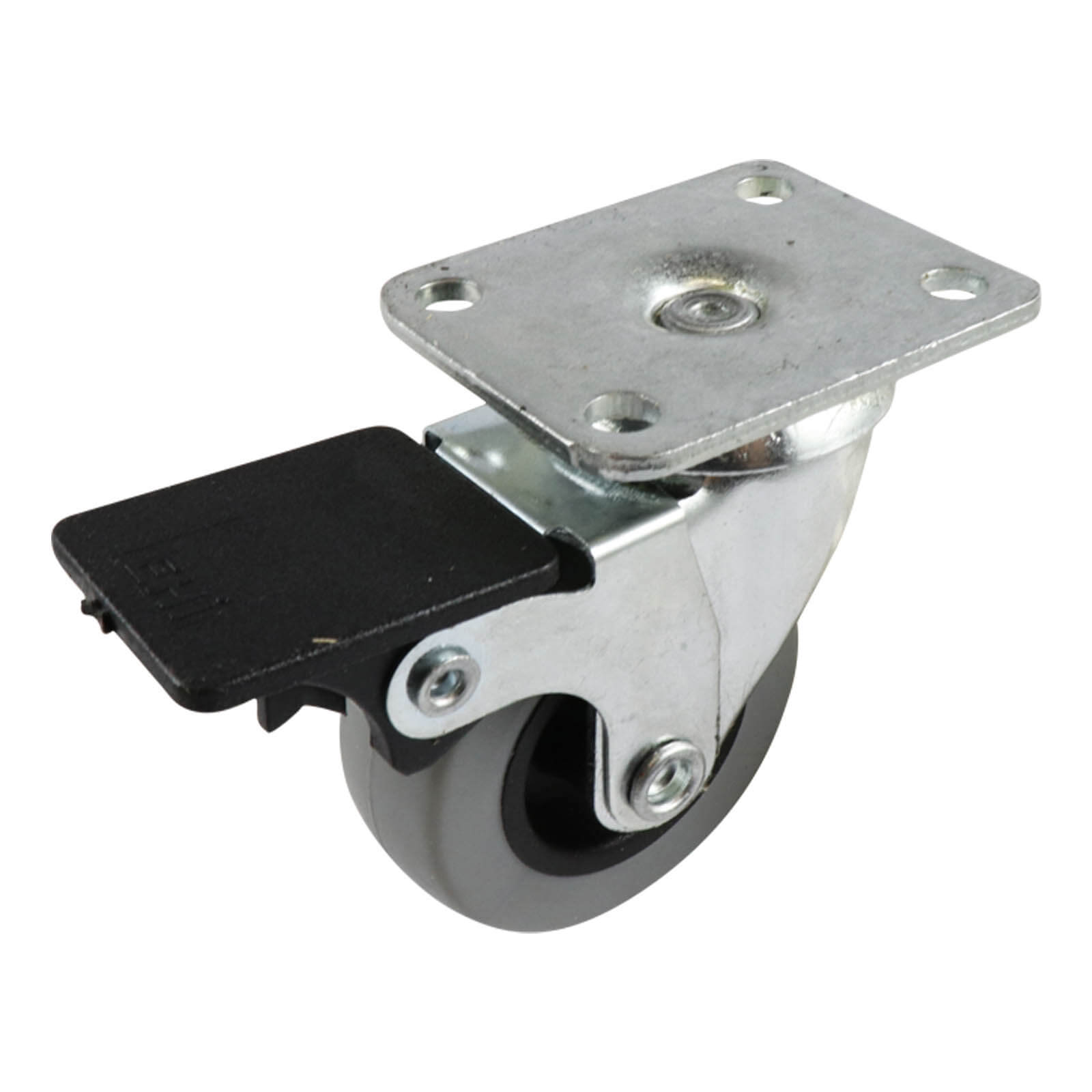

EasyRoll g1 series swivel plate castor with brake, 40 / 50
Available
The EasyRoll G1 series swivel plate castor with brake is fitted with a grey rubber wheel and is available in 50, 75 and 100mm wheel diameters. Load capacity is 40kg to 55kg per castor depending on the wheel size.
The G1 series is suited to racks and display cabinets, sales counters and home and office furniture. It has double headset bearing and a bright zinc finish.
Where this product is used
- Racks and display cabinets
- Sales counters
- Home and office furniture
- Kitchen island benches
- Medical furniture
- Chairs and beds
Features
- Grey rubber wheel in 50, 75 and 100mm
- Load capacity 40kg to 55kg per castor
- Total lock brake stops both swivel and wheel rotation
- Wheel brake stops the wheel rotating, and the castor can still swivel
- Light duty castor with a bright zinc finish
- Double headset bearing for strength and a smooth swivelling action
- Suited to shopfitting, display, furniture and equipment uses
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | G1 |
| Mounting | Swivel plate |
| Brake | Total lock / Wheel brake |
| Wheel | Grey Rubber wheel |
| Wheel diameter | 50, 75 and 100mm |
| Tread width | 18mm to 24mm |
| Load capacity per castor | 40kg to 55kg |
| Overall height | 66mm to 120mm |
| Bearings | Double headset bearing |
| Finish | Bright zinc |
Choosing the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. A wheel brake only stops the wheel from rotating, and the castor can still swivel freely. Grey rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll G1 Series Swivel Plate Castor - Rubber Wheel, Grey, EasyRoll G1 Series Fixed Plate Castor - Rubber Wheel, Grey, 50mm, EasyRoll G1 Series Fixed Plate Castor - Rubber Wheel, Grey, 75 to 100mm, EasyRoll G1 Series Swivel Bolt Hole Castor - Rubber Wheel, Grey.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) | Plate size (mm) | Hole centres (mm) |
|---|---|---|---|---|---|---|---|
| Wheel brake, 50mm | G12W33G50 | 50 | 18 | 40 | 66 | 51 x 41 | 38 x 27 |

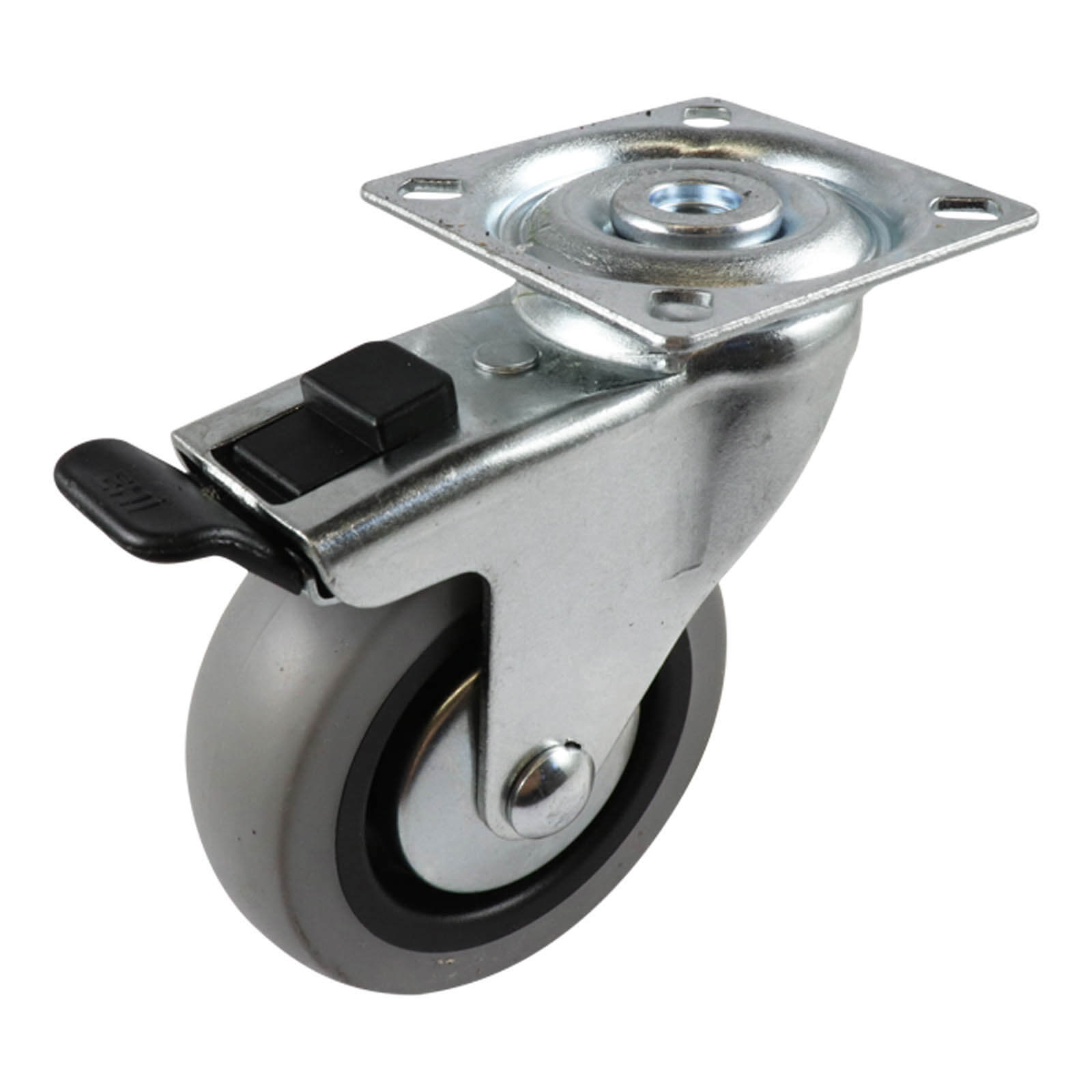

| Total lock, 75mm | G12T33G75 | 75 | 24 | 55 | 98 | 60 x 60 | 46 x 46 |

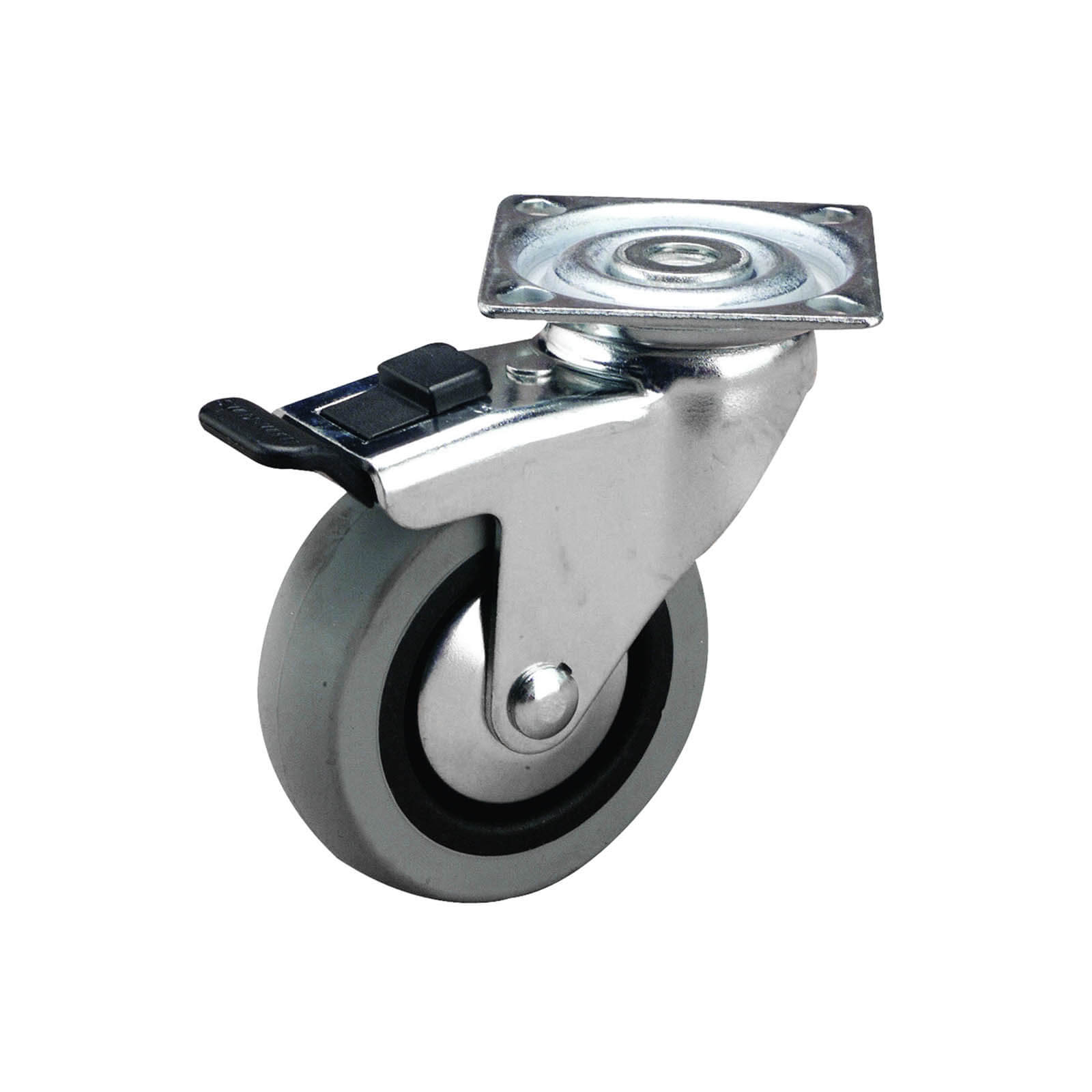

| Total lock, 100mm | G12T33G100 | 100 | 24 | 55 | 120 | 60 x 60 | 46 x 46 |
