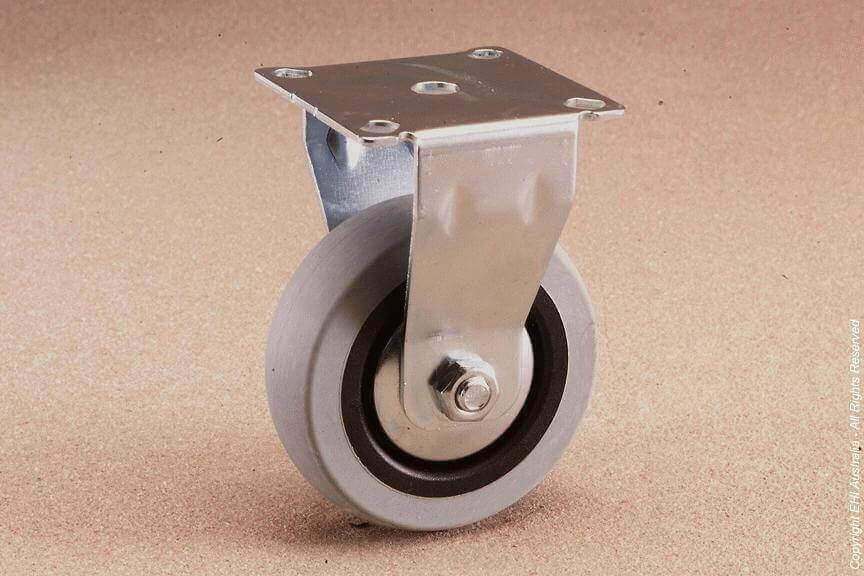

EasyRoll G1 Fixed Plate Castor, Grey Rubber 75 mm | G13A33G75
Available
The EasyRoll G1 series fixed plate castor is fitted with a grey rubber wheel and is available in 75 and 100 mm wheel diameters. Load capacity is 55 kg per castor. The top plate is 60 x 60 mm with hole centres of 46 x 46 mm.
The G1 series is suited to racks and display cabinets; sales counters; and home and office furniture. It has double headset bearing and a bright zinc finish.
Where this product is used
- Racks and display cabinets
- Sales counters
- Home and office furniture
- Kitchen island benches
- Medical furniture
- Chairs and beds
Features
- Grey rubber wheel in 75 and 100 mm
- Load capacity 55 kg per castor
- Light duty castor with a bright zinc finish
- Double headset bearing for strength and a smooth swivelling action
- Suited to shopfitting, display, furniture and equipment uses
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | G1 |
| Mounting | Fixed plate |
| Brake | No brake |
| Wheel | Grey Rubber wheel |
| Wheel diameter | 75 and 100 mm |
| Tread width | 24 mm |
| Load capacity per castor | 55 kg |
| Overall height | 98 mm to 120 mm |
| Plate size | 60 x 60 mm |
| Hole centres | 46 x 46 mm |
| Bearings | Double headset bearing |
| Finish | Bright zinc |
Options and part numbers
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| 75 mm | G13A33G75 | 75 | 24 | 55 | 98 |

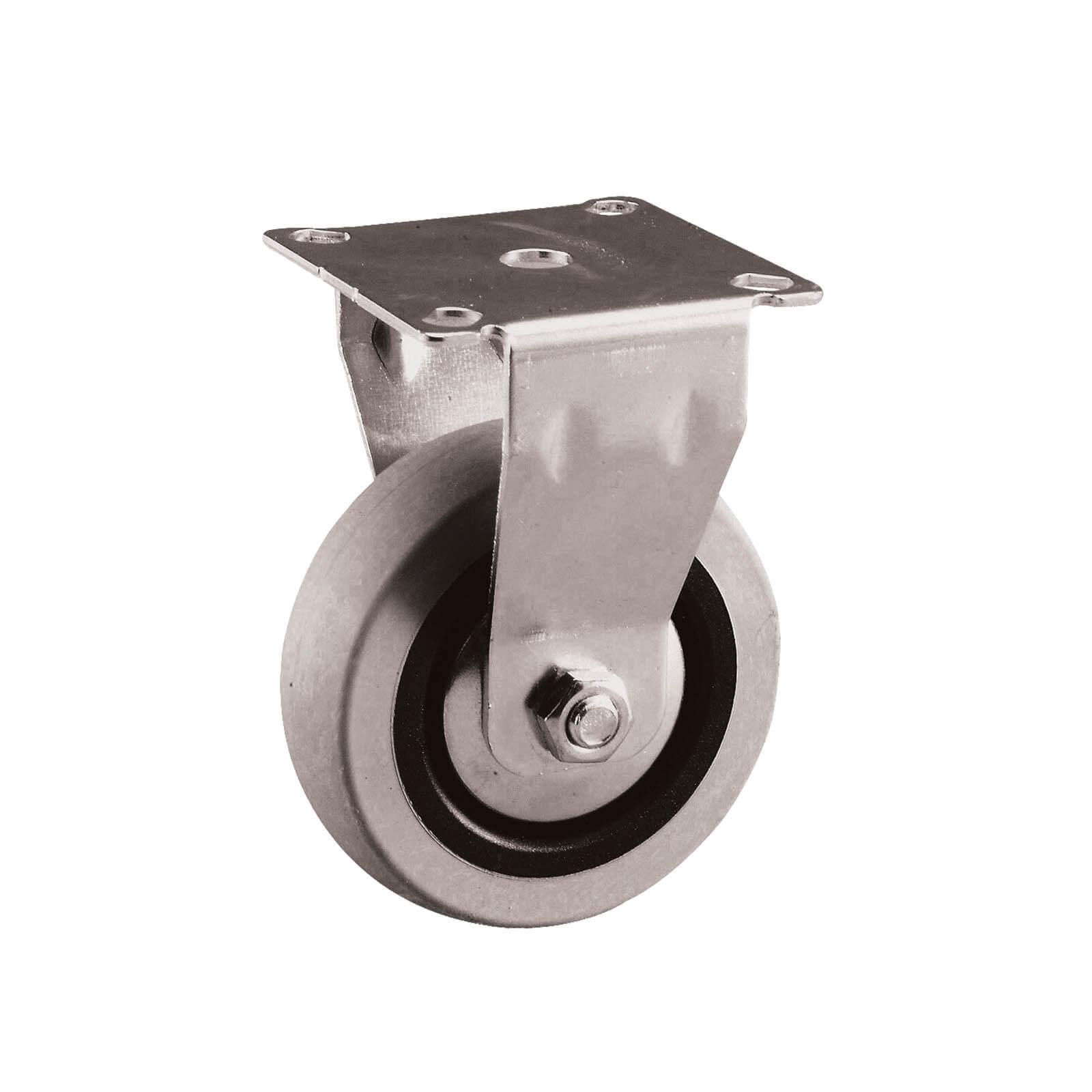

| 100 mm | G13A33G100 | 100 | 24 | 55 | 120 |
Selecting the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates grey rubber wheels as follows: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
Related products
See also EasyRoll G1 Series Swivel Bolt Hole Castor - Rubber Wheel, Grey, EasyRoll G1 Series Swivel Bolt Hole Castor with Brake - Rubber Wheel, Grey, EasyRoll G1 Series Swivel Plate Castor - Rubber Wheel, Grey and EasyRoll G1 Series Swivel Plate Castor with Brake - Rubber Wheel, Grey.
