***Size 24" is Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***
Resilient Seat Gate Valves
- Certified to AS/NZS:2638:2011
- AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
- Certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
- Sydney Water Approval - No. 200808
- Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
- South East Water SEW 12/0117
- Hunter Water Corporation HWC 2012-35/49/1
Max Working Temperature
40°C
Cold Working Pressure
1600kPa
Design
AS2638.2*
Flanged Drilling T/C
AS4087
Flanged Drilling T/E
AS2129
Socket Ends
AS2280
Coating Thickness
AS4158
Materials
ART
MATERIAL
Body
Ductile Iron (epoxy resin coating)
Bonnet
Ductile Iron (epoxy resin coating)
Wedge
Ductile Iron (bonded Rubber)
Stem
431 Stainless Steel
O'Ring
EPDM
Seal Bushing
EPDM
Specifications
Specifications
Specifications
Applications
Applications
Applications
- Water, sewage and neutral liquid applications.
- The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise.
- For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2.
- N.B DN50 and DN65 are not covered by AS2638.2.
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

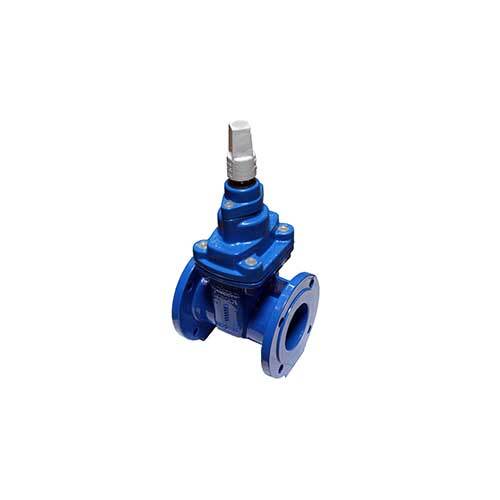

AAP 15" Resilient Gate Valve ACC w/ Spindle Cap Table-C VRSACC375C
AAP 15" Resilient Gate Valve ACC w/ Spindle Cap Table-C VRSACC375C
SKU: A0081415
Type: Resilient Gate Valve
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP Resilient Gate Valve ACC Spindle Cap Table-C by AAP is a Resilient Gate Valve with ductile iron (epoxy resin coating) body. It offers a 1600kPa cold working pressure and is suitable for neutral liquid applications.
