3/4 in (20 mm) Galvanised 45 Degree Bend, Male-Male | SBDF20G
Available
This AAP galvanised 45 degree male-male bend is a mild steel fitting with BSP threads. It is supplied in 8 sizes, 3/4 in (20 mm) to 4 in (100 mm).

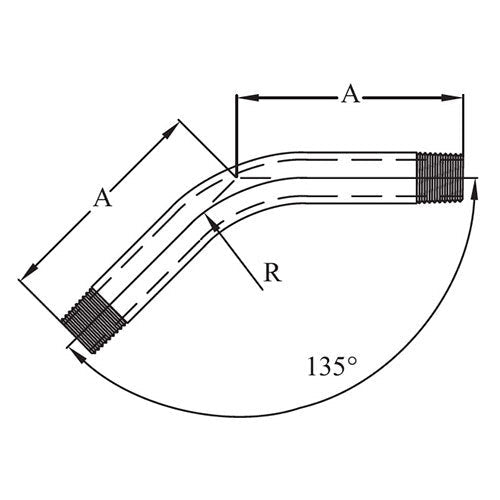

A bend changes the direction of a pipe run through an angle with a longer sweep than an elbow. This one turns it through 45 degrees and is threaded outside (male) at both ends. A is the length and R the radius, as lettered on the AAP drawing.
AAP states that its steel threaded pipe fittings are made to BS EN 10241:2000 (manufacturer-stated). It is galvanised. AAP does not state the galvanising process or coating thickness for this item. AAP states that all sizes of its fittings other than unions are sample tested to 5.2 MPa (manufacturer-stated). These are test pressures, not working pressures, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Changing the direction of threaded steel pipework by 45 degrees with a longer sweep
- Joining two female threaded fittings at a 45 degree offset
- General threaded steel pipework
Features
- 8 sizes, 3/4 in (20 mm) to 4 in (100 mm)
- Mild steel, galvanised, BS EN 10241:2000 (manufacturer-stated)
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised 45 degree male-male bend, mild steel |
| Finish | Galvanised |
| Material | Mild steel. AAP lists carbon 0.25 per cent maximum and tensile strength 320 N/mm2 minimum for its steel fittings (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread; AAP lists ISO 7 and AS 1722 Part 1 for its threads (manufacturer-stated) |
| Ends | Male (external) thread at both ends |
| Applicable standard (manufacturer-stated) | BS EN 10241:2000, steel threaded pipe fittings (manufacturer-stated) |
| Test pressure (manufacturer-stated) | Sample tested to 5.2 MPa |
| Sizes | 3/4 in (20 mm) to 4 in (100 mm) (8 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Radius R (mm) | Weight (kg) |
|---|---|---|---|---|
| 3/4 in (20 mm) | SBDF20G | 89 | 73 | 0.32 |
| 1 in (25 mm) | SBDF25G | 105 | 89 | 0.53 |
| 1-1/4 in (32 mm) | SBDF32G | 127 | 108 | 0.84 |
| 1-1/2 in (40 mm) | SBDF40G | 143 | 127 | 1.11 |
| 2 in (50 mm) | SBDF50G | 175 | 159 | 1.94 |
| 2-1/2 in (65 mm) | SBDF65G | 213 | 197 | 3.28 |
| 3 in (80 mm) | SBDF80G | 248 | 232 | 5.02 |
| 4 in (100 mm) | SBDF94G | 324 | 308 | 9.99 |
A is the length and R the radius, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. AAP also lists a size (SBDF15G) in this range, which AIMS does not currently list. Ask if you need one.
Related products
See also AAP Galvanised Steel 90 Degree Bend, Male-Male, AAP Galvanised Steel 45 Degree Elbow, Female-Female, AAP Galvanised Steel Barrel Nipple and AAP Galvanised Steel 90 Degree Elbow, Female-Female.
