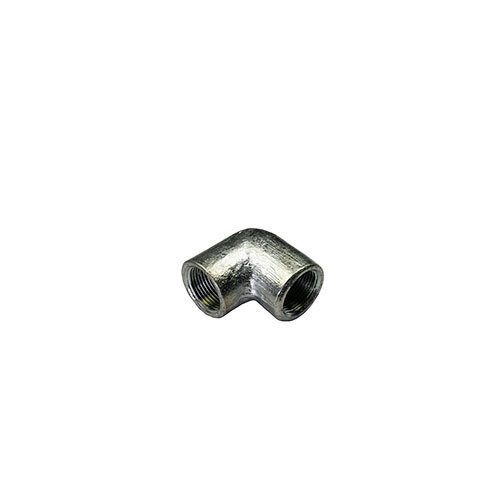

AAP Galvanised Steel 90 Degree Elbow, 1/8"

This AAP galvanised 90° female-female elbow is a mild steel fitting with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A 90° elbow turns a pipe run through a right angle. This one is threaded inside (female) at both ends, so it joins two male threaded pipes or fittings.

It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It is galvanised. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.

Where this product is used

• Turning threaded steel pipework through 90°
• Joining two male threaded pipes at a right angle
• General threaded steel pipework

Features

• 12 sizes, 1/8" (6mm) to 4" (100mm)
• Mild steel, galvanised, BS EN 10241:2000
• BSP threads
• Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1

Key specifications

Choosing the right option

Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
