AAP Galvanised Steel 90 Degree Elbow, 1/4", 40mm long, 8mm
Available

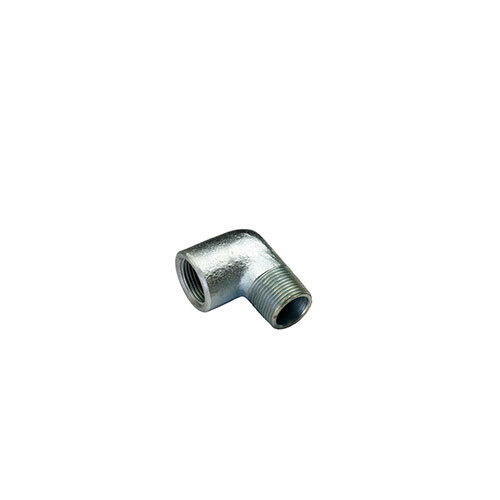

This AAP galvanised 90° male-female elbow is a mild steel fitting with BSP threads. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A 90° elbow turns a pipe run through a right angle. This one is threaded outside (male) at one end and inside (female) at the other, so it screws directly into a female port without a nipple.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It is galvanised. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Turning threaded steel pipework through 90° at a female port
- Connecting a female threaded port to a male threaded pipe at a right angle
- General threaded steel pipework
Features
- 11 sizes, 1/4" (8mm) to 4" (100mm)
- Mild steel, galvanised, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised 90° male-female elbow, mild steel |
| Finish | Galvanised |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread at one end, female (internal) thread at the other |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/4" (8mm) to 4" (100mm) (11 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Galvanised Steel 90 Degree Elbow, Female-Female, AAP Galvanised Steel 45 Degree Elbow, Female-Female, AAP Galvanised Steel Equal Tee, AAP Galvanised Steel Hexagon Nipple.
| Option | Part number | SKU |
|---|---|---|
| 1/4" / 40 / 8 | SEMF08G | A0076084 |
| 3/8" / 44 / 10 | SEMF10G | A0076085 |
| 1/2" / 58 / 15 | SEMF15G | A0076086 |
| 3/4" / 67 / 20 | SEMF20G | A0076087 |
| 1" / 70 / 25 | SEMF25G | A0076088 |
| 1-1/4" / 90 / 32 | SEMF32G | A0076089 |
| 2-1/2" / 97 / 40 | SEMF40G | A0076090 |
| 2" / 115 / 50 | SEMF50G | A0076091 |
| 2-1/2" / 150 / 65 | SEMF65G | A0076092 |
| 3" / 160 / 80 | SEMF80G | A0076093 |
| 4" / 187 / 100 | SEMF94G | A0076094 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Galvanised Steel 90 Degree Elbow, Male-Female: 1/4" / 40 / 8
SKU: A0076084 | Model: SEMF08G

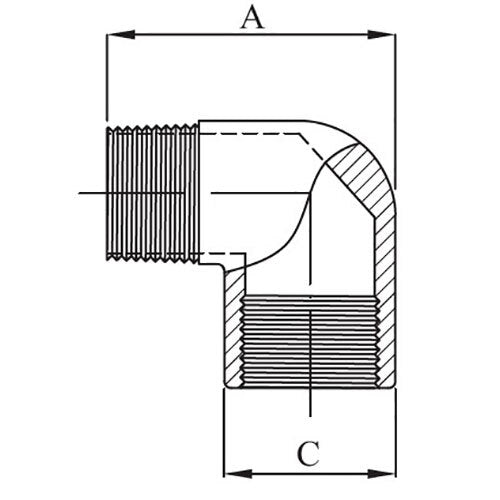

AAP SEMF08G: AAP Galvanised Steel 90 Degree Elbow, 1/4", 40mm long, 8mm. Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 40.
