AAP 304/304L SS Buttweld 90 Degree Elbow, 1"
Available

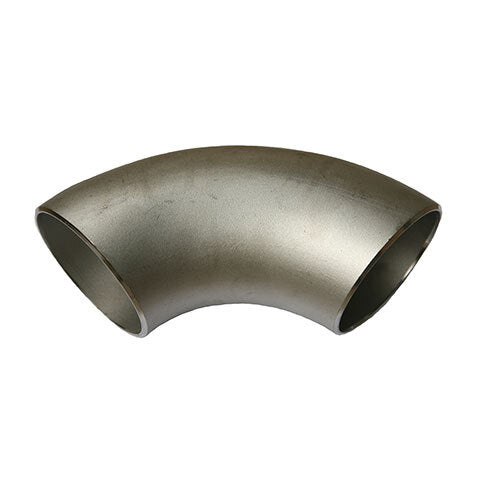

This AAP stainless steel buttweld 90° elbow is grade 304/304L stainless steel, Schedule 40S. It is supplied in 6 sizes, 1" (25mm) to 3" (80mm). A 90° elbow turns the pipe run through a right angle. It is welded end to end with the pipe, so the joint is a continuous weld instead of a thread or flange. This one is an L/R (long radius) elbow.
The stainless steel butt weld fittings are made from welded stainless steel pipe, which is made from 2B or HRAP stainless steel strip formed to shape and longitudinally welded.
Where this product is used
- Refinery, chemical production and petrochemical pipework in stainless steel
- Changing the direction of a welded stainless steel pipe run
- Process pipework that needs a welded, rust free joint
Features
- 6 sizes, 1" (25mm) to 3" (80mm)
- Grade 304/304L stainless steel, Sch 40S
- Wall thickness given for every size
- Made from welded stainless steel pipe
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld 90° elbow, grade 304/304L stainless steel |
| Schedule | Sch 40S (wall thickness to ASTM A312M) |
| Tolerances | ANSI B16.9 |
| Material | Grade 304/304L stainless steel |
| Construction | Made from welded stainless steel pipe (2B or HRAP strip, formed and longitudinally welded) |
| Ends | Butt weld ends |
| Sizes | 1" (25mm) to 3" (80mm) (6 sizes) |
Choosing the right option
Match the schedule and wall thickness to the pipe you are welding to.
Related AAP products: AAP 304/304L SS Buttweld Equal Tee, Sch 40S, AAP 304/304L SS Buttweld 90 Degree Elbow, Sch 10S.
| Option | Part number | SKU |
|---|---|---|
| 1" | SWE4030425 | A0080849 |
| 1-1/4" | SWE4030432 | A0080850 |
| 1-1/2" | SWE4030440 | A0080851 |
| 2" | SWE4030450 | A0080852 |
| 2-1/2" | SWE4030465 | A0080853 |
| 3" | SWE4030480 | A0080854 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 304/304L SS Buttweld 90 Degree Elbow, Sch 40S: 1"
SKU: A0080849 | Model: SWE4030425

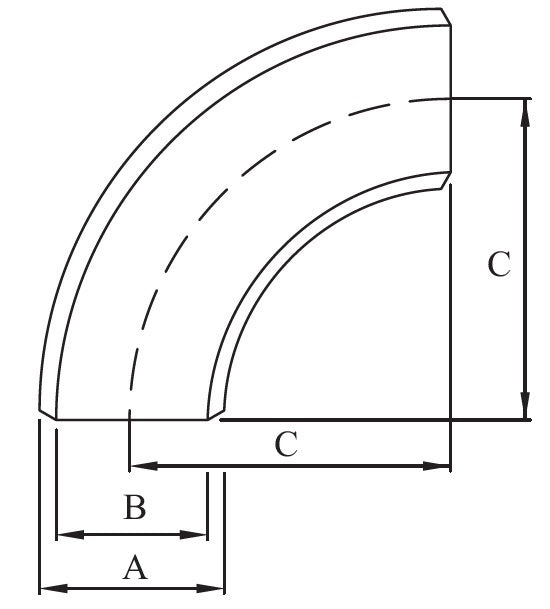

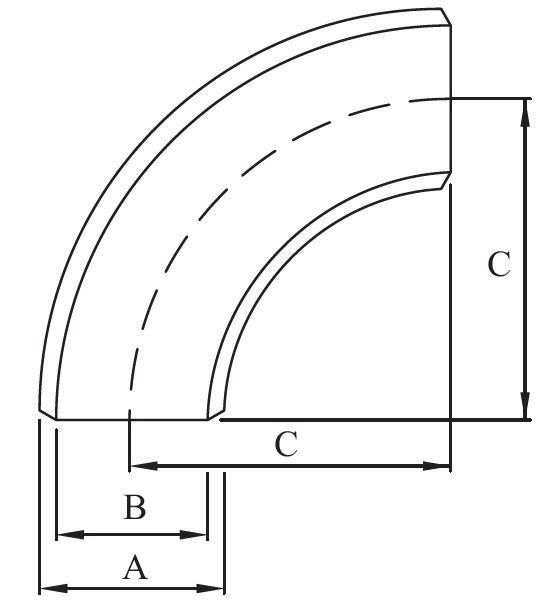

AAP SWE4030425: AAP 304/304L SS Buttweld 90 Degree Elbow, 1". Pipe Size (inch): 1. Pipe Size (mm): 25. Center To End ( C ): 38.
