1 in (25 mm) 304/304L Buttweld 90 Elbow, Sch 10S | SWE1030425
Available
This AAP stainless steel buttweld 90 degree elbow is grade 304/304L stainless steel, Schedule 10S. It is supplied in 9 sizes, 1 in (25 mm) to 8 in (200 mm).
A 90 degree elbow turns the pipe run through a right angle. It is welded end to end with the pipe, so the joint is a continuous weld instead of a thread or flange. AAP lists this one as an L/R (long radius) elbow.
AAP supplies its stainless steel butt weld fittings made from welded stainless steel pipe, which is made from 2B or HRAP stainless steel strip formed to shape and longitudinally welded. AAP lists high tensile strength, a robust build and rust free properties as the advantages of these fittings, and says they are most commonly used in refinery complexes, chemical production and petrochemical engineering (manufacturer-stated).
Where this product is used
- Refinery, chemical production and petrochemical pipework in stainless steel, as AAP lists for its stainless buttweld fittings
- Changing the direction of a welded stainless steel pipe run
- Process pipework that needs a welded, rust free joint
Features
- 9 sizes, 1 in (25 mm) to 8 in (200 mm)
- Grade 304/304L stainless steel, Sch 10S (manufacturer-stated)
- Wall thickness listed for every size
- Made from welded stainless steel pipe (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Buttweld 90 degree elbow, grade 304/304L stainless steel |
| Schedule (manufacturer-stated) | Sch 10S (wall thickness to ASTM A312M) |
| Tolerances (manufacturer-stated) | ANSI B16.9 |
| Material | Grade 304/304L stainless steel |
| Construction (manufacturer-stated) | Made from welded stainless steel pipe (2B or HRAP strip, formed and longitudinally welded) |
| Ends | Butt weld ends |
| Sizes | 1 in (25 mm) to 8 in (200 mm) (9 sizes) |
Options and part numbers
| Size | Part number | Outside dia. A (mm) | Inside dia. B (mm) | Centre to end C (mm) | Wall (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1 in (25 mm) | SWE1030425 | 33.4 | 27.9 | 38 | 2.77 | 0.1 |
| 1-1/4 in (32 mm) | SWE1030432 | 42.2 | 36.7 | 48 | 2.77 | 0.2 |
| 1-1/2 in (40 mm) | SWE1030440 | 48.3 | 42.8 | 57 | 2.77 | 0.3 |
| 2 in (50 mm) | SWE1030450 | 60.3 | 54.8 | 76 | 2.77 | 0.5 |
| 2-1/2 in (65 mm) | SWE1030465 | 73 | 66.9 | 95 | 3.05 | 0.9 |
| 3 in (80 mm) | SWE1030480 | 88.9 | 82.8 | 114 | 3.05 | 1.3 |
| 4 in (100 mm) | SWE1030494 | 114.3 | 108.2 | 152 | 3.05 | 2.1 |

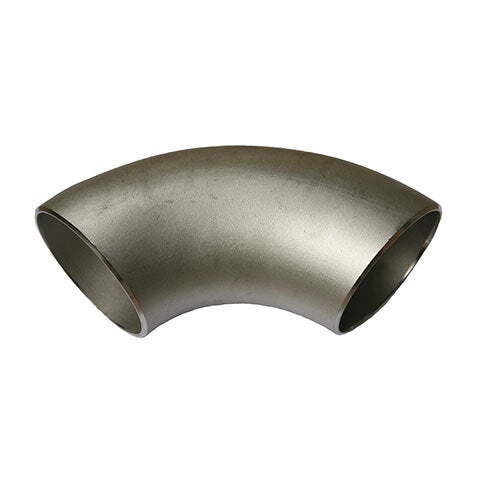

| 6 in (150 mm) | SWE1030496 | 168.3 | 161.5 | 229 | 3.4 | 5.5 |
| 8 in (200 mm) | SWE1030498 | 219.1 | 211.6 | 305 | 3.76 | 10.2 |

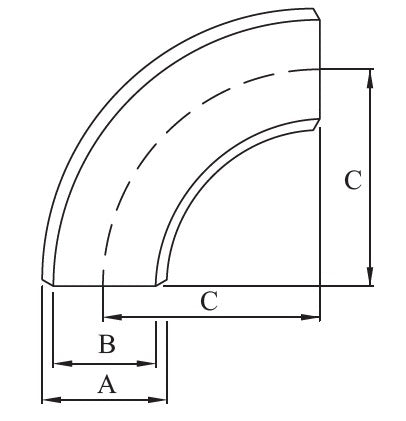

A, B and C are the dimensions lettered on the AAP drawing, in millimetres. A is the outside diameter and B the inside diameter at the weld end. Wall thickness is from the ASTM A312M table AAP lists for Sch 10S.
Selecting the right option
Match the schedule and wall thickness to the pipe you are welding to. AAP does not publish a pressure rating for the fittings themselves. AAP gives material specifications for 316L only, so none are shown for grade 304/304L.
Related products
See also AAP 304/304L SS Buttweld Equal Tee, Sch 10S and AAP 304/304L SS Buttweld 90 Degree Elbow, Sch 40S.
