AAP 3000lb Socket Weld 45 Degree Elbow, 1/4", 8mm

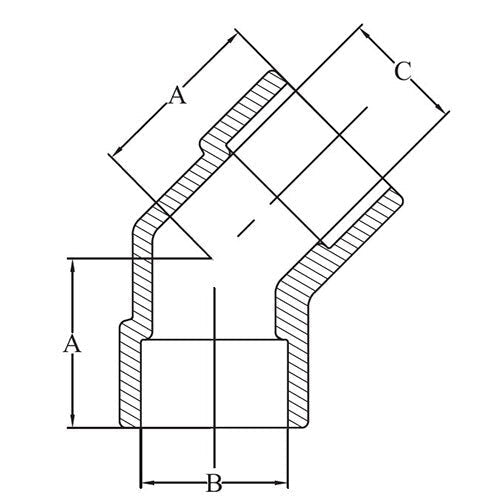

This AAP socket weld 45° elbow is a forged carbon steel fitting. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A 45° elbow changes the direction of a pipe run by 45°. This one has a socket at each end: the pipe is inserted into the socket and welded. A is the centre to end dimension, B the socket bore diameter and C the bore of the fitting.

The socket weld high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure socket weld pipework in carbon steel
• Offsetting or changing direction by 45° in welded pipework
• Easing a bend where a 90° turn is too tight

Features

• 11 sizes, 1/4" (8mm) to 4" (100mm)
• Forged carbon steel, ASME B16.11-2009
• 3000 lb rating
• Rating: 3000 lb, socket weld ends

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.
