AAP 3000lb Socket Weld Coupling, 1/4"

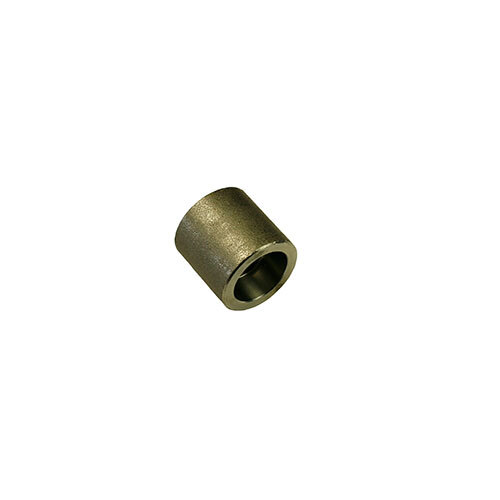

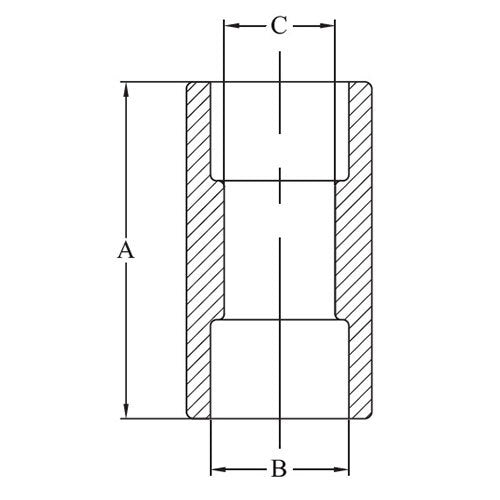

This AAP socket weld coupling is a forged carbon steel fitting. It is supplied in 10 sizes, 1/4" (8mm) to 4" (100mm). A coupling joins two pipes of the same size end to end. This one has a socket at each end for the pipe to be welded into. A is its length, B the socket bore diameter and C the bore of the fitting.

The socket weld high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure socket weld pipework in carbon steel
• Joining two welded pipes of the same size
• Extending a welded pipe run

Features

• 10 sizes, 1/4" (8mm) to 4" (100mm)
• 3000 lb rating
• Rating: 3000 lb, socket weld ends
• Material: Carbon steel forging (ASTM A105)

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.

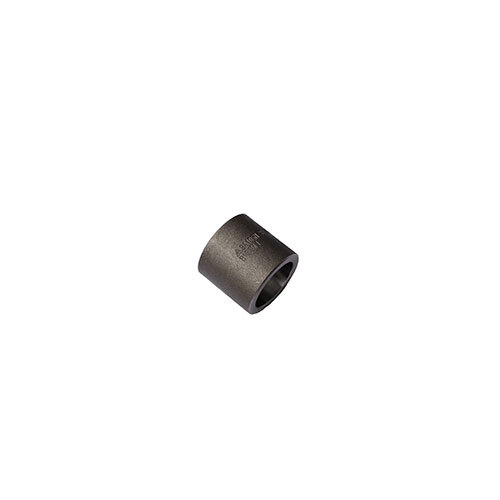

Related AAP products: AAP 3000lb Socket Weld Half Coupling, AAP 3000lb Socket Weld Reducing Coupling, AAP 3000lb Socket Weld Union, AAP 3000lb Socket Weld 90 Degree Elbow.
