AAP 3000lb Socket Weld Reducing Coupling, 1" x 1/2"

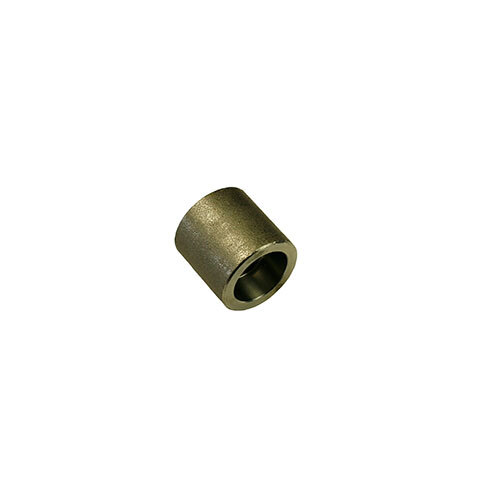

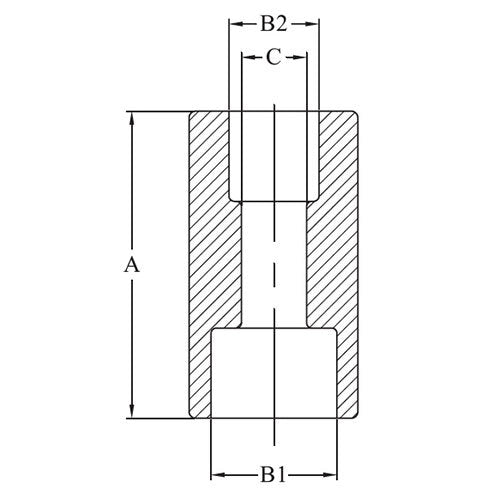

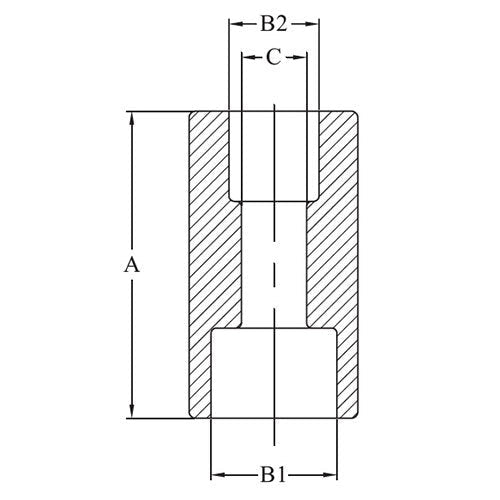

This AAP socket weld reducing coupling is a forged carbon steel fitting. It is supplied in 8 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm). A reducing coupling joins two pipes of different sizes. This one has a socket at each end for the pipe to be welded into. The size is given as the larger end first, then the smaller. A is its length, B1 and B2 the socket bores at the larger and smaller ends and C the bore of the fitting, as AAP's drawing letters them.

The socket weld high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure socket weld pipework in carbon steel
• Joining two welded pipes of different sizes
• Stepping a welded pipe run down in size

Features

• 8 sizes, 3/4 x 1/2" (20 x 15mm) to 2 x 1-1/2" (50 x 40mm)
• Forged carbon steel, ASME B16.11-2009
• 3000 lb rating
• Rating: 3000 lb, socket weld ends

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure. Sizes are given as the larger end first, then the smaller.
