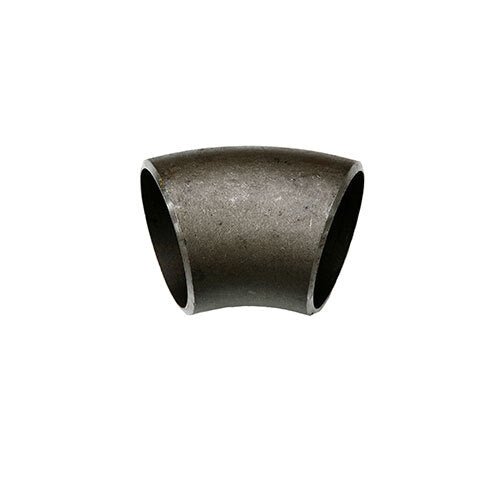

AAP Buttweld 45 Degree Long Radius Elbow, 2"

This AAP buttweld 45° long radius elbow is made to JIS B 2311 (SGP). It is supplied in 7 sizes, 2" (50mm) to 8" (200mm). A 45° elbow changes the direction of a pipe run by 45°. It is welded end to end with the pipe. It is made to JIS B 2311 (SGP).

The buttweld range is carbon alloy steel to ASTM A234 for use in various piping systems. Advantages of buttweld: a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.

Where this product is used

• Pipework where a welded, permanently leak proof joint is wanted
• Changing direction by 45° in welded pipework
• Offsets in pipework made to JIS B 2311 dimensions

Features

• 7 sizes, 2" (50mm) to 8" (200mm)
• Butt weld ends, JIS B 2311
• Wall thickness given for every size
• Weight class: SGP

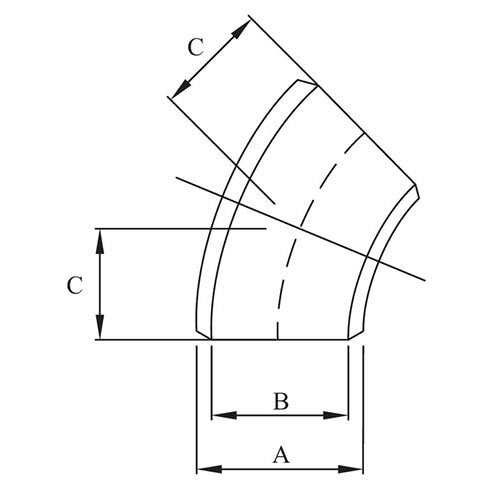

Key specifications

Choosing the right option

Match the wall thickness to the pipe you are welding to.
